Side 1/8

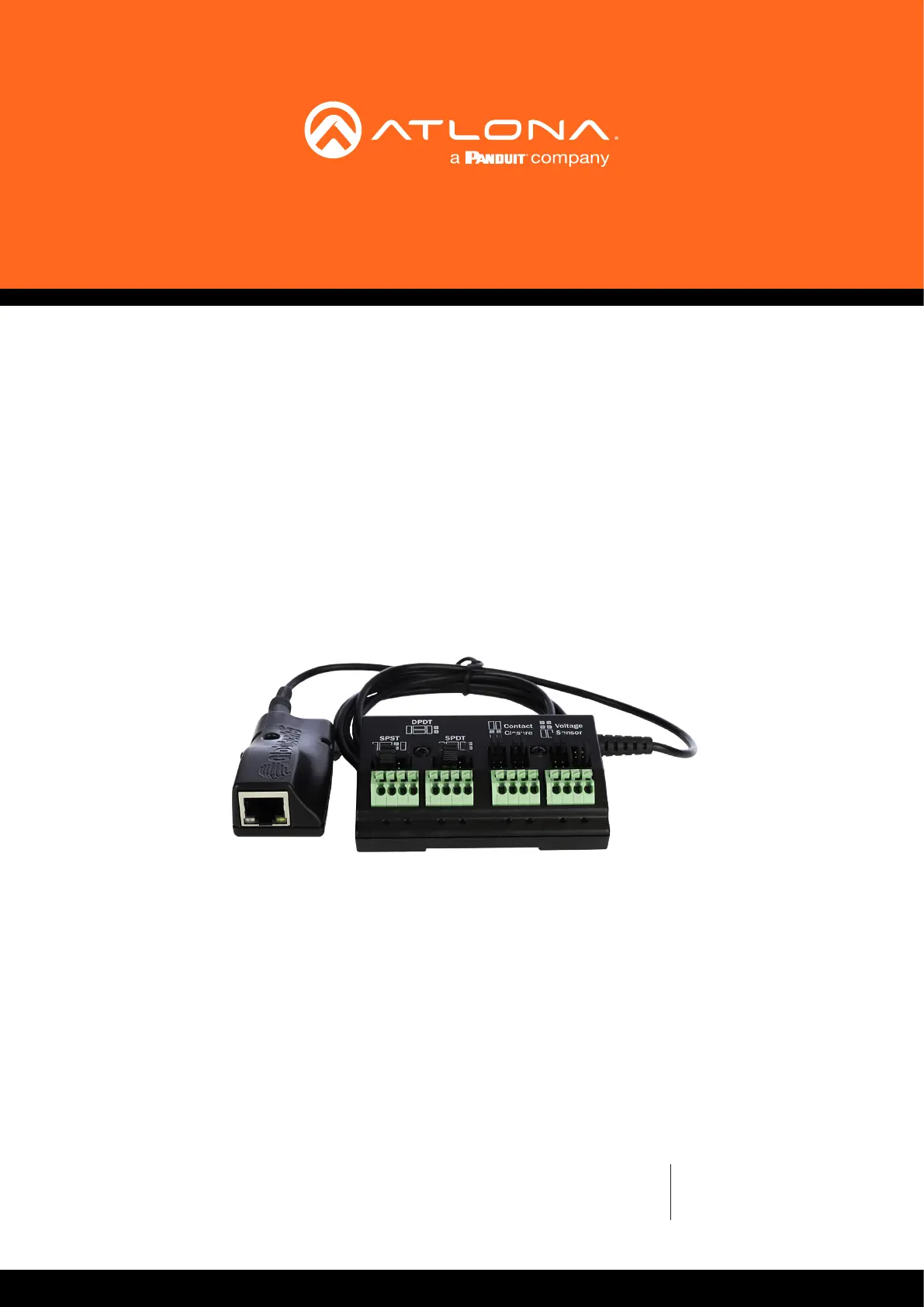

Installation Guide
AT-VCC-RELAY-KIT
1
IP to Relay Command Converter for Velocity Control System
AT-VCC-RELAY-KIT
The Atlona AT-VCC-RELAY-KIT is an accessory for the Atlona Velocity™ Control System that
provides conversion between IP control commands and relay / sensor signals. This Velocity
Control Converter is very compact and can be placed anywhere a device requires control and
is not IP-capable. The VCC-RELAY-KIT is remotely powered through Power over Ethernet (PoE),
or locally from a USB power source. The primary unit installs onto any surface via a convenient
mounting dock. A simple “click” locks it into place for a secure, reliable installation. The control
port module supports DIN rail installation, and features four relay outputs plus four sensor inputs.
The inputs and outputs are both congurable for various operating modes.
1 x AT-VCC
1 x AT-VCC-RELAY
Package Contents
Operating Notes
• The Velocity Command Converter must be on the same network as the Velocity Gateway
(AT-VGW-250) or it will be unable to sync for control.
• The AT-VCC-RELAY-KIT is PoE, to power the unit, simply plug it into a PoE compatible
network switch. If the network switch is not PoE capable, a PoE injector (purchased separately)
or USB can be used.
• All devices (AT-VCC, Velocity, AT-VTP, switchers, etc) should be set to static IPs or the
DHCP IP address reserved for each individual device.
IMPORTANT: Velocity Gateway (AT-VGW-250) must be set up before the AT-VCC-RELAY-
KIT is fully functional.
Installation Guide
AT-VCC-RELAY-KIT
2
Panel Description
SPST
DPDT
SPDT
Contact
Closure
Voltage
Sensor
1
1
1
2
SPST
SPST
22
3
3
4
4
5 6
1 Ethernet
Connect an Ethernet cable from this
port to the same network as the Velocity
Gateway.
2 USB
Optional - Connect a mini USB to USB
cable here for power.
3 3.5mm Port
Connect to a VCC relay connector.
4 Relay
Connect relay here, adjusting the jumpers
to set the unit to the correct mode.
5 Sensor
Connect sensor here, adjusting the
jumpers to the correct mode.
6 3.5mm Connector
Connect the 3.5mm connector to the
3.5mm port of the VCC.
Relay
The relay has 4 terminals which vary in function depending on how the jumpers above the ports
are set.
Place the jumpers as shown below, this can be done to a single connector or to both to create up
to 4 independent relays.
Single Pole, Single-Throw (SPST)
NOTE: Relays can only work up to a maximum of 24V and 500 mA current.
