Side 1/8

Installation Guide

AT-PRO5-101-SC-RX

4K HDR SDVoE Receiver

with Scaler for PRO5 Matrix Switcher

AT-PRO5-101-SC-RX

The Atlona AT-PRO5-101-SC-RX is an AV extension receiver with integrated video processing,

featuring SDVoE® 10GbE connectivity for receiving ultra-high denition video and audio from the

AT-PRO5-MX810 matrix switcher. Part of the PRO5 Series, the PRO5-101-SC-RX is HDCP 2.3

compliant, and supports 4K/60 4:4:4 and HDR at HDMI

® data rates up to 18 Gbps. It features an

RJ45 port, and an SFP+ cage for copper or ber optic connectivity to receive video, embedded

audio, Gigabit Ethernet, and RS-232 and IR control signals from the matrix switcher. The RJ45

port allows extension up to 330 feet (100 meters) over CAT6a UTP cable, along with PoE for

powering the PRO5-101-SC-RX, while the SFP+ cage can be used with a compatible ber

optic module to extend from 38 meters up to 10 kilometers over ber optic cable. This receiver

features high-performance video processing which includes 4K video upscaling and downscaling

with frame rate conversion, and video wall processing for 2x2, 1x3, and 2x4 display arrays. The

PRO5-101-SC-RX SDVoE scaling receiver, together with the PRO5-MX810 HDMI to SDVoE

matrix switcher, is ideal for a wide range of commercial applications requiring multi-zone AV

distribution with long-distance signal extension.

1 x AT-PRO5-101-SC-RX

1 x 3-pin captive screw connector

2 x 5-pin captive screw connectors

1 x Insert w/ QR code

Package Contents

Installation Guide

AT-PRO5-101-SC-RX

1 LED Indicators

Displays the current state of the unit:

• PWR - LED will be green when the

unit is powered.

• STATUS - LED will be solid green

when the signal is encrypted with

HDCP. If the signal is not encrypted,

the LED will blink green. If no video

signal is detected, then the LED will

be o.

• VIDEO - LED will be solid green

when video is passing through the

AT-PRO5-SC-RX.

• LINK - LED will be solid green when

a link has been established with AT-

PRO5-MX810.

• RJ45 - LED will be solid green when

the RJ45 port is being used.

• SPF+ - LED will be solid green when

and SFP+ module is being used.

2 RESET

Press this recessed button, using a

paperclip or other small object, to perform

a factory-reset on the unit.

3 SET

These DIP switches control the function

of both the and RJ45 SFP+ port. Refer to

DIP Switch Settings (page 4) for more

information.

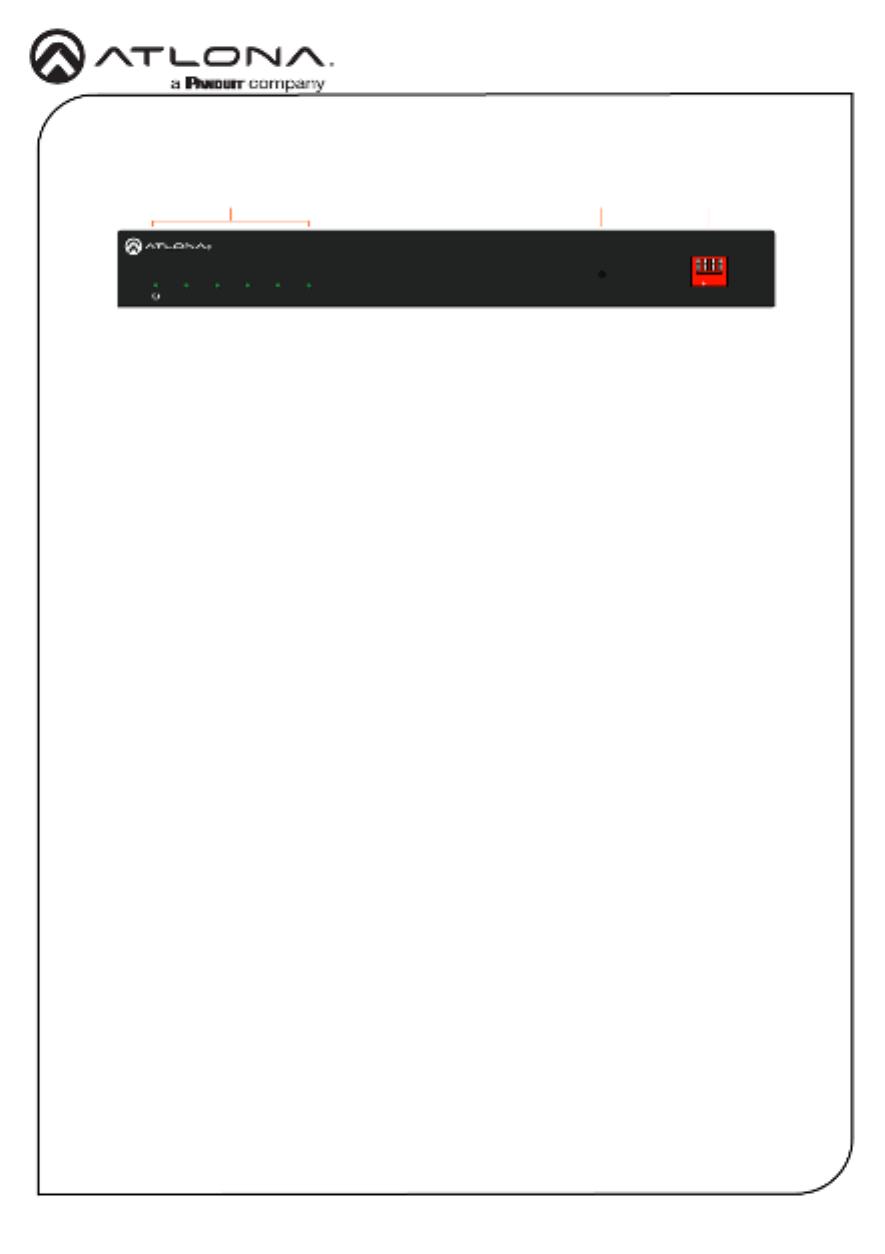

Front Panel Descriptions

SETRESETSTAT US VIDEO LINK RJ45 SFP+

AT-PRO5-101-SC-RX

2 3 4
