For Technical Support: www.panduit.com/resources/install_maintain.asp

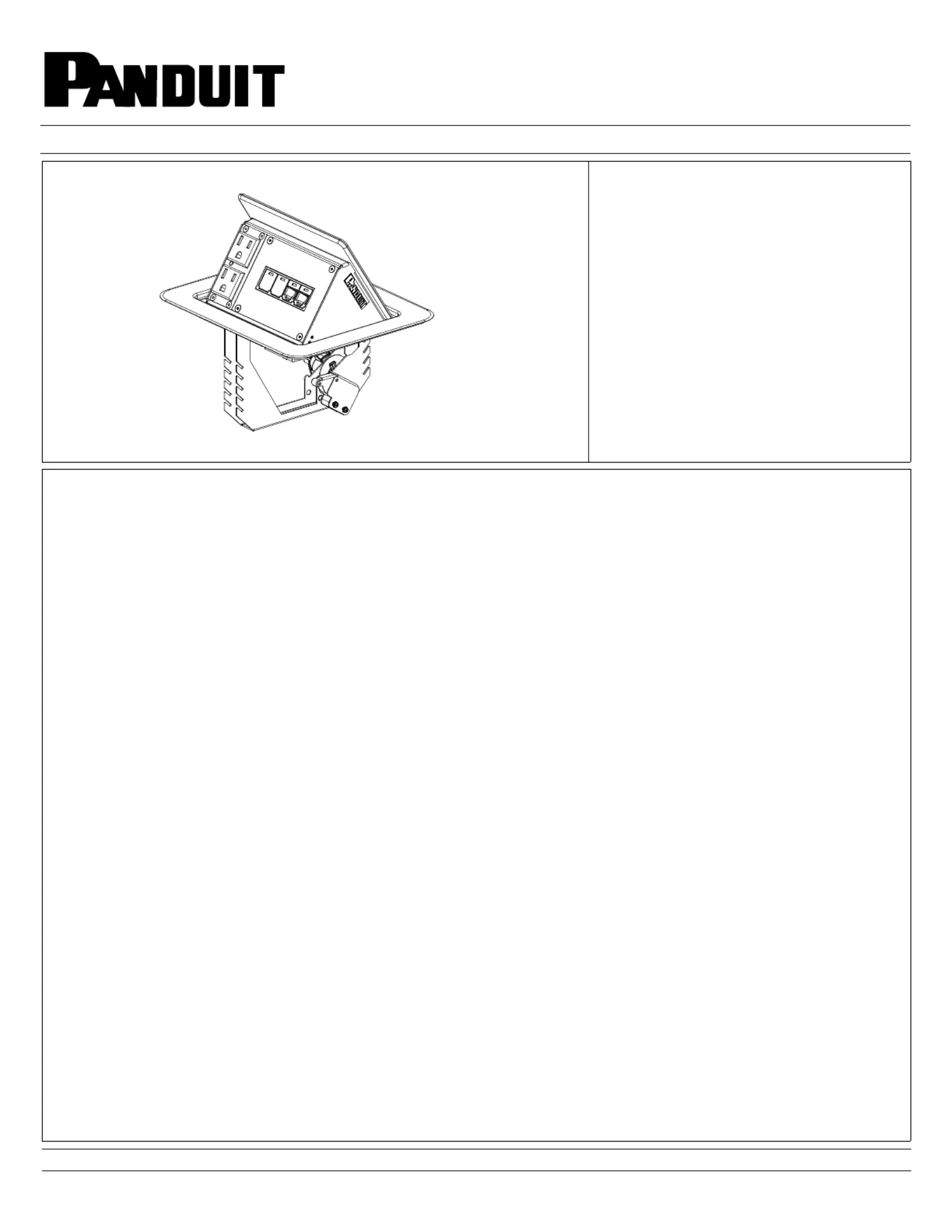

INSTALLATION INSTRUCTIONS

PN624

Page 1 of 4

Table Top Box, Tilt Up

Part Number(s): PND110

Parts Included:

(1) Table Top Box

(1) Plate

(1) Mini-Com Faceplate

(1) NetKey Faceplate

(2) Mounting Brackets

(4) Mounting Screws

(2) Table Securing Screws

(2) Wing Nuts

(2) Cable Clamps & Screws

(1) Fastener Tool

PRINT UNSCALED AT 100%

Installation Precautions

• For best results, place the Table Top Box, Tilt Up

in a dry area away from dust.

• To prevent fire or shock, do not expose this unit to

water or moisture. Do not place the unit in direct

sunlight, near heaters or heat-radiating

appliances, or near any liquid. Exposure to direct

sunlight, smoke, or steam can harm internal

components.

• Handle carefully; dropping or jarring can damage

the bezel.

• Never place fingers inside the opening on either

side of the unit. This action could cause injury due

to sharp edges inside.

• Do not place heavy objects on top of the Table

Top Box, Tilt Up. Do not use excessive force to

push down on the top of the unit.

• Disconnect the power cord to turn off the power.

This supplies power to the socket on the pop up

panel. The power outlet should be installed near

the equipment and be easily accessible.

• We recommend using wall outlets with a Ground

Fault Circuit Interrupter (GFCI) for maximum

protection.

• Install all cables according to the instructions

found herein. Do not force or pull any cable that is

attached to the Table Top Box, Tilt Up.

Cleaning

• Surfaces should be cleaned with a dry cloth. Never use

strong detergents or solvents such as alcohol or

thinner. Do not use a wet cloth or water to clean the

unit.

Operation

• The Table Top Box, Tilt Up will open easily when the

top is pressed down and then released.

• When the Table Top Box, Tilt Up is not in use, simply

press the top down until it is level with the surface of

the table and then release. The unit will remain hidden

until needed again.

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

PN624

Page 2 of 4

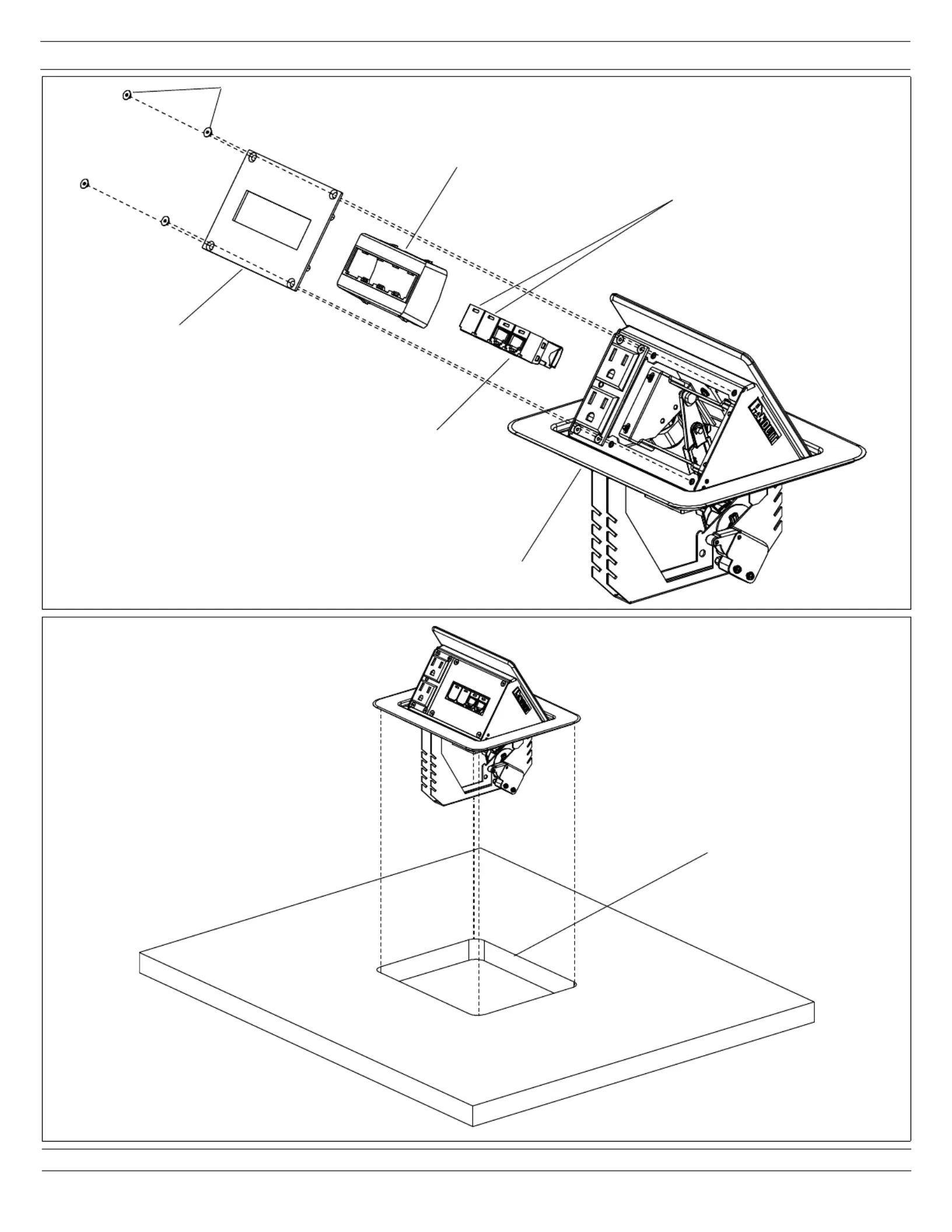

Mounting Screws

Plate

Faceplate

(NetKey or

Mini-com)

Modules

(Recommended

angled wire cap)

Note:

Modules in these

two positions have

limited clearance

(Recommended

angled wire cap)

Table Top Box,

Tilt Up

Use cut-out

template on

(page 4)

PRINT UNSCALED AT 100%
