TH106 400-106-001-D 12/8/05 1/3

This programmable thermostat can be used to control an electric

heating system such as an electric baseboard heater, a radiant ceil-

ing, a radiant floor, a convector, etc.

The thermostat cannot be used under the following conditions:

• The resistive load is greater than 16.7 A

• The resistive load is less than 2 A

• The system is driven by a contactor or relay (inductive load)

• The system is a central heating system

SUPPLIED PARTS:

• One (1) thermostat

• Two (2) 6-32 screws

• Two (2) solderless connectors

TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN

POWER PANEL TO AVOID ELECTRICAL SHOCK.

THE INSTALLATION MUST BE PERFORMED BY AN ELECTRI-

CIAN.

 All cables and connections must conform to the local electrical

code.

 Special CO/ALR solderless connectors must be used when con-

necting with aluminum conductors.

 Install the thermostat onto an electrical box.

 Install the thermostat about 5 feet high, on an inside wall facing

the heater.

 Avoid locations where there are air drafts (such as the top of a

staircase or an air outlet), dead air spots (such as behind a

door), or direct sunlight.

 Do not install the thermostat on a wall that conceals chimney or

stove pipes.

 The thermostat wires are not polarized; either wire can be con-

nected to the load or to the power supply.

NOTE: Always keep the thermostat's vents clean and unobstructed.

oConnect the thermostat wires to the line wires and to the load

wires using solderless connectors for copper wires.

pPush any excess wire back into the electrical box.

NOTE: If necessary, before re-installing the front component, config-

ure the thermostat (see section 3).

qReturn power to heating system.

nn 1.

oo 2.

Select the

operating mode

Set the time

Time and day

Temperature

Operating

mode icons

Skip a period

Program the

schedule Temperature

preset icons

Temperature

adjustment

buttons

Temperature

preset buttons

Heating power

indicator

Periods

Appears when the

setpoint is displayed

Set the day

2-wire installation

4-wire installation

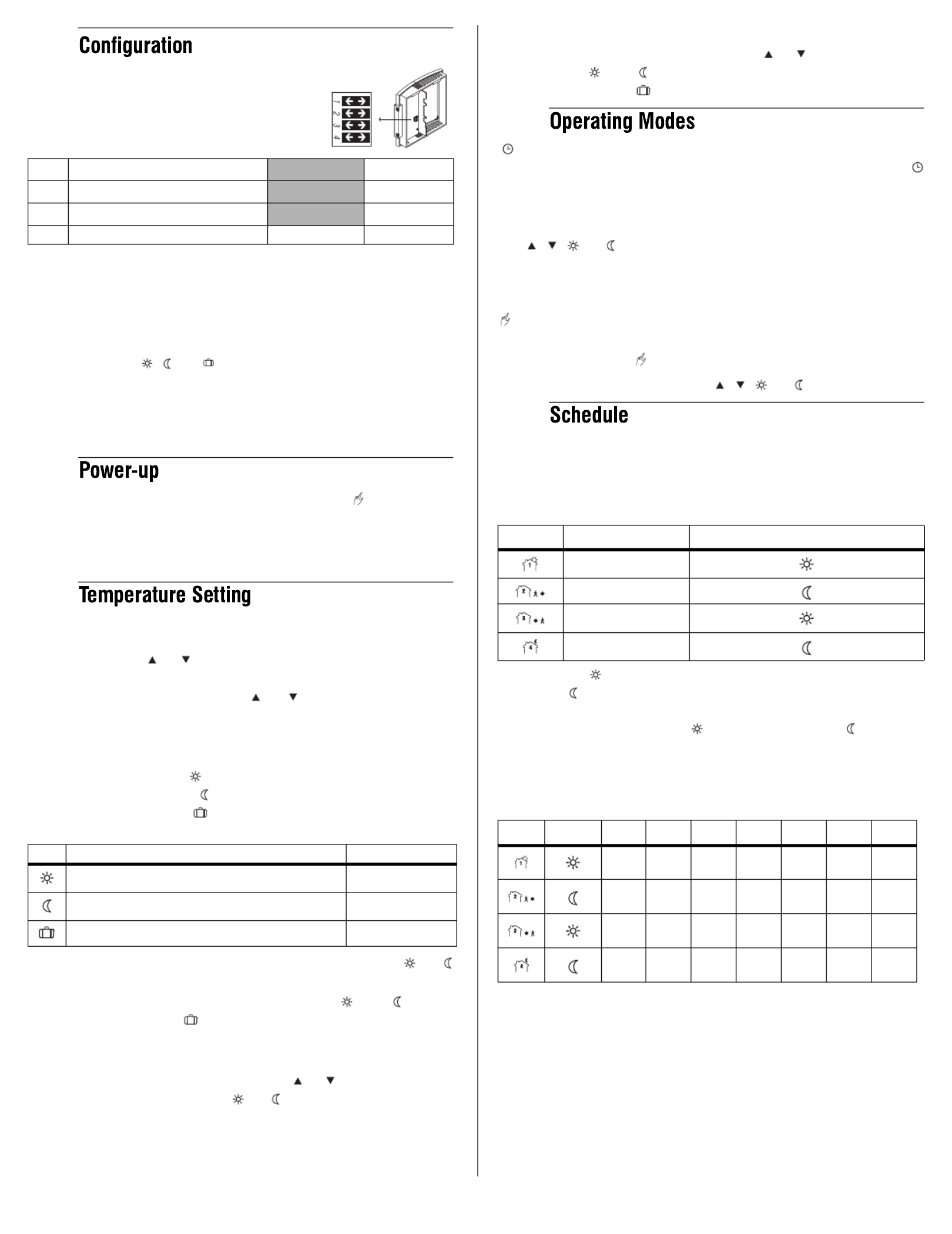

TH106 400-106-001-D 12/8/05 2/3

The configuration switches are on the back of

the thermostat. The factory settings are indi-

cated by the gray cells in the following table.

Upon power-up, the thermostat is in manual mode ( ) and displays

the actual (ambient) temperature.

nPress the Hour

and Min

buttons to set the

thermostat’s clock.

oPress the Day button to set the day.

Setpoint

The thermostat normally displays the actual temperature. To view the

setpoint, press the or button briefly. The setpoint will appear for

the next 5 seconds.

To change the setpoint, press the or button until the desired

temperature is displayed. To scroll faster, hold the button.

Using a preset temperature

The thermostat has 3 preset temperatures:

 Comfort temperature

 Economy temperature

 Vacation temperature

• To use the Comfort or Economy temperature, press the or

button respectively. The corresponding icon will be displayed.

• To use the Vacation temperature, press both and buttons

simultaneously. The icon will be displayed.

Storing a preset temperature

To store the Comfort or Economy temperature:

Set the desired temperature using the or button. Press and

hold the appropriate button ( or ) for approximately 3 sec-

onds until the corresponding icon is displayed. Press the Mode

button.

To store the Vacation temperature:

Set the desired temperature using the or button. Press and

hold both and buttons simultaneously for approximately 3

seconds until the icon is displayed. Press the Mode button.

Automatic - The temperature is set according to the programmed

schedule. To place the thermostat in this mode, press Mode until

is displayed. The icons of the current period and preset temperature

are also displayed.

Temporary Bypass: If you modify the setpoint (by pressing the

, , or button) when the thermostat is in automatic

mode, the new setpoint will be used until the end of the current

period. When the next period starts, the temperature set for that

period becomes the new setpoint.

Manual - The programmed schedule is

not used. The temperature

must be set manually. To place the thermostat in this mode:

nPress Mode until is displayed.

oSet the temperature using the , , or button.

The schedule consists of 4 periods per day which represents a typi-

cal weekday. You can program the thermostat to skip the periods that

do not apply to your situation. For example, you can skip periods 2

and 3 for the weekend.

The Comfort ( ) temperature is used in periods 1 and 3 and the

Economy ( ) temperature is used in periods 2 and 4. For example,

when the period changes from 1 to 2, the setpoint automatically

changes from Comfort setting ( ) to Economy setting ( ).

You can have a different program for each day of the week; i.e., each

period can start at different time for each day of the week. The

thermostat has been programmed with the following schedule.

To modify the schedule:

nPress Pgm to access the programming mode. Period 1 is

selected.

oPress Day to select the day to prog

ram (hold for 3 seconds to

select the entire week).

pPress Hour and Min to set the start time of the selected period,

or press Clear if you want to skip the period (--:-- is displayed).

qPress Pgm to select another period, or press Day to select

another day. Then repeat step 3.

SW1 Early Start a

a. Early Start can be used in Automatic mode only. When this func-

tion is enabled, the thermostat calculates the optimal time to start

heating in order to obtain the desired temperature by the set time.

The thermostat re-assesses the start time daily based on the pre-

vious day’s performance.

Off On

SW2 Temperature / time format b

b. If you change the temperature display format, the preset

temperatures ( , and ) will return to their default settings.

°C / 24-hour °F / 12-hour

SW3 Cycle length c

c. 15-second cycles should be selected in most cases as it provides

better temperature control. 15-minute cycles must be selected if

you have a fan-equipped heater or if 15-second cycles causes

light flickering (especially in rural regions).

15 seconds 15 minutes

SW4 Not used - -

qq 4.

rr 5.

Icon Intended use Factory setting

Comfort (when at home) 21°C (70°F)

Economy (when asleep or away from home) 16.5°C (62°F)

Vacation (during prolonged absence) 10°C (50°F)

ss 6.

tt 7.

Period Description Associated temperature preset

Wake

Leave

Return

Sleep

Period Setting MO TU WE TH FR SA SU

6:00

8:00

AM --:-- --:--

6:00

PM --:-- --:--

10:00
