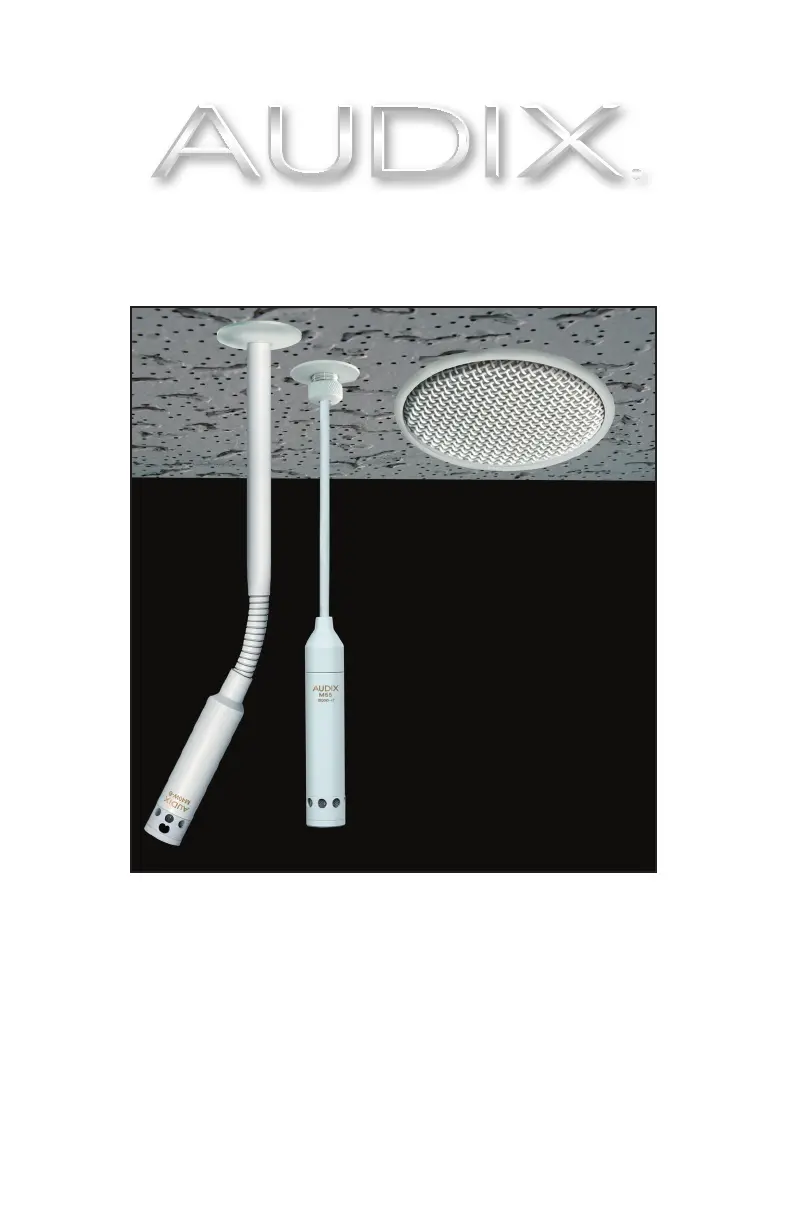

AUDIX M55

INSTALLATION GUIDE

Thank you for choosing Audix! Our products are designed to provide you with many

years of reliable service. Please read this manual before using the system

for optimal installation and operation.

M55 EXPLODED VIEW:

M55 JUNCTION BOX ASSEMBLY

M55

CEILING TILE

WITH 5/8″ HOLE

ADJUSTMENT

NUT TIGHTENS

BY HAND

JBM55 PLENUM

RATED BOX

MALE &

FEMALE

PHOENIX

CONNECTORS

BRASS

STRAIN

RELIEF FOR

OUTER CABLE

SLOTTED

MOUNTING

NUT

• DRILL 5/8 INCH HOLE IN THE CEILING TILE.

• OPEN JMB55 BOX LID AND PLACE BOX ON TOP OF 5/8 INCH HOLE IN THE CEILING TILE. (SEE #1)

• INSERT M55 THREADED CEILING MOUNT THROUGH CEILING TILE AND INTO THE JBM55 BOX

• SECURELY TIGHTEN THE KNURLED NUT. (SEE #2)

• INSERT PLENUM WIRE (BELDEN 9451P OR 82761 OR EQUIVALENT THROUGH STRAIN RELIEF

(SEE #3) AND TERMINATE TO MATING PHOENIX CONNECTOR. (SEE #4 AND #5)

• TIGHTEN STRAIN RELIEF AND CLOSE LID OF JMB55 BOX. (SEE #5)

• LOOSEN M55 KNURLED NUT, ADJUST CABLE TO APPROXIMATE DESIRED LENGTH, AND TIGHTEN

NUT. (SEE #6)

• TIGHTEN THE PLENUM CABLE STRAIN RELIEF NUT AND ARRANGE EXCESS M55 WIRE IN BOX

AND CLOSE LID.(SEE #7)

• FINE ADJUSTMENTS TO MICROPHONE HEIGHT CAN BE MADE EASILY FROM BELOW CEILING BY

LOOSENING THE M55 KNURLED NUT, LENGTHENING/SHORTENING WIRE AND RETIGHTENING

KNURLED NUT. (SEE #8)

BOTTOM VIEW OF

JUNCTION BOX
