Technical Specifications
1
1×2 12G-SDI RECLOCKING DISTRIBUTION AMPLIFIE
SD1121-12G
Connections
Standards
Power
Physical Specifications
71 41 23mm× ×
Gross Weight
168g
Net Weight
500g
SDI Format Support
(SD) 625i 50/525i 59.94
(HD) 1280×720p 60/59.94/50 /30/29.97/25/24/23.98
(HD) 1920×1080p 30/29.97/25/24/23.98
(HD) 1920×1080PsF 30/29.97/25/24/23.98
(HD) 1920×1080i 60/59.94/50
(2K) 2048×1080p 30/29.97/25/24/23.98
(2K) 2048×1080PsF 30/29.97/25/24/23.98
(2K) 2048×1080 i 60/59.94/50
(3G) 1920×1080p 60/59.94/50
(6G) 1920×1080p/2048×1080p 47.95/48/50/59.94/60
(6G) 3840x2160p/4096×2160p 23.98/24/25/29.97/30
(12G) 3840x2160p/4096×2160p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
SDI Compliance
SMPTE 259M, SMPTE 292M,
SMPTE 296M,
SMPTE 424M, SMPTE 425M,
SMPTE ST-2081, SMPTE ST-2082
SMPTE 274M
ITU-R BT.656, ITU-R BT.601
DVB-ASI
SDI Color Space and Precision
RGB 4:4:4 10bit/12bit
YUV 4:2:2 10bit/12bit
YUV 4:4:4 10bit/12bit
XYZ 4:4:4 12bit
Power Supply
Micro USB
Voltage Range
USB 5-5.5V
Power Consumption
1.5W (Max)

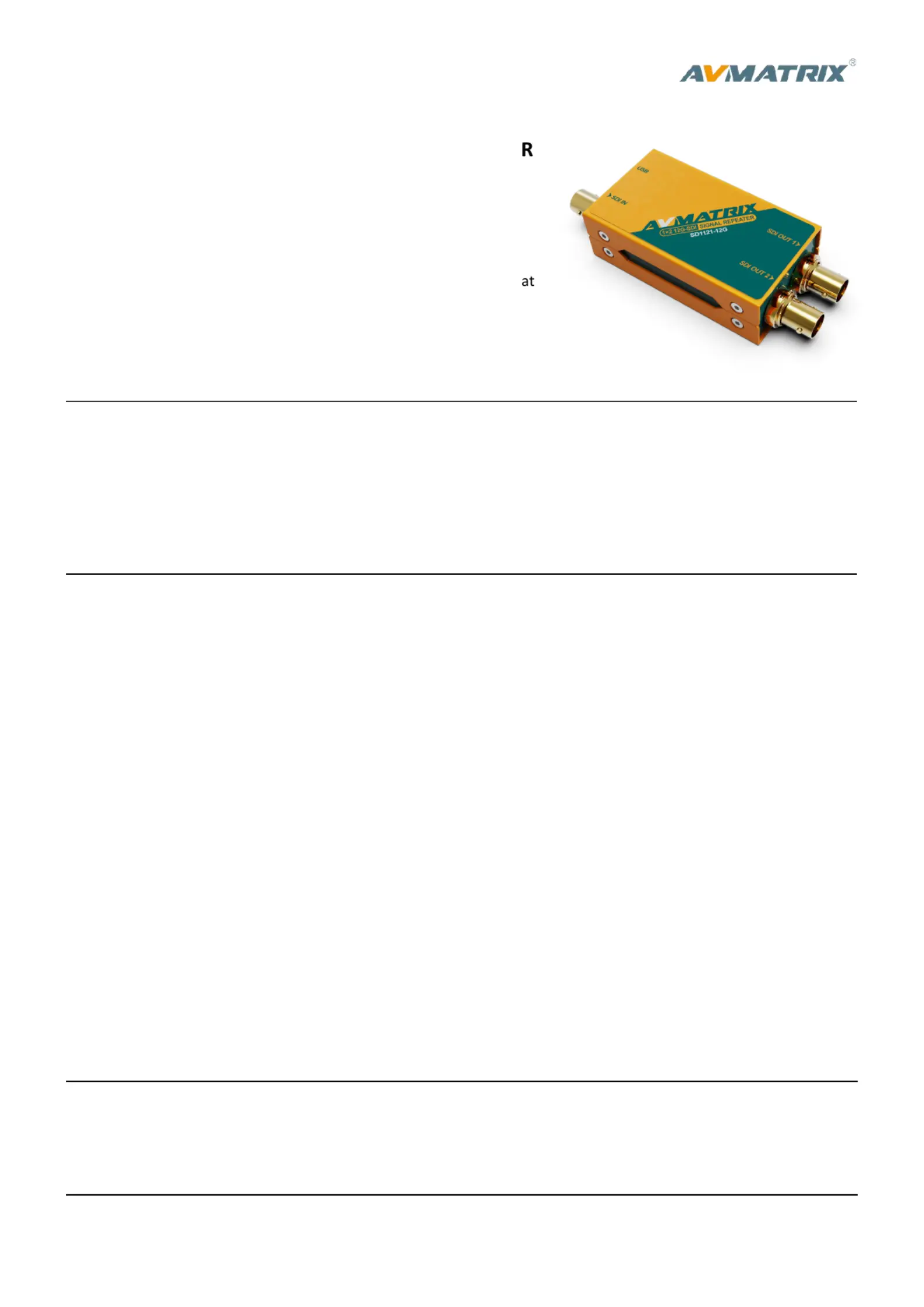

The SD1121-12G is a miniature 1x2 12G-SDI re-clocking distribution
amplifier. The SD/HD/3G/6G/12G-SDI input signal is automatically
detected. It features cable equalization and re-clocking techniques th
enable the SDI cable distance up to SD: 400m, HD: 200m, 3G: 120m,
12G: 60m. It is also an ASI distributor amplifier that all input and
outputs are compatible with ASI signal.
SDI Video Input
1×SD/HD/3G/6G/12G-SDI (75Ω BNC)
Updates
USB
SDI Video Output
2×SD/HD/3G/6G/12G-SDI/ASI (75Ω BNC)
Power Input
USB Power
Technical Specifications
2
Environmental Specifications
Operating Temperature
-20
℃
~60
℃
Storage Temperature
-30
℃
~70
℃
Relative Humidity
0%~90% non-condensing
What's Included
SD1121 (1×2 12G-SDI Reclocking Distribution Amplifier)
5V USB Power Supply
Mounting Brackets ×1
Warranty
3 Year Limited Manufacturer's Warranty.
Note: due to constant effort to improve products and product features, specifications may change without notice.
