Technical Specifications
1
1×9 3G-SDI RECLOCKING DISTRIBUTION AMPLIFIER
SD1191

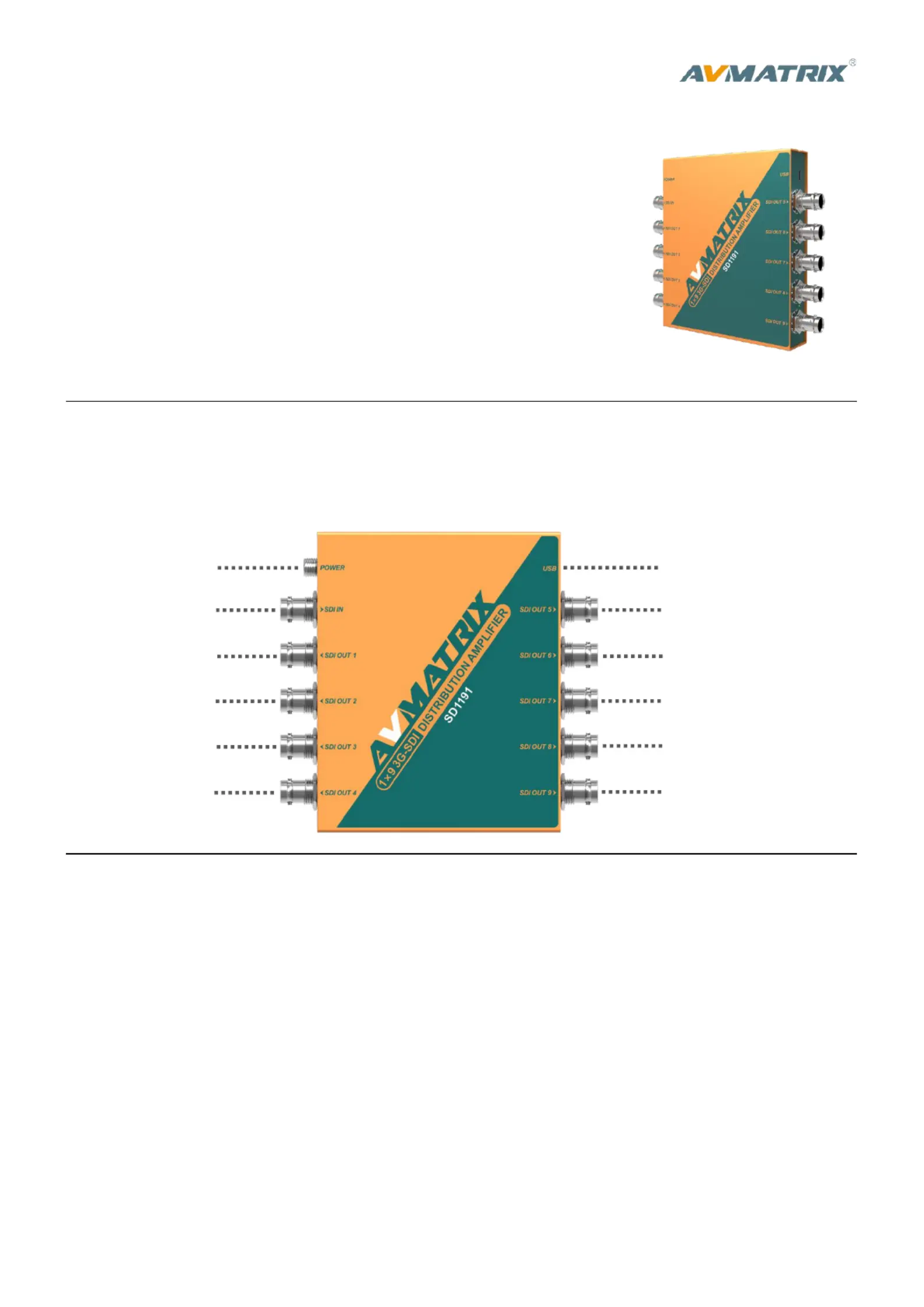

Connections
Standards
SDI Video Input
1×SD/HD/3G-SDI(75Ω BNC)
Updates
USB
SDI Video Output
9×SD/HD/3G-SDI/ASI (75Ω BNC)
USB
DC POWER
SDI IN
SDI OUT 1
SDI OUT 2
SDI OUT 3
SDI OUT 5
SDI OUT 6
SDI OUT 9
SDI OUT 7
SDI OUT 8
SDI Format Support
(2K) 2048×1080p 30/29.97/25/24/23.98
(2K) 2048×1080PsF 30/29.97/25/24/23.98
(HD) 1920×1080p 60/59.94/50/30/29.97/25/24/23.98
(HD) 1920×1080PsF 30/29.97/25/24/23.98
(HD) 1920×1080i 60/59.94/50
(HD) 1280×720p 60/59.94/50
(HD) 1280×720p 30/29.97/25/24/23.98
(SD) 625i 50/525i 59.94
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI
SDI Compliance
SMPTE 372M, SMPTE 259M,
SMPTE 292M, SMPTE 296M,
SMPTE 424M, SMPTE 425M,
DVB-ASI
SDI Color Space and Precision
RGB 4:4:4 10bit/12bit
YUV 4:2:2 10bit/12bit
YUV 4:4:4 10bit/12bit
XYZ 4:4:4 12bit
The SD1191 is a miniature 1x9 3G/HD/3G-SDI re-clocking distribution
amplifier. The SD/HD/3G-SDI input signal is automatically detected. It
features cable equalization and re-clocking techniques that enable the
SDI cable distance up to SD: 400m, HD: 200m, 3G: 120m. It is also an ASI
distributor amplifier that all input and outputs are compatible with ASI
signal.
Technical Specifications
2
Power
Physical Specifications
Dimension
125.5 104 24.5mm× ×
Net Weight
600g
Gross Weight
1300g
Environmental Specifications
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Relative Humidity
0%~90% non-condensing

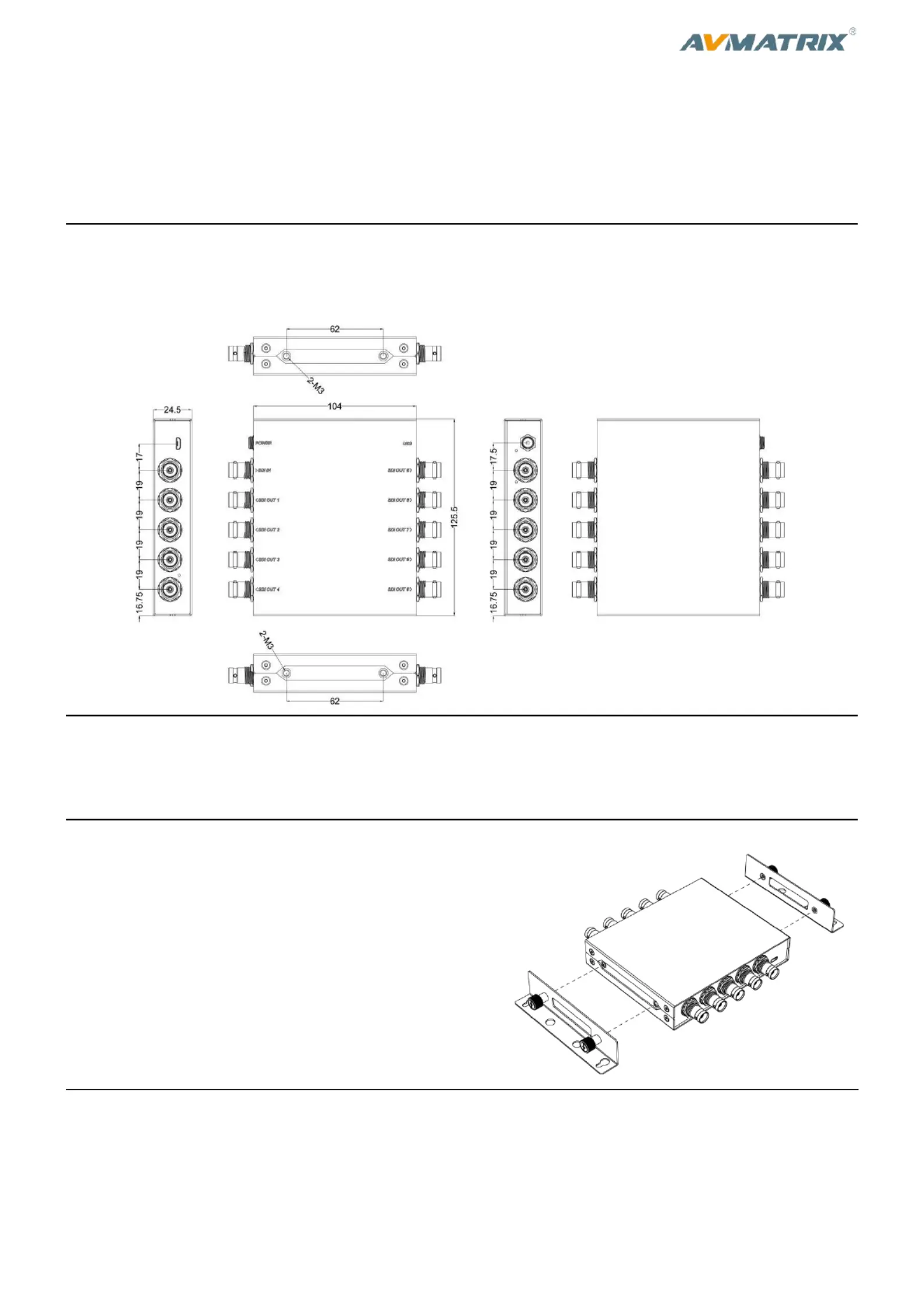

What's Included Mounting Diagram
SD1191 (1×9 3G-SDI Reclocking Distribution Amplifier)
DC 12V Universal Power Supply with International Socket Adapters
Mounting Brackets ×2
Warranty
3 Year Limited Manufacturer's Warranty.
Note: due to constant effort to improve products and product features, specifications may change without notice.
Power Supply
Threaded locking DC connector
Voltage Range
DC 6-24V
Power Consumption
5W (Max)
