I N S TA L L AT I O N I N S T R U C T I O N S
108-FD2B
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. INST108-FD2B12/9/22
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Patent Pending
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Included interface for climate and steering wheel functions
• Touchscreen display for climate, audio interfacing, and personalization features
• Integrated hazard button and passenger airbag light
• Painted scratch resistant matte black
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm and 7mm socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly ..........................................................3
Axxess Interface Installation .............................4-11
Final Assembly .......................................................7
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into touchscreen
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
Ford F-150 (with 4.2” screen) 2013-2014
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets (a)
• C) (4) Panel clips •
D) Antenna adapter (not shown)
A B C
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
2386.257.1187
|
MetraOnline.com

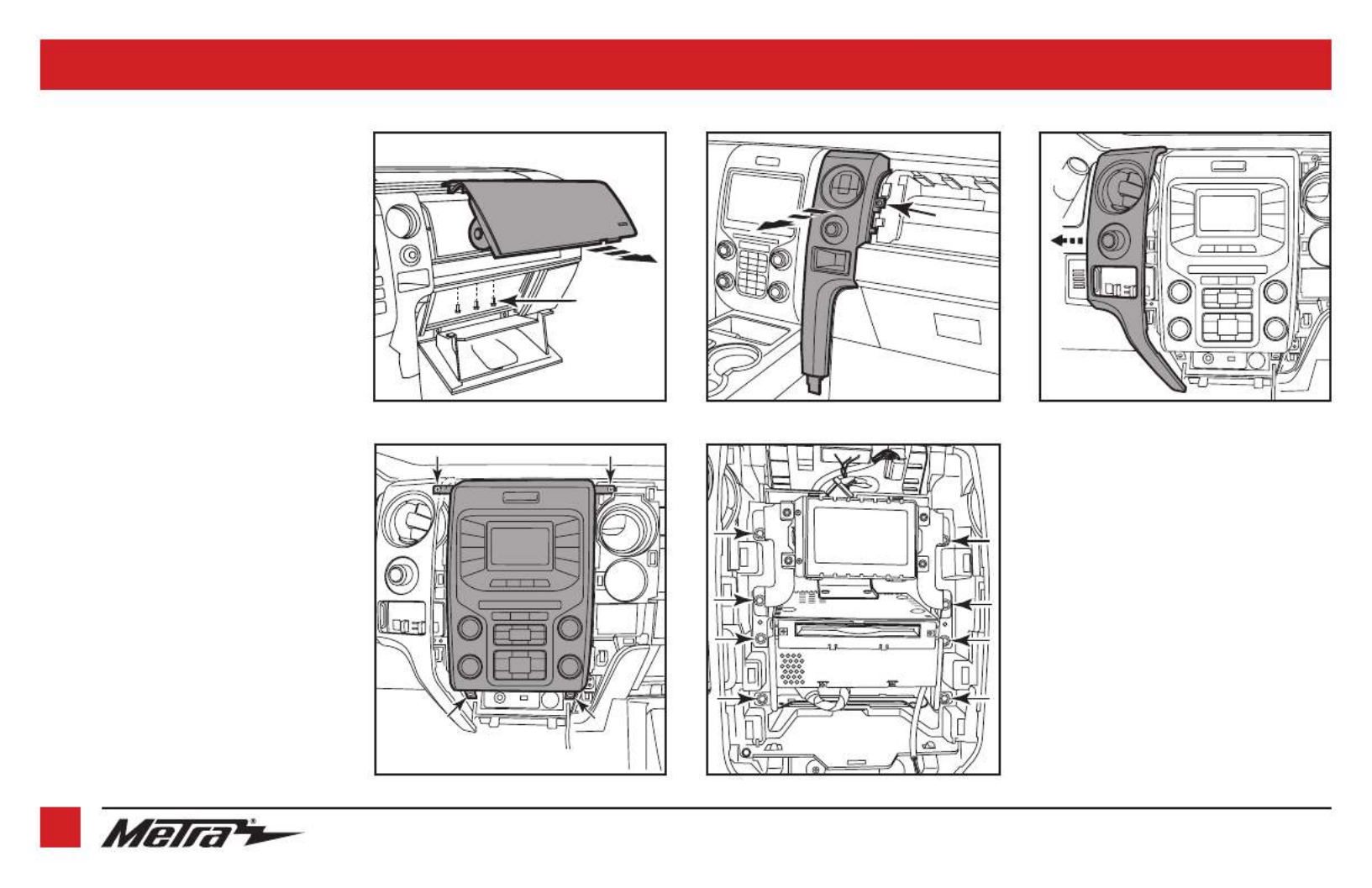

DASH DISASSEMBLY
1. Open and lower the glove box, then
remove (3) 10mm bolts facing up from
inside the glove box opening. (Figure A)
2. Remove (1) 7mm screw securing the
trim panel to the right of the radio, then
unclip and set to the side. (Figure B)
3. Unclip the trim panel to the left of the
radio and slightly move aside to access
the radio/climate panel top left screw.
(Figure C)
4. Open the compartment below the
climate controls.
5. Remove (4) 9/32” screws securing
the radio/climate control panel to the
dash, then unclip, unplug, and remove.
(Figure D)
6. Remove (4) 7mm screws securing the
radio chassis. Slide the chassis out, then
unplug and remove. (Figure E)
7. Remove (4) 7mm screws securing the
radio display, then unplug and remove.
(Figure E)
Continue to Kit Preparation
(Figure A) (Figure B)
(Figure E)
(Figure C)
(Figure D)
