I N S TA L L AT I O N I N S T R U C T I O N S

108-FD5CH

Patent # 10,579,232

Attention! With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

KIT FEATURES

• Designed speciﬁcally for the Pioneer DMH-C5500NEX 8-inch radio

• Included interface for climate and steering wheel functions

• Integrated passenger airbag indicator

• Touchscreen display for climate and personalization features

• Painted charcoal

KIT COMPONENTS

• A) Radio trim panel (with touchscreen display) • B) Radio brackets • C) Engine start/stop circuit board and cover

• D) Engine start/stop trim

• E) (6) Phillips screws

• F) (4) Panel clips • G) USB cable • H) HVAC interface and wiring harness (not shown) • I) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • Cutting tool

• Torx T-10 screwdriver

TABLE OF CONTENTS

Dash Disassembly ..............................................2-4

Kit Preparation ....................................................5-7

Kit Assembly ..........................................................8

Axxess Interface installation ............................9-17

Final Assembly ......................................................13

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built

into touchscreen

Antenna Adapter: Included with kit

Ford Mustang (with 4.2” screen) 2015-Up

A B

C D

F G

Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com

speciﬁc applications

386.257.1187

MetraOnline.com

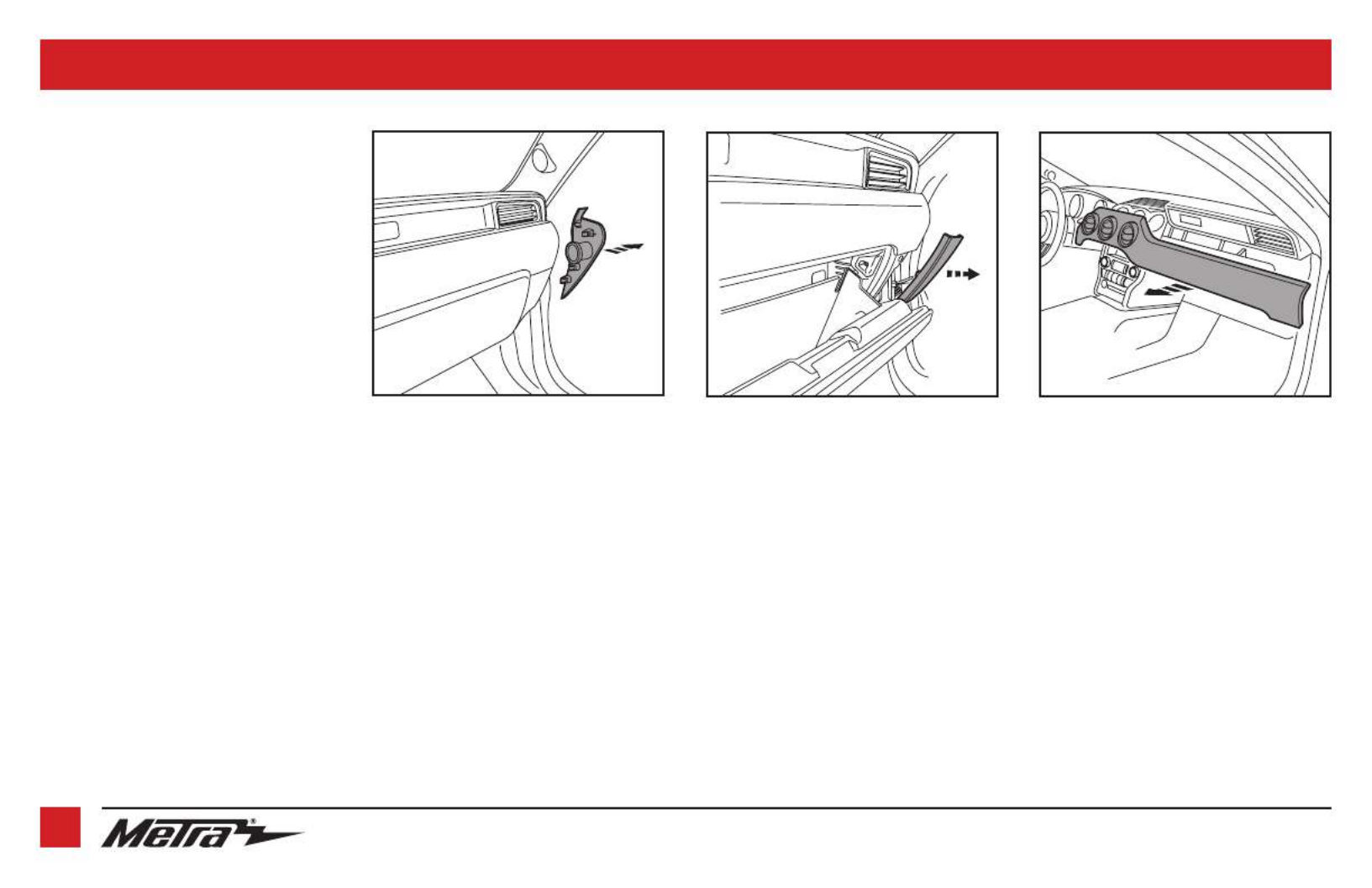

1. Open the passenger door and remove

the trim panel from the side of the dash.

(Figure A)

2. Open the glove box and remove the trim

panel on the right side. (Figure B)

3. Unclip and remove the trim/vent dash

panel. (Figure C)

Continued on the next page

(Figure B)(Figure A) (Figure C)

DASH DISASSEMBLY
