I N S TA L L AT I O N I N S T R U C T I O N S

108-FD6CH

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV.

12/9/22

INST108-FD6CH

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

Patent Pending

KIT FEATURES

• Designed speciﬁcally for the Pioneer DMH-C5500NEX 8-inch radio

• Touchscreen display for climate and personalization features

• Included interface for climate and steering wheel functions

• Integrated passenger airbag indicator

• Painted charcoal

KIT COMPONENTS

• A) Radio trim panel (with touchscreen display) • B) Radio brackets • C) Engine start/stop circuit board and cover • D) (6) #4 x 1/2” Phillips screws

• E) (4) Panel clips • F) USB cable • G) HVAC interface and wiring harness (not shown) • H) Antenna adapter (not shown) TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • Cutting tool

• Torx T-10 screwdriver

TABLE OF CONTENTS

Dash Disassembly ...............................................2-3

Kit Preparation ................................................... 4-5

Kit Assembly ..........................................................6

Axxess Interface installation ............................ 7-16

Final Assembly ......................................................11

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built

into touchscreen

Antenna Adapter: Included with kit

A B C D

Ford Mustang (with 8” touchscreen) 2015-Up

E F

Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com

speciﬁc applications

386.257.1187

|

MetraOnline.com

1. Open the passenger door and remove

the trim panel from the side of the dash.

(Figure A)

2. Open the glove box and remove the trim

panel on the right side. (Figure B)

3. Unclip and remove the trim/vent dash

panel. (Figure C)

DASH DISASSEMBLY

2

4. Remove the rubber tray cover in front

of the shifter, and then remove the (2)

9/32” screws exposed. (Figure D)

5. Unclip and remove the front side panels

from each side of the center console.

(Figure E)

6. Remove the (2) 9/32” screws from each

side of the center console. (Figure F)

Continued on the next page

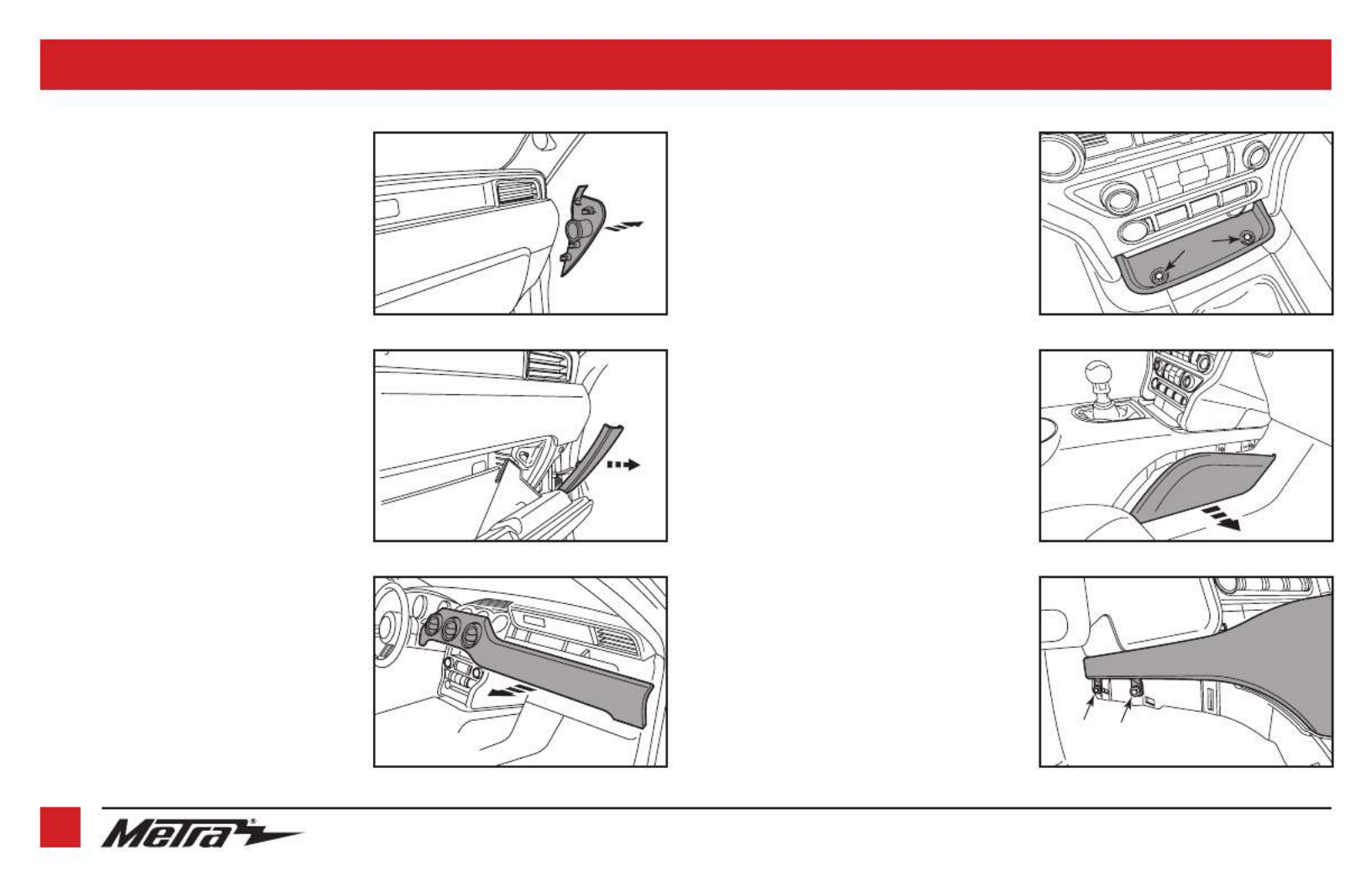

(Figure A) (Figure D)

(Figure B) (Figure E)

(Figure C) (Figure F)
