Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/19/24 INST108-FD8CH
I N S TA L L AT I O N I N S T R U C T I O N S
108-FD8CH
Patent # 10,579,232
KIT FEATURES
KIT COMPONENTS
• A) Radio bezel (w/airbag light & hazard switch and touchscreen) • B) Radio brackets • C) Panel clips (2)
• D) Axxess interface and wiring harness (not shown) • E) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" Socket wrench • Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Preparation 3 .......................................................
Kit Assembly 4 ..........................................................
Final Assembly 9 .......................................................
Axxess Interface Installation 5-13 ...........................
Ford Explorer (with 8-inch touchscreen) 2011-2019
A B C
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Touchscreen display for climate and most personalization features
• Included interface for climate and steering wheel functions
• Integrated hazard switch and passenger airbag indicator
• Painted charcoal to match the factory finish
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
• Antenna Adapter: Included with kit
• USB retention sold separately. AX-FDUSBAUX
for 2015-2019, AXFD-USB3 for 2011-2014.
386.257.2956
|
MetraOnline.com
2

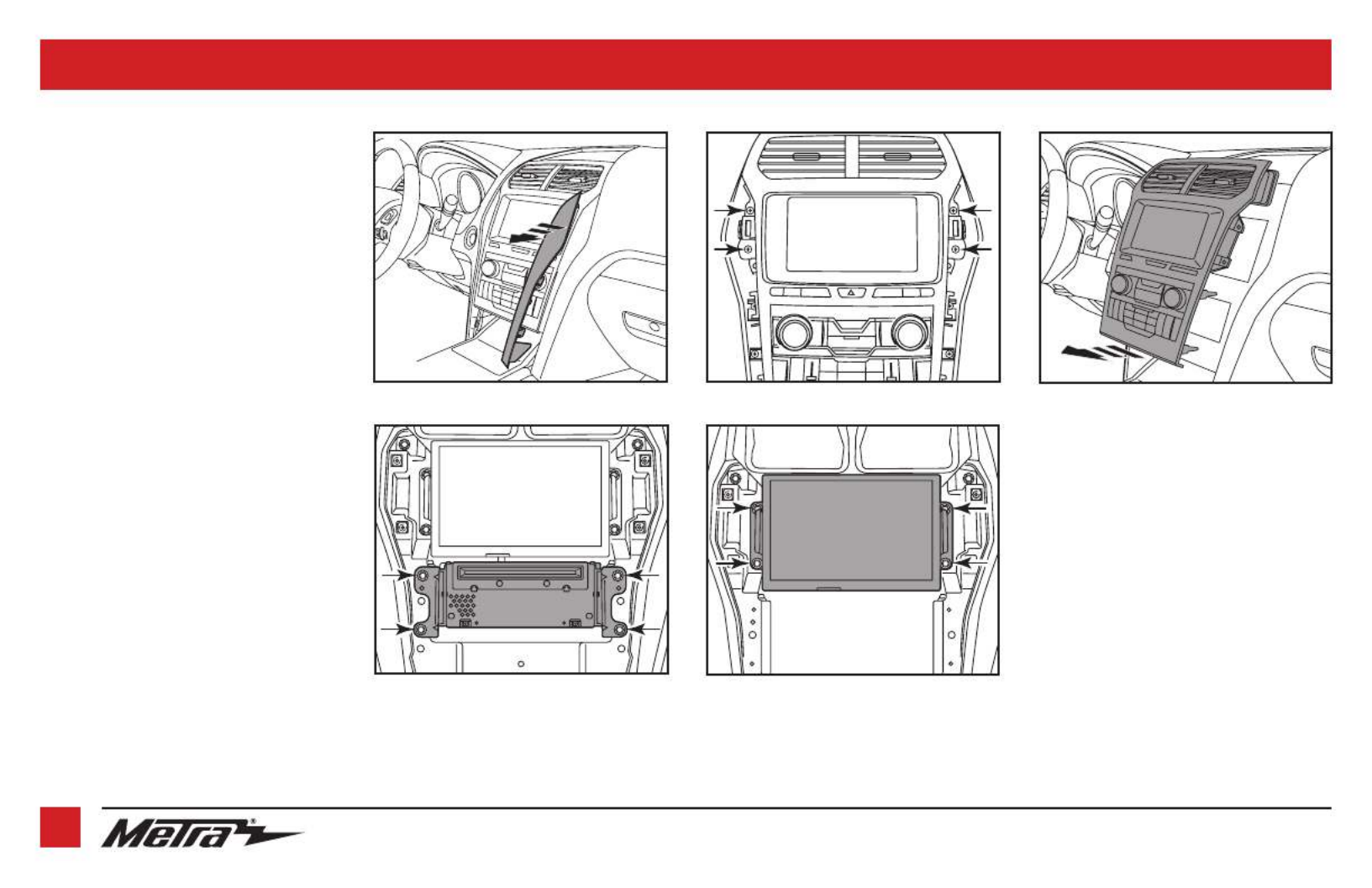

DASH DISASSEMBLY
1. Unclip and remove the trim panels to
the left and right of the climate & radio
control panel. (Figure A)
2. Remove (4) 9/32” screws securing the
climate & radio control panel, then
remove. (Figure B)
3. Unclip, unplug, and remove the climate &
radio control panel. (Figure C)
4. Remove (4) 9/32” screws securing the
radio chassis. Slide the chassis out, then
unplug and remove. (Figure D)
5. Remove (4) 9/32” screws securing the
radio display, then unplug and remove.
(Figure E)
Continue to Kit Preparation
(Figure B)
(Figure E)(Figure D)
(Figure A) (Figure C)
