Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 6/3/22 INST99-3010S
I N S TA L L AT I O N I N S T R U C T I O N S
99-3010S
U.S. Patent # D639,794
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted silver to match the factory finish
KIT COMPONENTS
• A) Radio trim panel with climate controls • B) Radio housing • C) Pocket • D) ISO DDIN brackets • E) ISO DDIN trim plate • F) ISO trim plate
• G) ISO brackets • H) Axxess interface and harness (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • T-20 Torx screwdriver
• Cutting tool
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................3
Kit Assembly
–DIN radio provision with pocket ........................4
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................5
Axxess Interface Installation .................................6
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface included
Antenna Adapter: 40-EU55 (sold sep.)
Steering wheel control interface: ASWC-1 (sold sep.)
Backup camera retention: BACKUPCAM-2 (sold sep.)
A B C E
G
D
F
Chevrolet Camaro 2010-2015
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
386.257.1187
|
MetraOnline.com
2
For vehicles without UMQ gauge panel,
unsnap and remove shifter trim panel
and skip to step 8.
1. Unclip and remove the (2) side trim
panels running the length of the center
console. (Figure A)
2. Remove (1) Phillips screw from each
side of the front of the center console.
(Figure B)
3. Remove (2) Phillips screws per side
from the cover on the back of the center
console then unclip and remove the
cover. (Figure C)

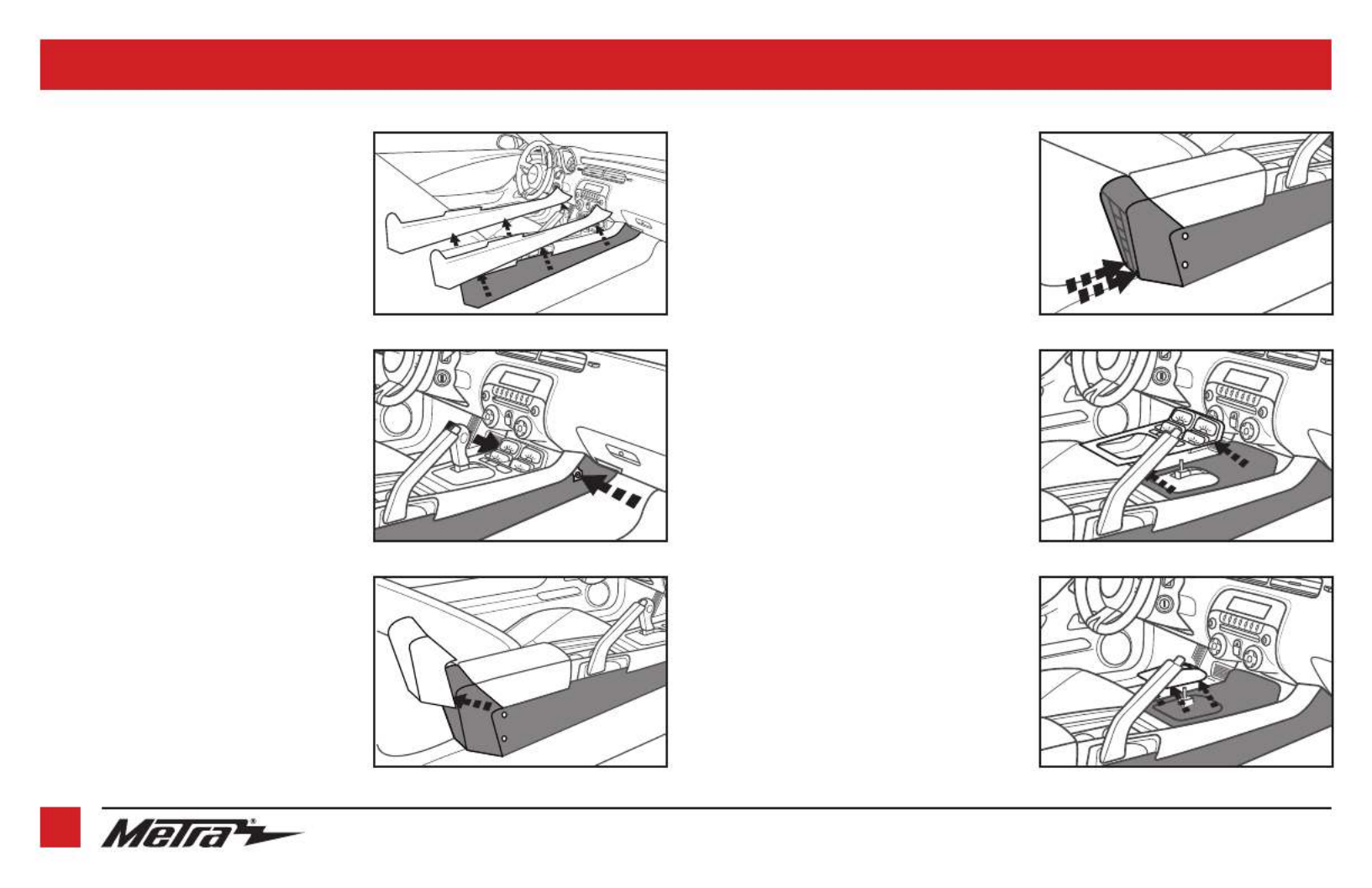

(Figure D)(Figure A)
(Figure E)(Figure B)
(Figure F)(Figure C)
2
19
180
3
30
0
30
70 9
12
19
180
200
320
300
30
100
0
30
70 9
12
19
180
200
320
30
100
DASH DISASSEMBLY
4. Remove (2) Phillips screws exposed
under the cover on the back of console.
(Figure D)
5. Remove gauge cluster/trim panel
around shifter. (Figure E)
6. Auto transmission vehicles only:
Remove one T-20 Torx screw from the
front of the shifter, and then remove
the knob and shifter surround panel.
(Figure F)
Continue onto next page
