Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 2/21/19 INST99-3030B
I N S TA L L AT I O N I N S T R U C T I O N S
99-3030B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Complete center dash panel for a factory look
• Painted matte black
• Includes an Axxess interface, wiring harness, ASWC-1,
and antenna adapter for a complete installation
KIT COMPONENTS
• A) Radio/climate control panel • B) Radio brackets • C) Climate control trim panel A (04-05) • D) Climate control trim panel B (06-09) • E) Pocket
• F) (6) Panel clips • G) (12) #8 x 3/8” Phillips screws • H) Axxess interface and wiring harness (not shown) • I) Antenna adapter (not shown)
• J) ASWC-1 (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” Socket wrench
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation ...................................................4-5
Kit Assembly
–ISO DIN radio provision with pocket ..................6
–ISO DDIN radio provision .....................................7
Axxess Interface Installation .................................8
Final Assembly ......................................................11
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface included
Antenna Adapter: Included with kit
Steering wheel control interface: ASWC-1 included
A B C
GF
D E
Cadillac XLR 2004-2009
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
1.800.221.0932
|
MetraOnline.com
2

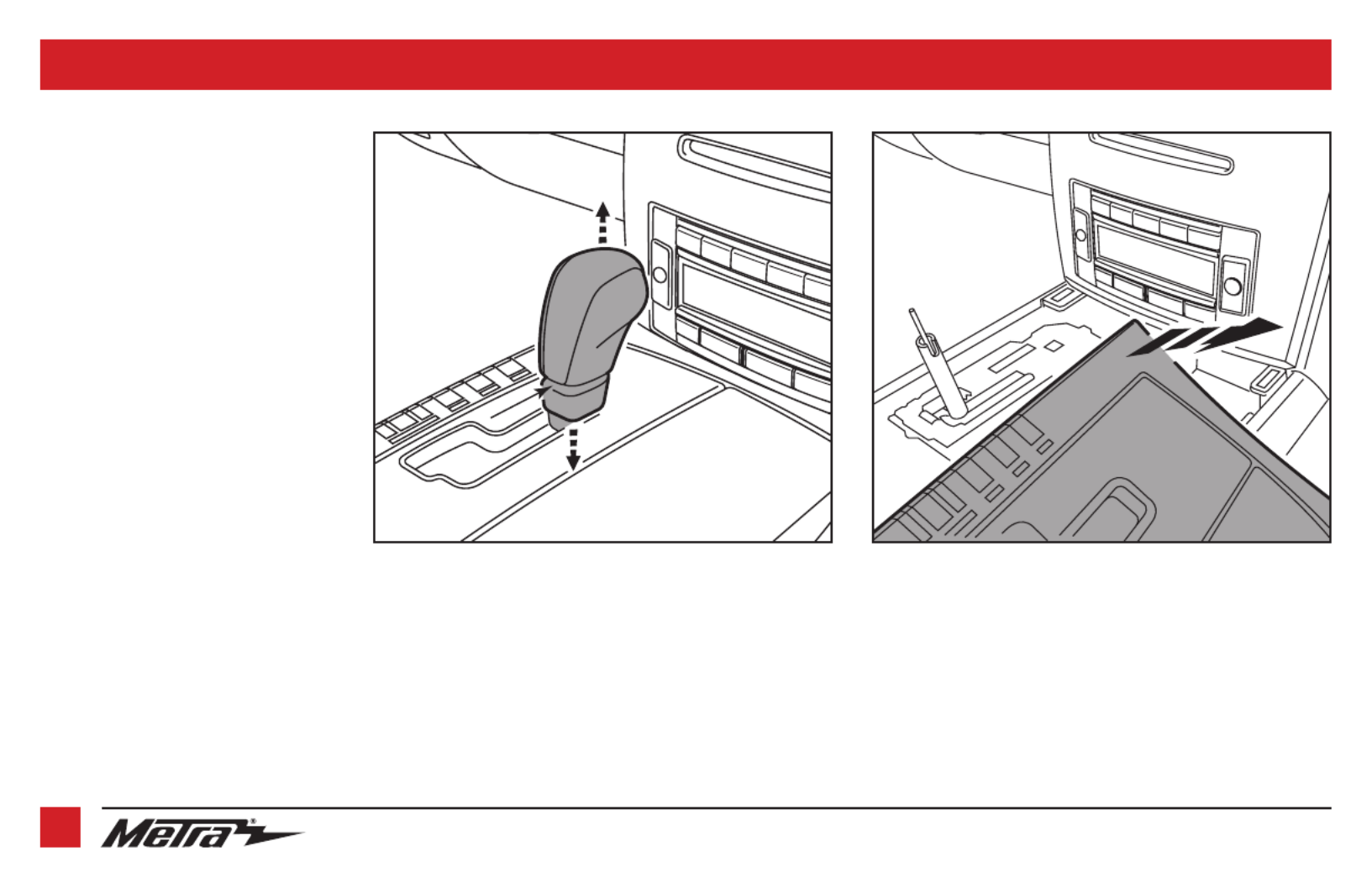

1. On the bottom of the shifter, pull the
chrome trim downward, and then
remove (1) screw exposed. Pull up on
the shifter to remove it. (Figure A)
2. Unclip the shifter trim plate, then set to
the side. (Figure B)
Continued on the next page
DASH DISASSEMBLY
(Figure B)(Figure A)
