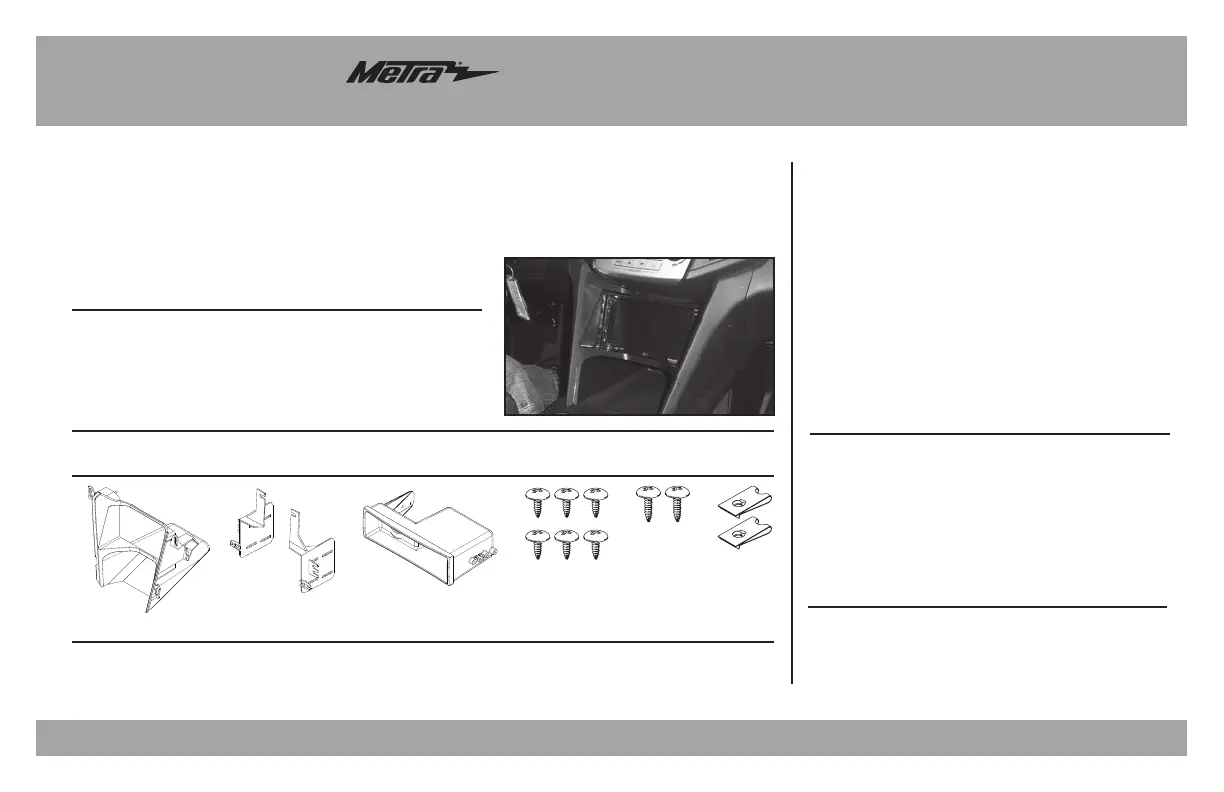

INSTALLATION INSTRUCTIONS FOR PART 99-3307G

CAUTION!

All accessories, switches, climate controls panels,

and especially air bag indicator lights must be connected before

cycling the ignition. Also, do not remove the factory radio with

the key in the on position, or while the vehicle is running.

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Painted gray to match factory finish

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (6) #8 x 3/8” Phillips screws

• E) (2) #10 x ¾” Phillips screws • F) (2) #10 panel clips • G) Axxess interface and wiring harness (not shown)

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • Axxess interface and harness included

Antenna Adapter: • 40-EU55

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench

TOOLS REQUIRED

(with monochrome display)

Table of Contents

BCE FD

Dash Disassembly ................................................. 2

Kit Preparation ....................................................... 3

Kit Assembly

– ISO DIN radio provision with pocket 4 ......................

– ISO DDIN radio provision 4 ......................................

Axxess Interface Installation .............................5-7

99-3307G

Dash Disassembly

1. With pocket above factory radio

controls - Remove (2) 9/32”

screws from inside the pocket,

then unclip and remove the pocket.

2. Without pocket, just unsnap and

remove the panel. (Figure A)

3. Unsnap, unplug, and remove

the radio/ climate control panel.

(Figure B)

4. Unclip and remove the (2) side

panels from the left and right

side of the pocket/CD slot panel.

(Figure C)

5. Remove (4) 9/32” screws to remove

the pocket/CD slot panel. Remove

the power outlet and attach it to the

included pocket if installing single

DIN. If you are mounting a DDIN the

power outlet will not be retained with

this kit. Remove the rubber bottom

from the factory pocket and save it

for final assembly. (Figure D)

6. Remove (2) 9/32” screws from

each a/c vent then unclip and

remove the vents. Remove the

screws inside and under the vent

cavities and two from below the

vent locations. (this will allow flex

in the dash to fit the aftermarket in

later). (Figure E)

7. Remove (4) 9/32” screws securing

the radio chassis and remove.

(Figure F)

Continue to Kit Preparation

(Figure A) (Figure D)

(Figure C) (Figure F)

(Figure B) (Figure E)
