Installation instructions for part 99-3309B-LC
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted matte black to match the factory dash
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws
• E) (10) White plastic panel clips • F) Axxess Interface included (not shown)
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Axxess Interface included
Antenna Adapter: • 40-EU55
• Panel removal tool • Phillips screwdriver
TOOLS REQUIRED
Dash Disassembly ..................................................2
Kit Preparation ....................................................... 2
Kit Assembly
– ISO DIN radio provision with pocket 3 ......................
– ISO DDIN radio provision 3 ......................................
Axxess Interface Installation ................................ 4
– Connections to be made 4 .......................................
– Installing the Axxess interface 5 ..............................
– Initializing the Axxess interface 5 ............................
– Vehicle customization with the optional AX-LCD 5 ...
Table of Contents
A B C D E
99-3309B-LC

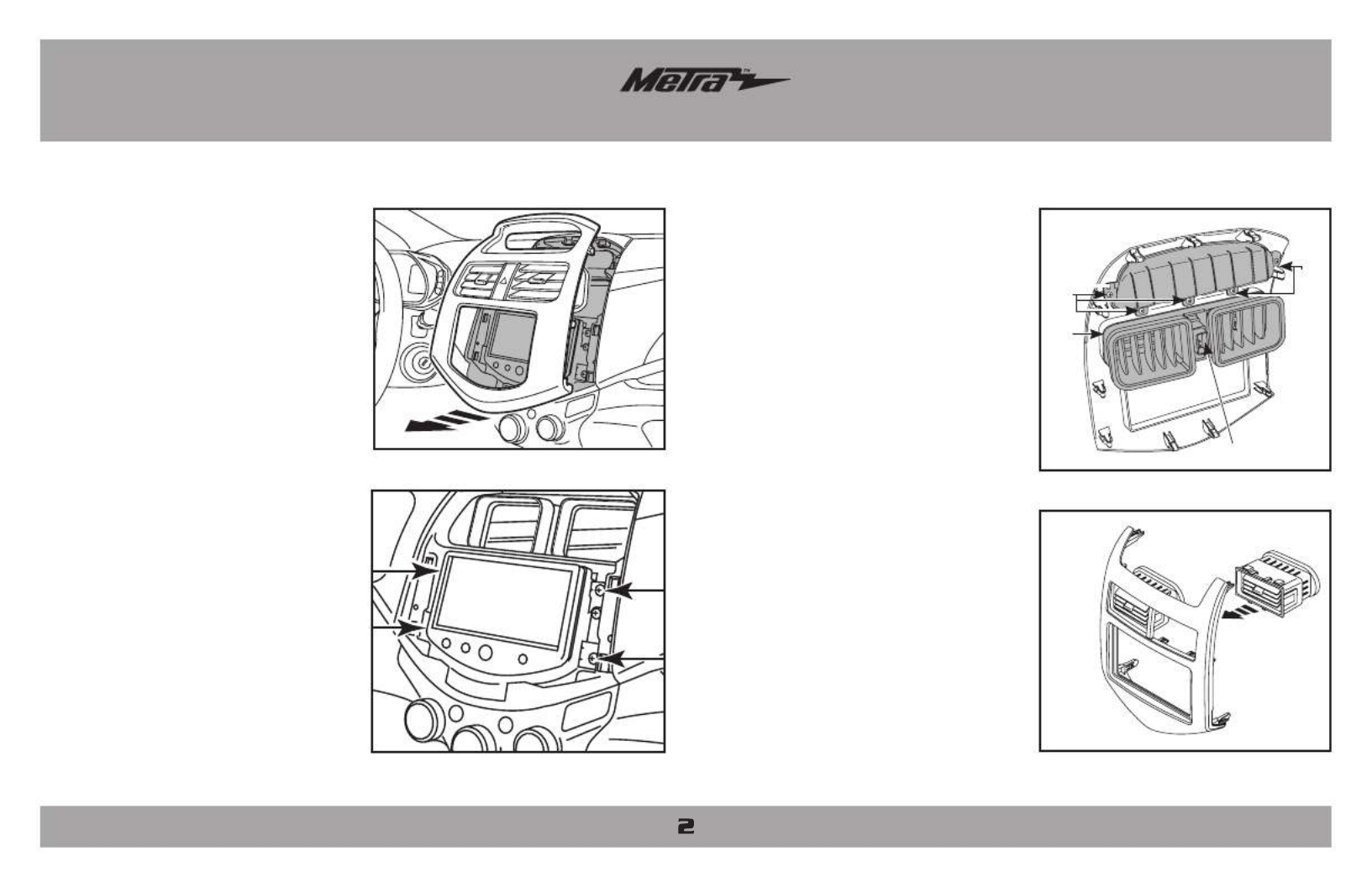

Dash Disassembly
1. Unclip and remove the radio trim
panel. (Figure A)
2.
Remove (4) Phillips screws securing
the factory radio and then remove.
(Figure B)
Continue to Kit Preparation
From the factory radio trim panel
(Figure A):
1. Unclip and remove the A/C vents.
2. Unclip and remove the hazard
button.
3. Remove (5) Phillips screws
securing the upper display shroud.
From the 99-3309B-LC radio trim
panel (Figure B):
1. Snap in the factory A/C vents.
2. Attach the (10) panel clips
supplied.
Continue to Kit Assembly
Kit Preparation
(Figure A)
Step 3
Step 3
Step 1
Step 2
(Figure A)
(Figure B) (Figure B)
