I N S TA L L AT I O N I N S T R U C T I O N S
99-5834CH
The World’s best kits.® MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/21/23 INST99-5834CH
Patent # 10,579,232
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket radio.
KIT FEATURES
• ISO DDIN radio provision • ISO DIN radio provision w/pocket
• Touchscreen display for climate and personalization features
• Included interface for climate and steering wheel functions
• Painted charcoal • Integrated passenger airbag indicator
Note: This kit will not support the Pro Trailer Backup Assist™ feature, nor the
massaging seats.
Note: Factory B&O amplified sound systems require an additional interface,
sold separately. Part # AXA2B-FD1.
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) SYNC
® module brackets • D) Pocket • E) (4) #8 x 3/8” Phillips truss-head screws
• F) (4) #4 x 1/2” Phillips pan-head screws • G) (7) Panel clips • H) HVAC interface and wiring harness (not shown) • I) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Kit Preparation 4 .......................................................
Kit Assembly
– ISO DIN radio provision with pocket 5 .................
– ISO DDIN radio provision 5 ...................................
Axxess Interface Installation 6-16 ...........................
Final Assembly 11 ......................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into touchscreen
Antenna Adapter: Included with kit
USB Replacement Hubs: #AXFD-USB or #AXFD-USB2
(sold separately)
A B C D E F
G
Ford F-150 2015-2020*
Ford 2017-2022*F250/350/450/550
Visit for more detailed information about MetraOnline.com
the product and up-to-date vehicle specific applications
* With factory 4.2" screen or 8" screen.
Excluding any model with a 3 window
button setup at the top of the dash.
2386.257.1187
|
MetraOnline.com
DASH DISASSEMBLY

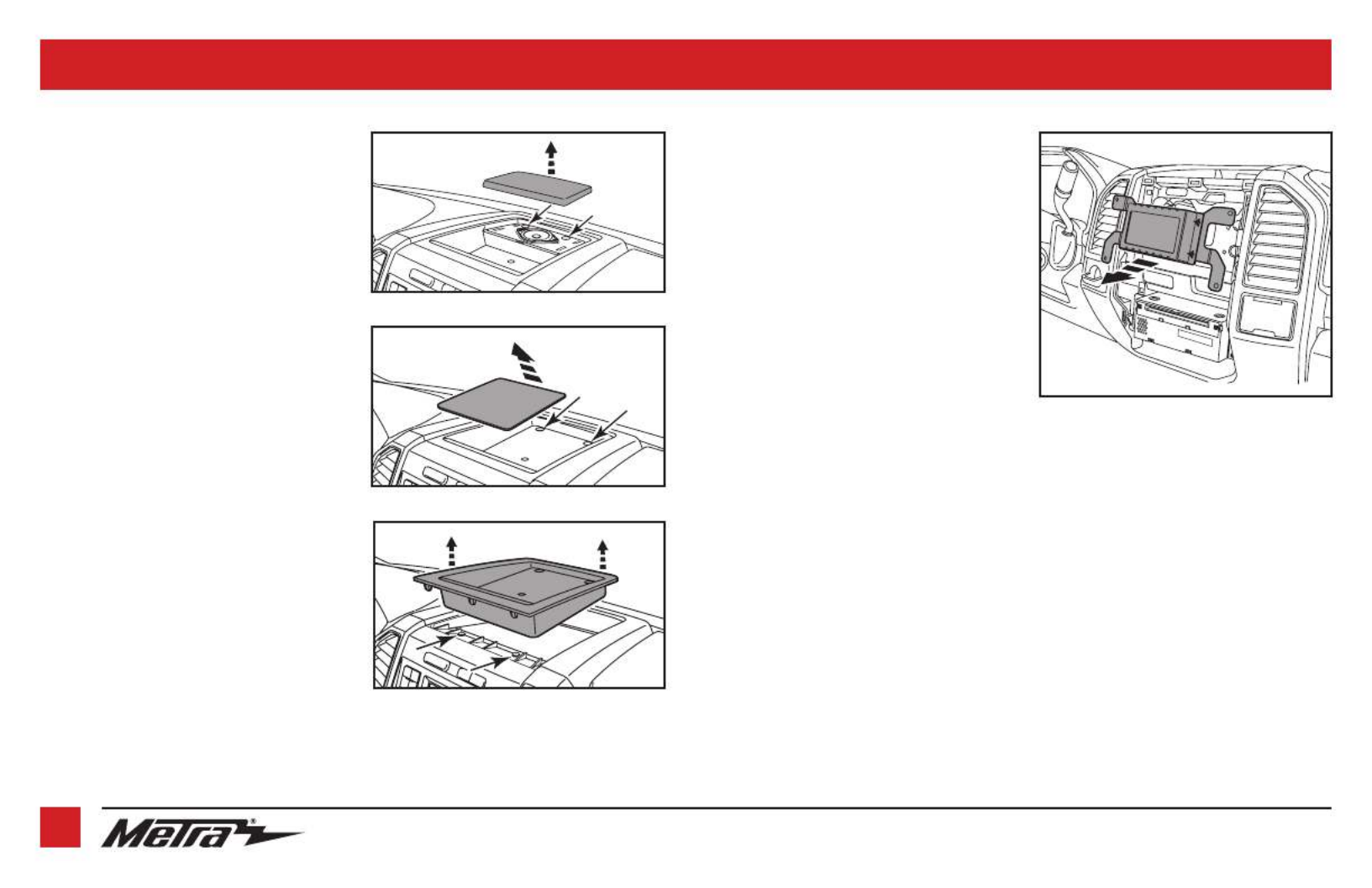

1. For vehicles with a center channel
speaker: Unclip and remove the speaker
grille in the center of the dash above the
radio/climate control panel, and then
remove the (2) 9/32” screws exposed.
(Figure A)
2. For vehicles without a center channel
speaker: Remove the rubber pad in the
shallow pocket above the radio/climate
control panel, and then remove the (2)
9/32” screws exposed. (Figure B)
3. Unclip and remove the panel above the
radio/climate control panel, and then
remove the (2) 9/32” screws from the
top of the radio/climate control panel.
(Figure C)
Ensure that the vehicle is completely off before
proceeding onto the following (5) steps
4. Unclip, unplug, and remove the radio/
climate control panel.
5. Remove the 9/32” screws securing the
display screen; qty. (4) for the 4.2-inch
display screen models, qty. (6) for 8-inch
display screen models, then unplug and
remove. (Figure D)
Continued on the next page (Figure D)
(Figure C)
(Figure A)
(Figure B)
