I N S TA L L AT I O N I N S T R U C T I O N S

99-5838CH

Patent # 10,579,232

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Touchscreen display for climate and personalization features

• Painted charcoal

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) SYNC module brackets • D) Pocket • E) Engine start/stop circuit board and cover

• F) Engine start/stop trim • G) #8 x 3/4" Phillips pan-head screws (4) • H) #8 x 3/8" Phillips truss-head screws (4) • I) #4 x 1/2" Phillips pan-head screws (6)

• J) Panel clips (4)

• K) USB cable • Not shown: HVAC interface and wiring harness, Antenna adapter

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench • Cutting tool

• Torx T-10 screwdriver • Pick tool

TABLE OF CONTENTS

Dash Disassembly ..............................................2-4

Kit Preparation ....................................................5-7

Kit Assembly

–ISO DIN radio provision with pocket ..................8

–ISO DDIN radio provision .....................................8

Axxess Interface installation ............................9-18

Final Assembly ......................................................13

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built

into touchscreen

Antenna Adapter: Included with kit

Ford Mustang (with 4.2" screen) 2015-2022

A B C F

D E

H I J K

Visit for more detailed information about the product and up-to-date MetraOnline.com

vehicle speciﬁc applications

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

Please visit or metraonline.com axxessinterfaces.com for more harness and interface options.

386.257.1187

MetraOnline.com

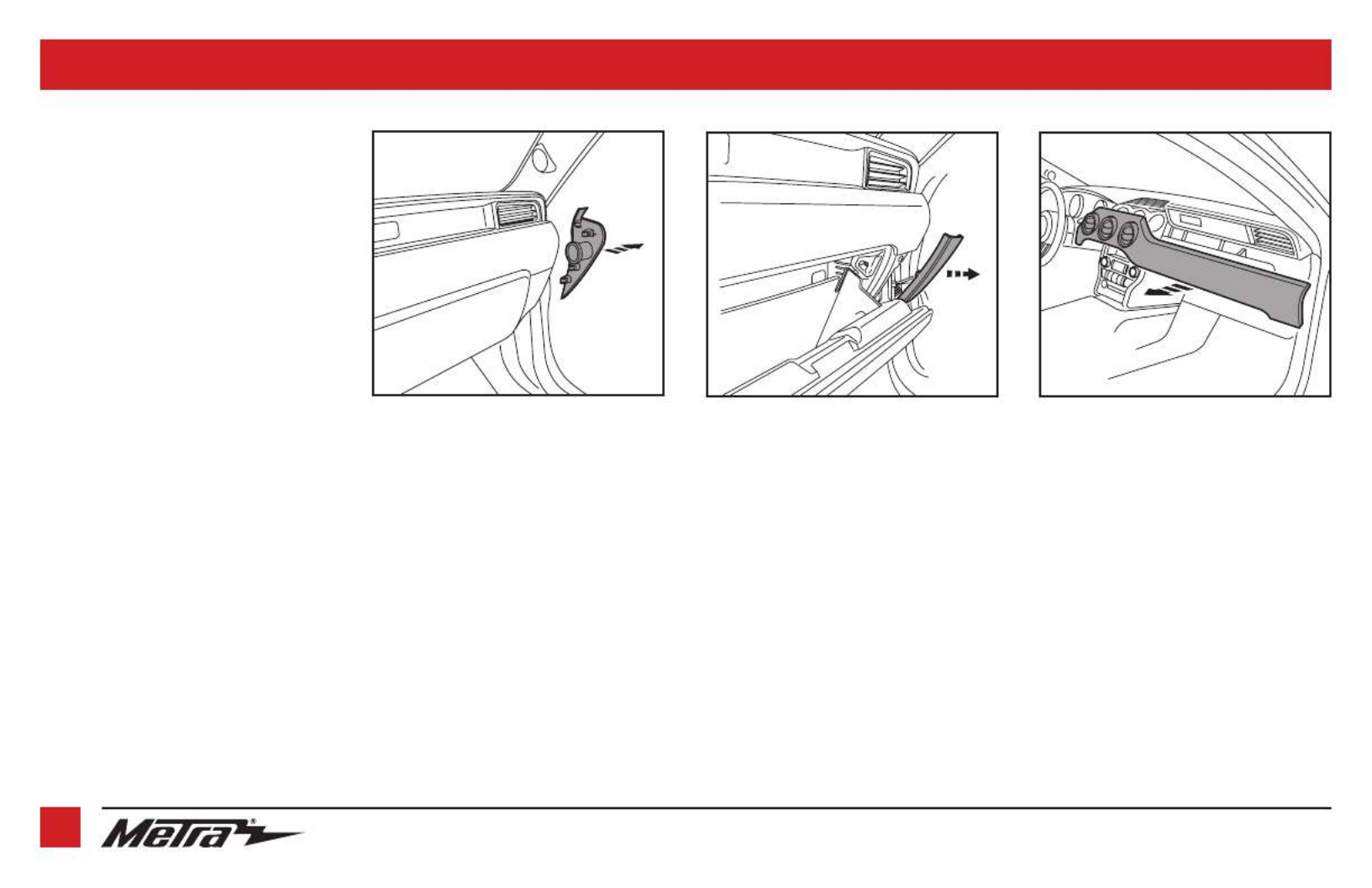

1. Open the passenger side door and,

using th panel removal tool, remove the

trim panel from the side of the dash.

(Figure A)

2. Open the glove box and remove the

trim panel on the right side of the box.

(Figure B)

3. Using the panel removal tool, carefully

unclip and remove the trim dash panel,

including the A/C vents. (Figure C)

Continued on the next page

(Figure B)(Figure A) (Figure C)

DASH DISASSEMBLY
