I N S TA L L AT I O N I N S T R U C T I O N S
99-5840CH
The World’s best kits.® metraonline.com © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 12/13/23 INST99-5840CH
Patent # 10,579,232
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted charcoal
• Touchscreen display for climate and personalization features
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) Engine start/stop circuit board and cover
• E) Engine start/stop trim
• F) #8 x 3/8” Phillips truss-head screws (4) • G) #4 x 1/2” Phillips pan-head screws (6) • H) Panel clips (4) • I) USB cable
• J) HVAC interface and wiring harness (not shown) • K) Antanna adapter (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
• Torx T-10 screwdriver
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Kit Preparation 4-5 ...................................................
Kit Assembly
–ISO DIN radio provision with pocket 6 ..................
–ISO DDIN radio provision 6 ....................................
Axxess Interface installation 7-15 ...........................
Final Assembly 11 ......................................................
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: Axxess interface and
harness included
Antenna Adapter: 40-EU10 (sold separately)
A B C ED
Ford Mustang (with 8” touchscreen) 2015-2022
GF H I
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
386.257.1187
|
MetraOnline.com
1. Open the passenger door and remove
the trim panel from the side of the dash.
(Figure A)
2. Open the glove box and remove the
trim panel on the right side. (Figure B)
3. Unclip and remove the trim/vent dash
panel. (Figure C)
DASH DISASSEMBLY
2
4. Remove the rubber tray cover in front
of the shifter, and then remove the (2)
9/32” screws exposed. (Figure D)
5. Unclip and remove the front side panels
from each side of the center console.
(Figure E)
6. Remove the (2) 9/32” screws from each
side of the center console. (Figure F)
Continued on the next page

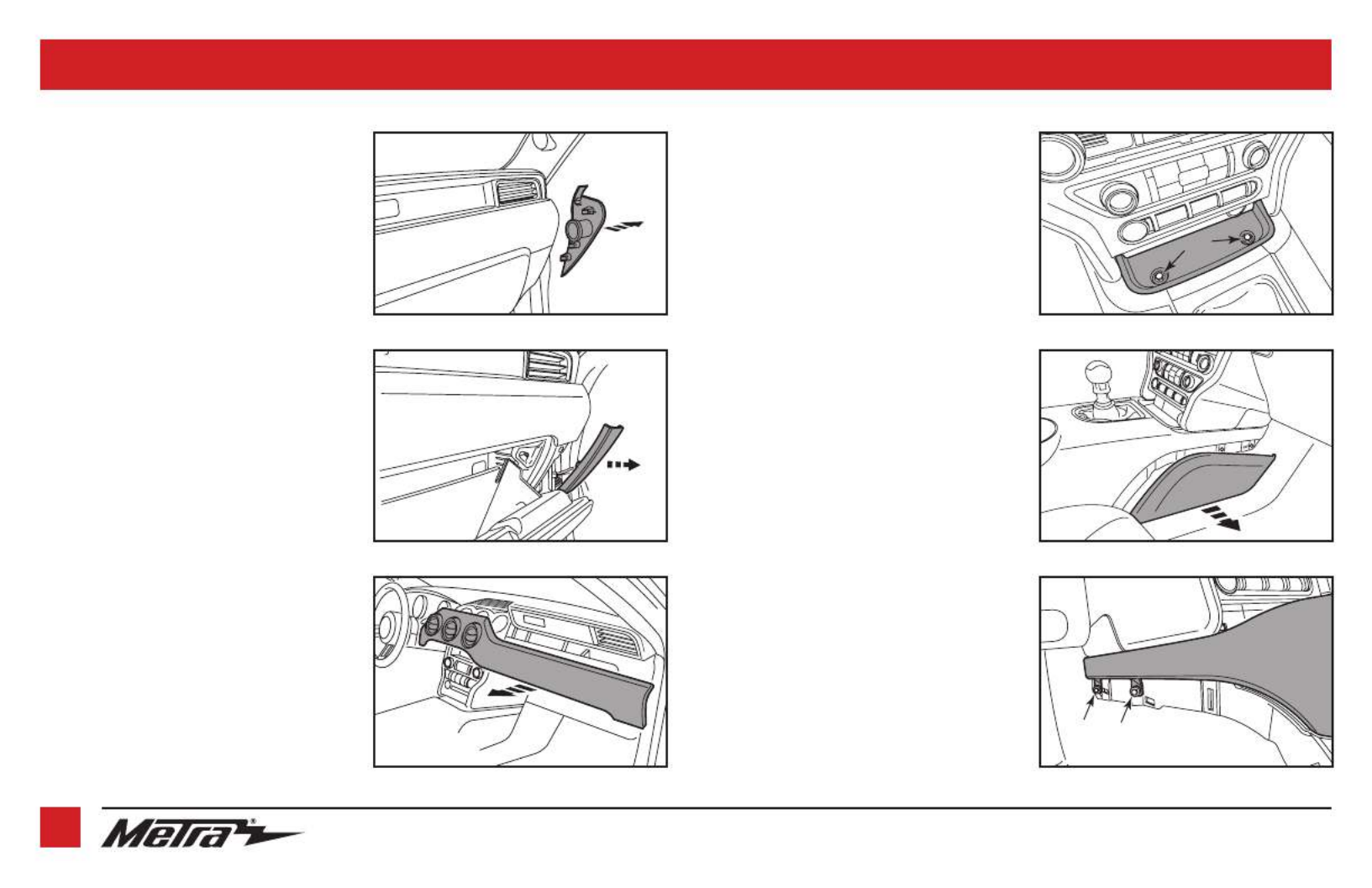

(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C) (Figure F)
