I N S TA L L AT I O N I N S T R U C T I O N S

99-5841B

Attention! With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Integrated controls for info center

• Painted black

KIT COMPONENTS

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) Panel clips

• F) HVAC interface and wiring harness (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 7mm socket wrench • Cutting tool

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly

–ISO DIN radio provision with pocket ..................4

–ISO DDIN radio provision .....................................4

Axxess Interface Installation ............................5-14

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface and

harness included

Antenna Adapter: 40-EU10

(sold separately)

A B C D E

Ford Fusion 2013-2020

Visit for more detailed information about the product and up-to-date MetraOnline.com

vehicle speciﬁc applications.

Note: Hybrid vehicles not supported

Patent # 10,579,232

386.257.1187

MetraOnline.com

For 2013-2016 models only:

1. Unclip the trim from around the shifter.

(Figure A)

2. Unclip the U-shaped trim from the rear

of the shifter. (Figure B) 14-16 only

For 2017-2019 models only:

3. Remove the left and right side panels on

the center console, and then remove the

(2) 7mm screws exposed. (Figure C)

All models:

4. Unclip the trim surrounding the center

dash. (Figure D)

Ensure that the vehicle is completely off

before proceeding onto the following

(3) steps

5. Remove the (2) 9/32” screws securing

the radio/climate control panel, and

then unclip, unplug, and remove.

6. Remove the (4) 9/32” screws securing

the display screen, and then unplug

and remove.

7. Remove the (2) 9/32” screws securing

the radio chassis, and then unplug

and remove.

Continue to Kit Preparation

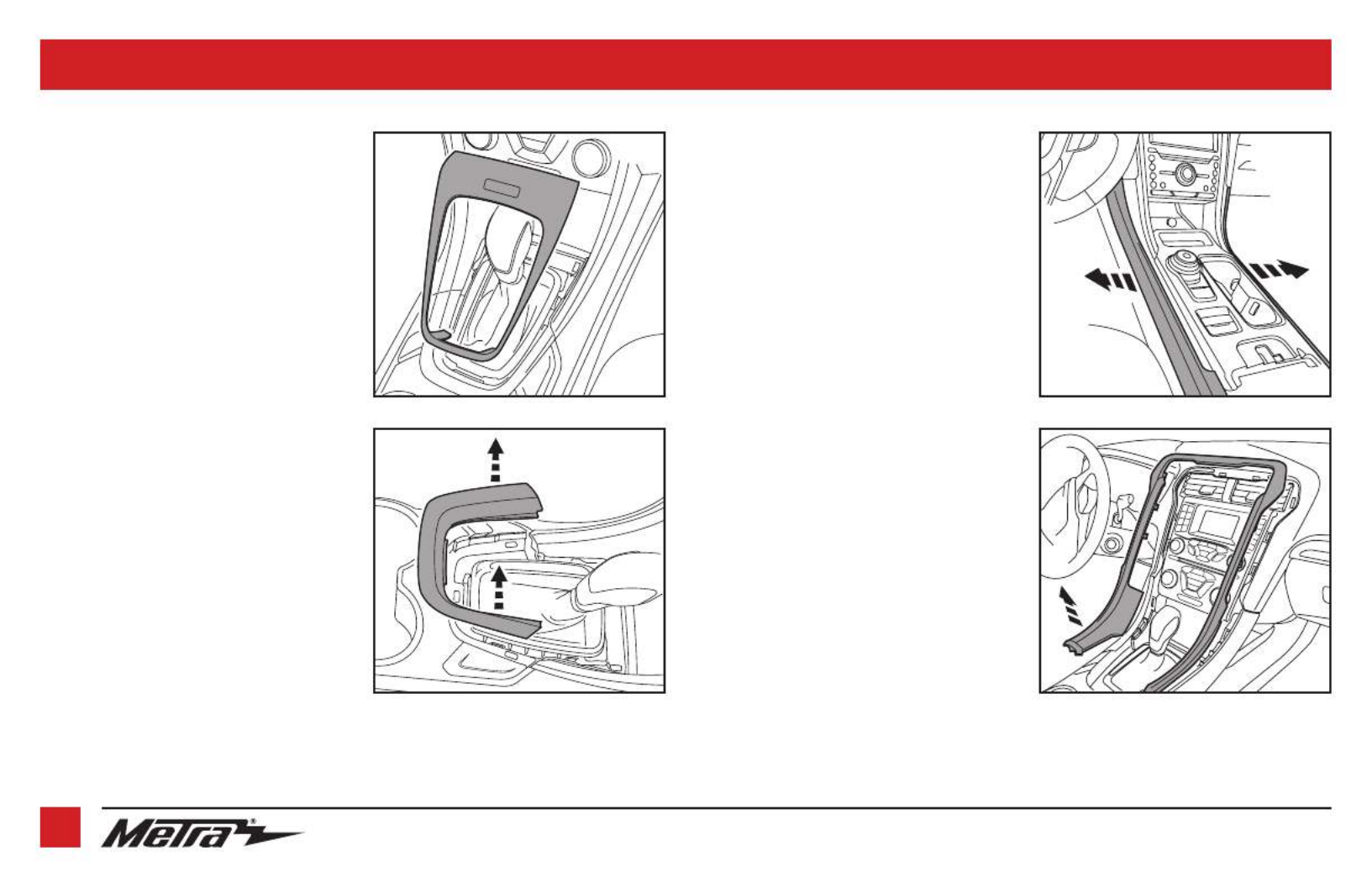

DASH DISASSEMBLY

(Figure B)

(Figure A) (Figure C)

(Figure D)
