I N S TA L L AT I O N I N S T R U C T I O N S

99-5843B

Attention! With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Integrated controls for info center

• Includes Axxess interface and wiring

• Painted matte black

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Passenger airbag light panel • D) Pocket • E) (2) Carriage bolts • F) (2) Keps nuts

• G) (4) #8 x 3/8” Phillips screws • H) (2) Panel clips • I) Axxess interface and harnesses (not shown) • J) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Socket wrench • T-25 Torx driver • Cutting tool

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly

–ISO DIN radio provision with pocket ..................4

–ISO DDIN radio provision .....................................4

Axxess interface installation .............................5-11

Final assembly .......................................................8

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with kit

Antenna Adapter: Included with kit

A B C

F G

D E

Ford Focus (with 4.2” screen) 2015-2018

Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com

speciﬁc applications

386.257.1187

MetraOnline.com

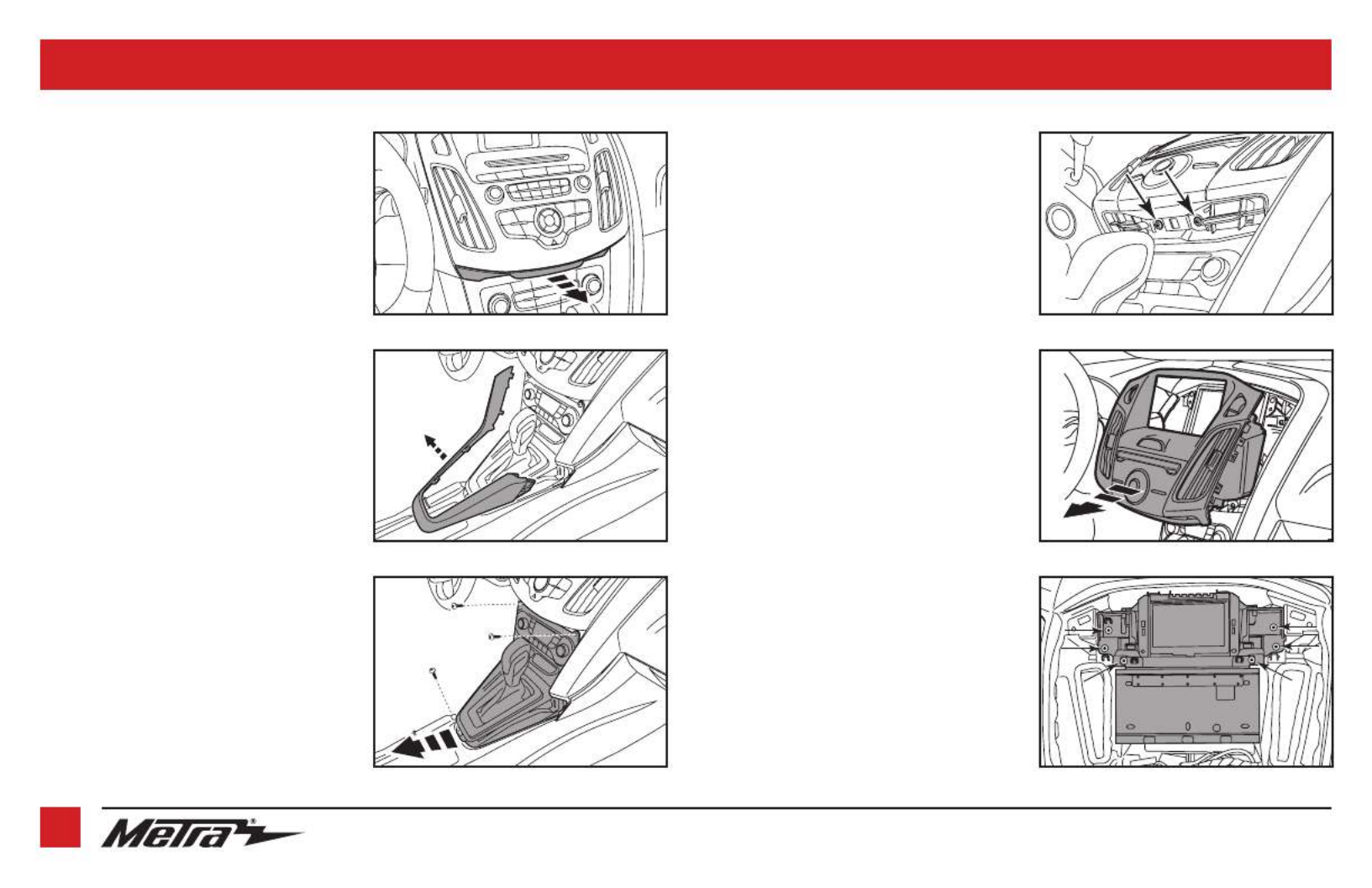

1. Unclip, unplug, and remove the trim

panel with the passenger airbag light

in it. Keep the airbag light for Kit

Preparation. (Figure A)

2. Unclip and remove the trim panel

around the shifter panel. (Figure B)

3. Remove (3) Phillips screws securing

the shifter panel, then unclip and slide

the shifter panel toward the rear of the

vehicle. (Figure C)

DASH DISASSEMBLY

4. Remove (2) T-25 Torx screws from the

bottom of the radio panel. (Figure D)

5. Unclip, unplug and remove the radio

control panel including the A/C vents.

(Figure E)

6. Remove (2) T-25 Torx screws securing

the radio, and (4) T-25 Torx screws

securing the display and bracket, and

then unplug and remove. (Figure F)

Continue to Kit Preparation

(Figure A) (Figure D)

(Figure B) (Figure E)

(Figure C) (Figure F)
