Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 12/9/22 INST99-5846B
I N S TA L L AT I O N I N S T R U C T I O N S
99-5846B
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
Patent # 10,579,232
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Integrated hazard button and passenger airbag light
• Radio can be mounted up top or at bottom
• Painted Matte Black
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 8mm & 9/32” Socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
Axxess Interface Installation ............................5-14
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into touchscreen
Antenna Adapter: Included
Ford F-150 (with 4.2” screen) 2013-2014
KIT COMPONENTS
• A) Radio/Display trim panel with touchscreen display • B) Radio/Display sub-trim panel upper (a) • C) Radio/Display sub-trim panel lower (b)
• D) Radio brackets upper (a)
• E) Radio brackets lower (b) • F) Pocket • G) (4) Panel clips • H) (11) #6 x 3/8” Phillips pan-head screws
• I) (4) #8 x 3/8” Phillips truss-head screws • J) Touchscreen display assembly and wiring harness
• K) Antenna adapter (not shown)
A B C D
H I J
E F G
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
2386.257.1187
|
MetraOnline.com
DASH DISASSEMBLY

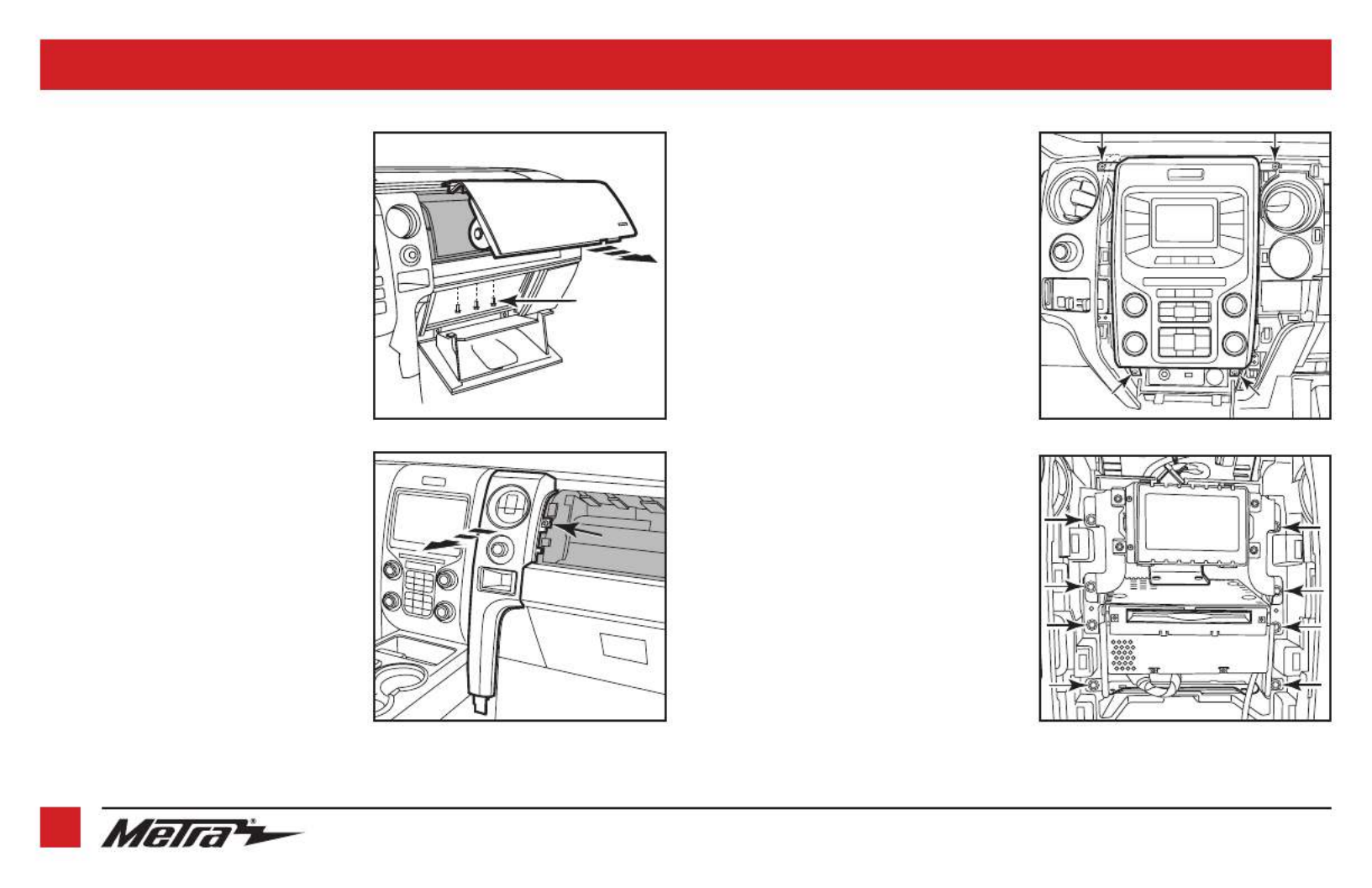

1. Open and lower the glove box, then
remove (3) 8mm bolts from inside the
glove box facing up. (Figure A)
2. Remove (1) 7mm screw securing the
trim panel to the right of the radio, then
unclip and set to the side. (Figure B)
3. Remove (4) 9/32” screws securing
the radio/climate control panel to the
dash, then unclip, unplug, and remove.
(Figure C)
(Figure C)(Figure A)
(Figure B) (Figure D)
4. Remove (4) 9/32” screws securing the
radio chassis, then unplug and remove.
(Figure D)
5. Remove (4) 9/32” screws securing
the factory display, then unplug and
remove. (Figure D)
6. Unsnap, unplug, and remove the
traction control button and save for kit
assembly.
Continue to Kit Preparation
