I N S TA L L AT I O N I N S T R U C T I O N S
99-5864CH
The World’s best kits.® MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 10/5/23 INST99-5864CH
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Included interface for climate and
steering wheel functions
• Integrated passenger airbag indicator
• Painted charcoal
Note: Factory B&O amplified sound
systems require an additional
interface sold separately.
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Blank panels (3), Heated steering wheel, Cooled seat buttons (L & R) • E) 2 and 3-button trim panels
• F) #8 x 3/8” Phillips screws (4) • G) Panel clips (6) • H) SYNC module brackets (not used) • I) HVAC interface and wiring harness (not shown) • J) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Kit Preparation 4 .......................................................
Kit Assembly
– ISO DIN radio provision with pocket 5 .................
– ISO DDIN radio provision 5 ...................................
Axxess Interface Installation 6-15 ...........................
Final Assembly 11 ......................................................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
Antenna Adapter: Included with kit
S
old Separately: USB replacement HUB AXFD-USB
or AXFD-USB2.
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
*With factory dual zone climate controls
A B C D E
G HF
Ford * and F-150 2015-2020
F-250/350/450/550 XL * 2020-2022
2386.257.1187
|
MetraOnline.com

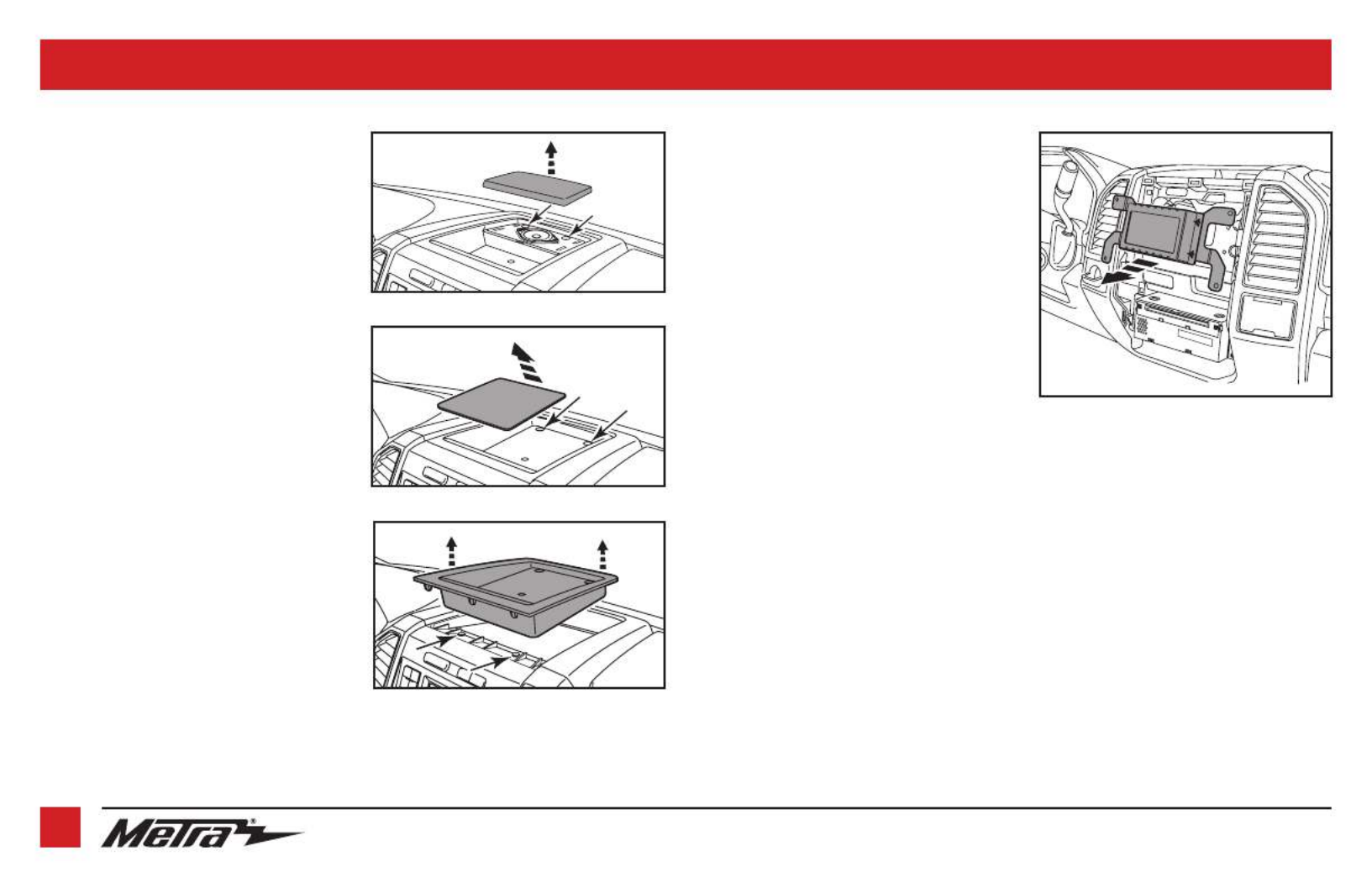

DASH DISASSEMBLY
1. For vehicles with a center channel
speaker: Unclip and remove the speaker
grille in the center of the dash above the
radio/climate control panel, and then
remove the (2) 9/32” screws exposed.
(Figure A)
2. For vehicles without a center channel
speaker: Remove the rubber pad in the
shallow pocket above the radio/climate
control panel, and then remove the (2)
9/32” screws exposed. (Figure B)
3. Unclip and remove the panel above the
radio/climate control panel, and then
remove the (2) 9/32” screws from the
top of the radio/climate control panel.
(Figure C)
Ensure that the vehicle is completely off before
proceeding onto the following (5) steps
4. Using the panel removal tool, carefully
unclip, unplug, and remove the radio/
climate control panel.
5. Remove the 9/32” Phillips screws securing
the display screen:
(4) for the 4.2-inch display screen models,
(6) for 8-inch display screen models, then
unplug and remove the screen. (Figure D)
Continued on the next page
(Figure D)
(Figure C)
(Figure A)
(Figure B)
