I N S TA L L AT I O N I N S T R U C T I O N S

99-6520B

U.S. Patent # D755,778 D768,126

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air bag

indicator light, must be secure before cycling

the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Included interface retains factory screen

• Painted matte black to match factory finish

Note: Driver Convenience Group. • Does not retain sound from

• Track and launch control features from will be lost.SRT Package

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) A/C button housing • D) Pocket • E) Console bracket • F) #8 x 3/8" Phillips pan-head screws (6)

• G) Panel clips (2) • H) Climate extension harness (not shown) • I) Axxess interface and harness (not shown) TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly 2-3 ..............................................

Kit Preparation 4 .......................................................

Kit Assembly

– ISO DIN radio provision with pocket 5 .................

– ISO DDIN radio provision 5 ...................................

Axxess interface installation 6-12 ...........................

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Interface and harnesses included

Antenna Adapter: 40-EU10 (sold separately)

AXXESS Steering Wheel Control Interface (sold

separately)

Dodge Journey 2011-2020

F G

B C D E

Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com

specific applications.

386.257.1187

MetraOnline.com

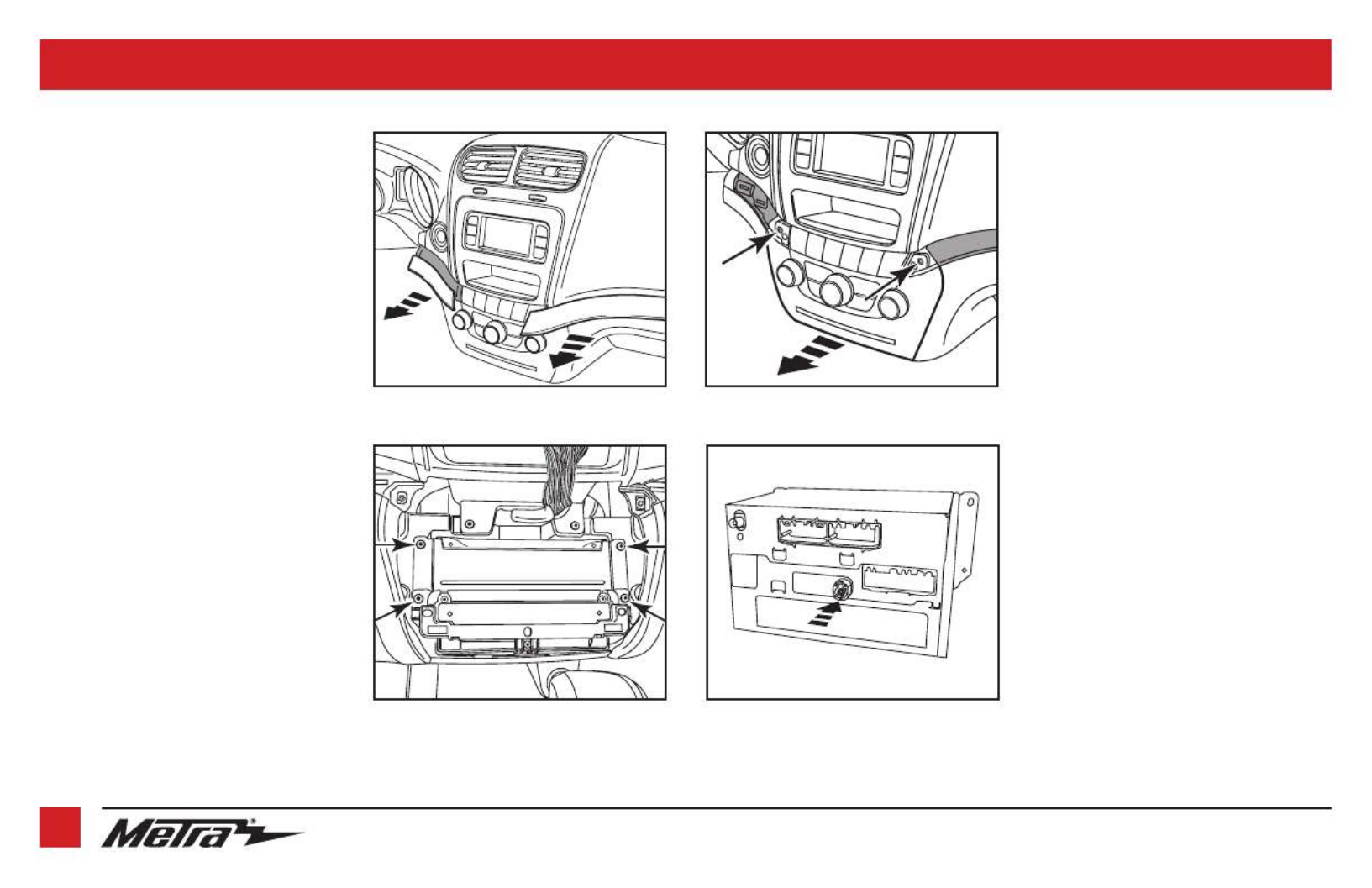

1. Using the panel removal tool, carefully

unclip and remove the trim panel along

the top of the glove box over to the

passenger’s side A/C vent. (Figure A)

2. Unsnap and remove the small trim panel

to the left of the hazard button. (Figure A)

3. Remove (2) Phillips screws securing the

radio/climate control panel, then unclip,

unplug and remove the panel. (Figure B)

Note: A climate extension harness is

provided to relocate the climate controls

to a lower position in the center console.

4. Remove (4) Phillips screws securing the

radio chassis. Slide the chassis out, then

unplug and remove the chassis. (Figure C)

Note: The white 4-pin harness will be

reused in Kit Assembly.

Continued on the next page

DASH DISASSEMBLY

(Figure A)

(Figure C) (Figure D)

(Figure B)
