I N S TA L L AT I O N I N S T R U C T I O N S

99-6525

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air bag

indicator light, must be secure before cycling

the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Integrated buttons and included interface for climate functions

• Painted matte black (99-6525B) or high gloss black (99-6525HG)

Note: Driver Convenience Group. • Does not retain sound from

• Track and launch control features from will be lost.SRT Package

KIT COMPONENTS

• A) Radio trim panel with climate controls • B) Radio brackets • C) Lower support bracket • D) Pocket • E) Metal panel clips (2) • F) Plastic panel

clips (2) • G) #8 x 3/8" Phillips pan-head screws (2) • H) #8 x 1/2" Phillips countersunk flat-head screws (2) • Climate extension cable (not shown)

• AXXESS interface and wiring harness (not shown) TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• T-30 Torx driver

TABLE OF CONTENTS

Dash Disassembly 2 ..................................................

Kit Assembly

– ISO DIN radio provision with pocket 3 .................

– ISO DDIN radio provision 4 ...................................

AXXESS interface installation 5-10 ...........................

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included

Antenna Adapter: 40-EU55 (sold separately)

AXXESS steering wheel control interface

(sold separately)

Chrysler 300 2011-2014

A B C D E

G H

386-257-1187

MetraOnline.com

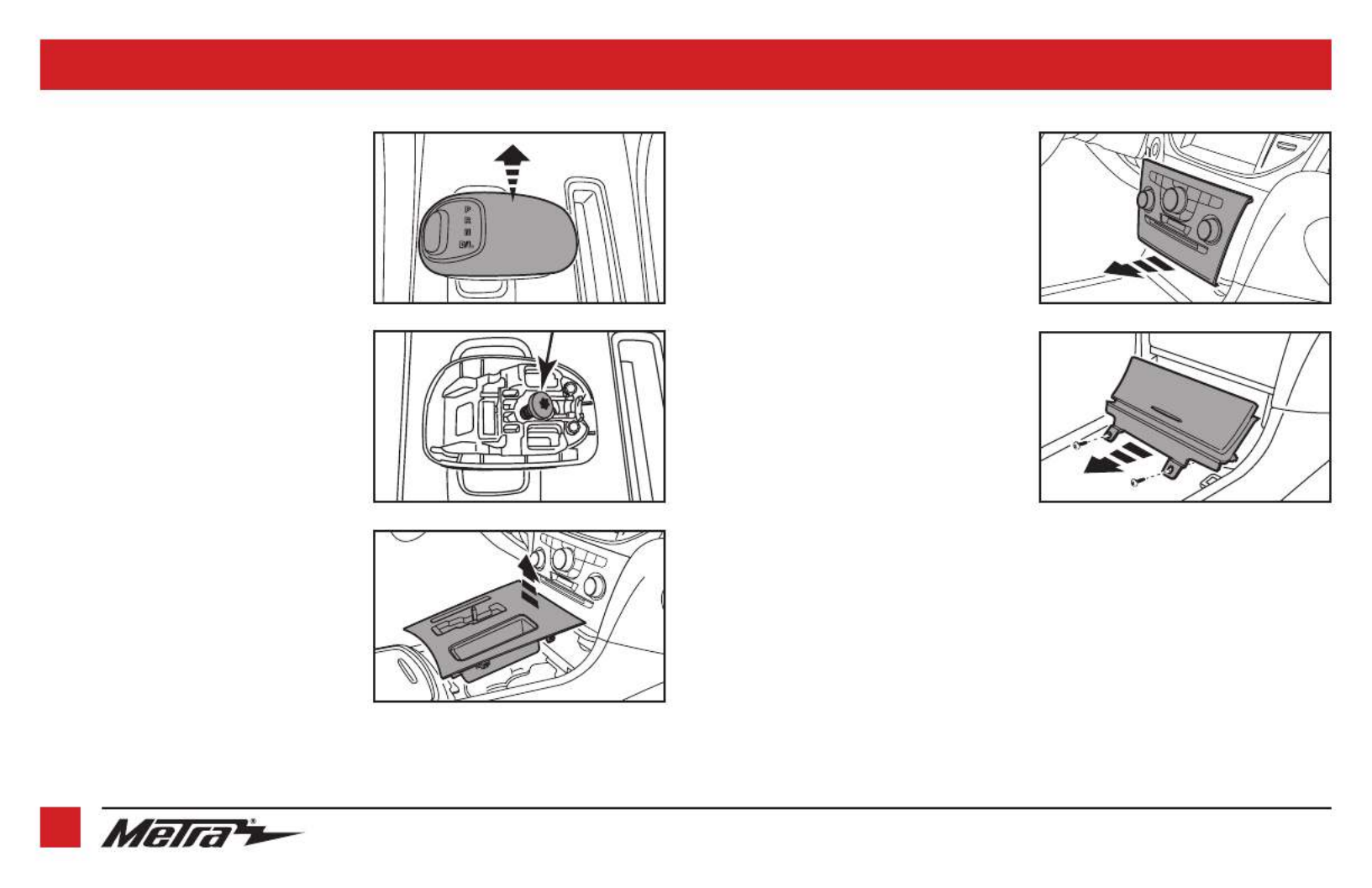

DASH DISASSEMBLY

1. Unsnap and remove the top half of the

shift knob. (Figure A)

2. Remove (1) T-30 Torx screw securing the

knob and then remove the knob. (Figure B)

3. Unsnap and remove the panel

surrounding the shift knob. (Figure C)

4. Using the panel removal tool, carefully

unclip, unplug and remove the radio/

climate control panel. (Figure D)

Note: The harness removed from

this panel will connect to the climate

extension cable.

5. Remove (2) Phillips screws securing the

pocket below the climate control panel,

and then unclip and remove the pocket.

(Figure E)

6. Remove the (4) Phillips screws securing

the radio chassis, and then unplug and

remove the chassis from the dash cavity.

Note: The white round cable connected

to the radio chassis will connect into

the Axxess interface to drive the factory

display screen.

Continue to Kit Assembly

(Figure D)(Figure A)

(Figure C)

(Figure E)(Figure B)
