Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 4/16/19 INST99-7385B
I N S TA L L AT I O N I N S T R U C T I O N S
99-7385B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Climate display • D) Pocket • E) (12) #8 x 3/8” Phillips screws • F) Wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Wire
cutter • Crimp tool • Solder gun • Tape • Connec-
tors (example: butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
Wiring Instructions ............................................4-5
Installation .............................................................5
Final Assembly .......................................................6
(ASWC-1) steering wheel control settings .......6-10
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering wheel control interface: ASWC-1 Included with kit
12v to 6v camera stepdown: AX-CAM6V included with kit
A B C D E
Hyundai Santa Fe
(without NAV)
2017-2018/
Santa Fe Sport
(without NAV, with display radio†)
2017-2018
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Includes climate display and ASWC-1
• Retains audio controls on the
steering wheel
• Retains the factory backup camera
• Provides NAV outputs (speed sense)
• Includes an AX-CAM6V 12 TO 6V
stepdown
• Painted matte black
† Display radio is an Android Auto / Apple CarPlay radio
1.800.221.0932
|
MetraOnline.com
2

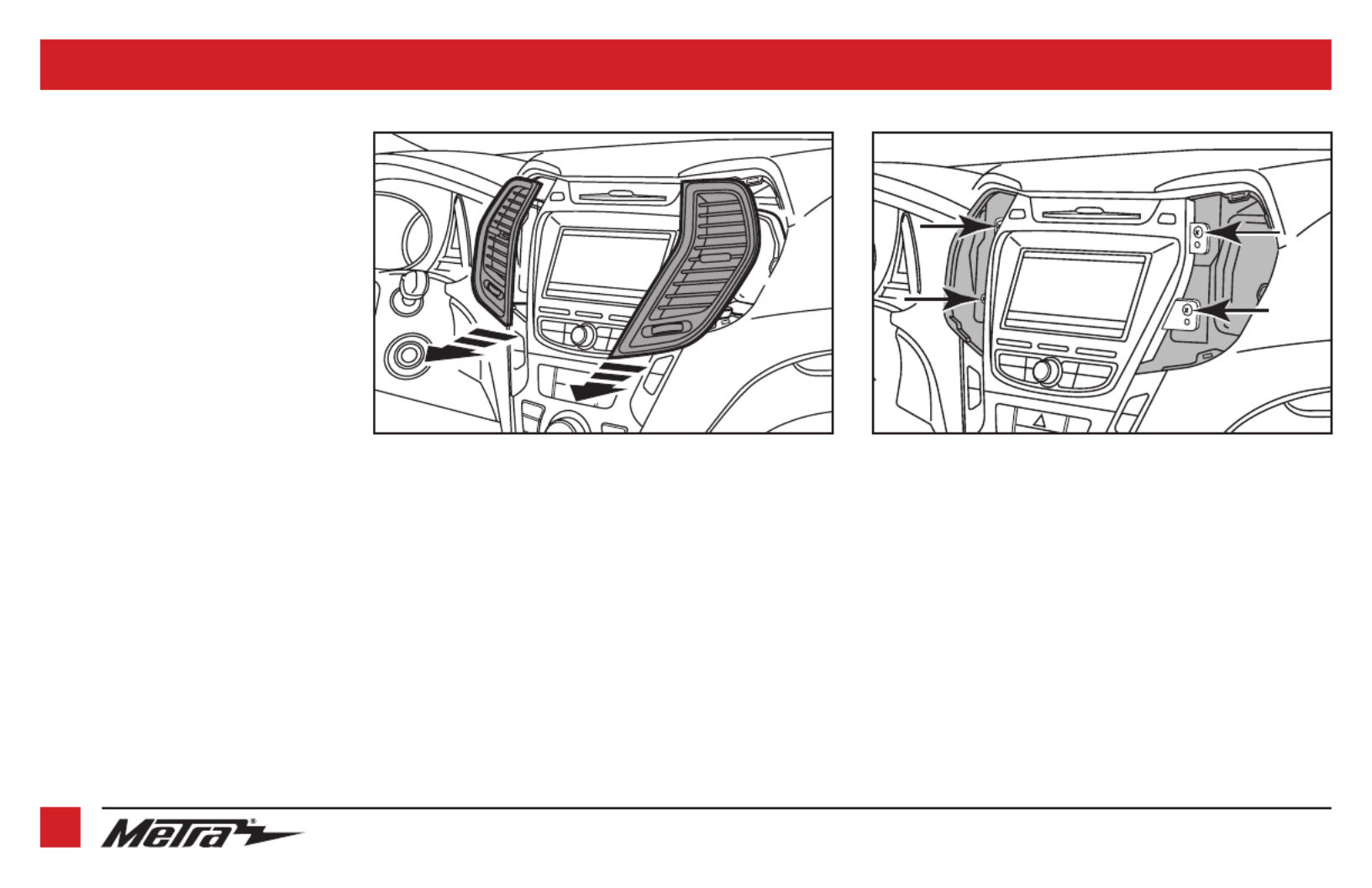

1. Unclip and remove the center a/c vents.
(Figure A)
2. Remove (4) Phillips screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure B)
Continue to Kit Assembly
DASH DISASSEMBLY
(Figure A) (Figure B)
