Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/11/20 INST99-7397B
I N S TA L L AT I O N I N S T R U C T I O N S
99-7397B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted scratch resistant matte black
• Retains factory steering wheel controls (pre-wired in included harnessing)
• Radio harness included with connections to retain factory camera
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Panel clip legs • D) Pocket • E) Panel clips (2) • F) #6 x 3/8” Phillips screws (4)
• G) #8 x 3/8” Phillips screws (8) • H) Steering wheel control interface (not shown) • I) 6 volt factory camera adapter (not shown)
• J) Radio wire harness (not shown) • K) Antenna adapter (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench • T-25 Torx driver • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation ....................................................2-3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
AXXESS Interface installation ............................5-11
Final Assembly ...................................................... 11
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: Included in kit
Antenna Adapter: Included in kit
SWC Interface: Included in kit
6v Camera Adapter: Included in kit
A B C
G
D E
F
Kia Soul (Non-NAV) 2020
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
1.800.221.0932
|
MetraOnline.com
2

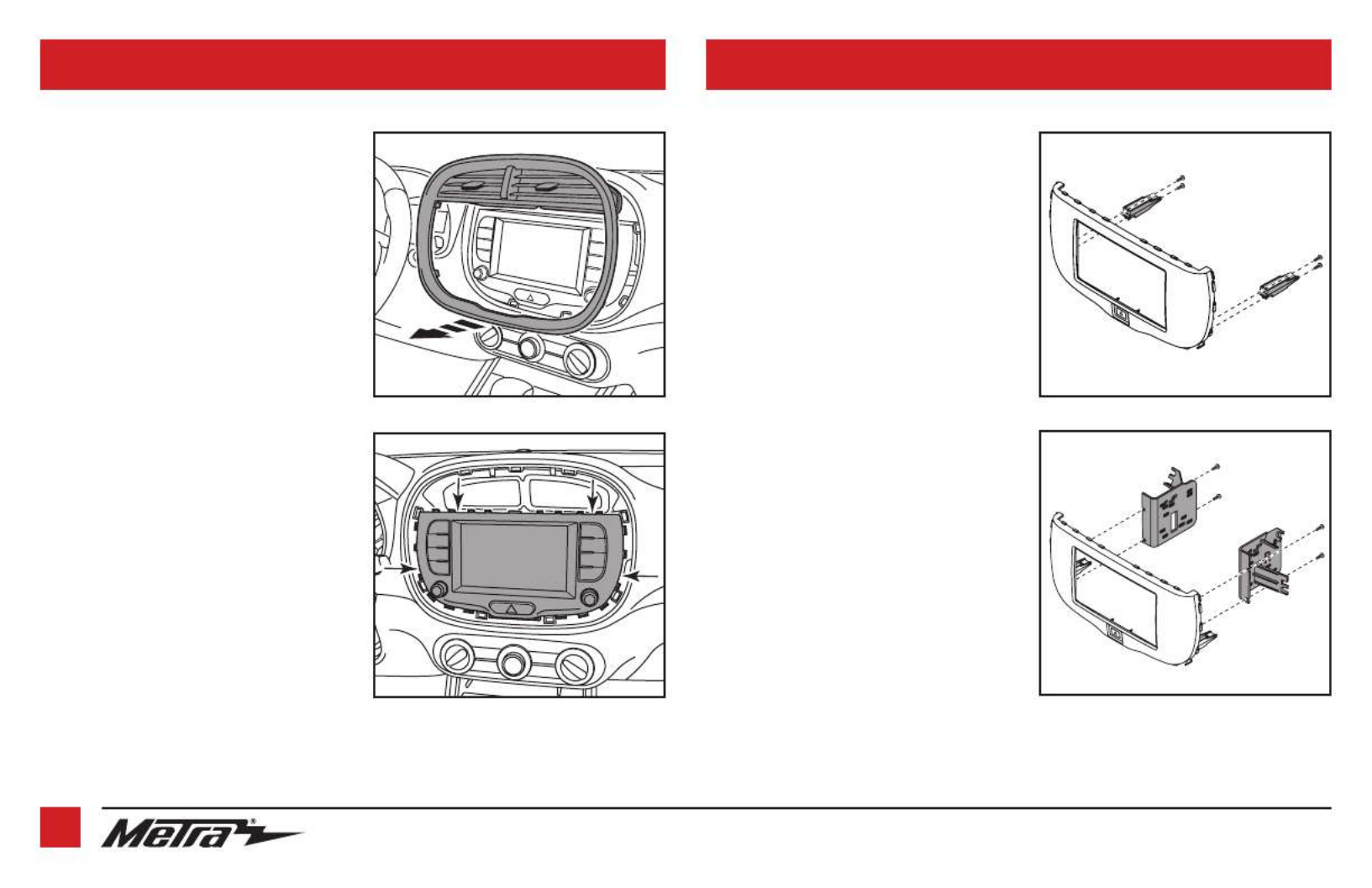

1. Unclip and remove the trim panel
around the factory radio including the
a/c vents. (Figure A)
2. Remove (4) Philips screws securing the
factory radio then unclip and remove
the radio. (Figure B)
Continue to Kit Preparation
(Figure B)
(Figure A)
1. Attach the (2) included onto clip legs
the using (4) #6 x 3/8” radio trim panel
Phillips screws supplied.
Note: The clip legs will only go on one
way. (Figure A)
2. Attach the radio brackets radio to the
trim panel using (4) #(8) x 3/8” Phillips
screws supplied. (Figure B)
2. Attach the to the .panel clips clip legs
Continue to Kit Preparation
DASH DISASSEMBLY KIT PREPARATION
(Figure B)
(Figure A)
