APPLICATIONS
METRA. The World’s best kits.®metraonline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
REV. 5/5/2018 INST99-7612
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
INSTALLATION INSTRUCTIONS FOR PART 99-7612
®
U.S. PATENT # D719,560
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• 7612A-Coated with brushed aluminum look
• 7612B-Painted matte black
• A) Radio housing • B) Radio housing brackets • C) Pocket • D) (14) #8 x 3/8” Phillips screws
• E) (2) #8 x 1/2” Phillips screws • F) 7612 Wire harness
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7550 - 1995-up Nissan • 70-7551 - 1995-up Nissan amp integration
Antenna Adapter: • 40-NI11 - Nissan
• Panel removal tool • Phillips screwdriver • Socket wrench
TOOLS REQUIRED
AB C D E F

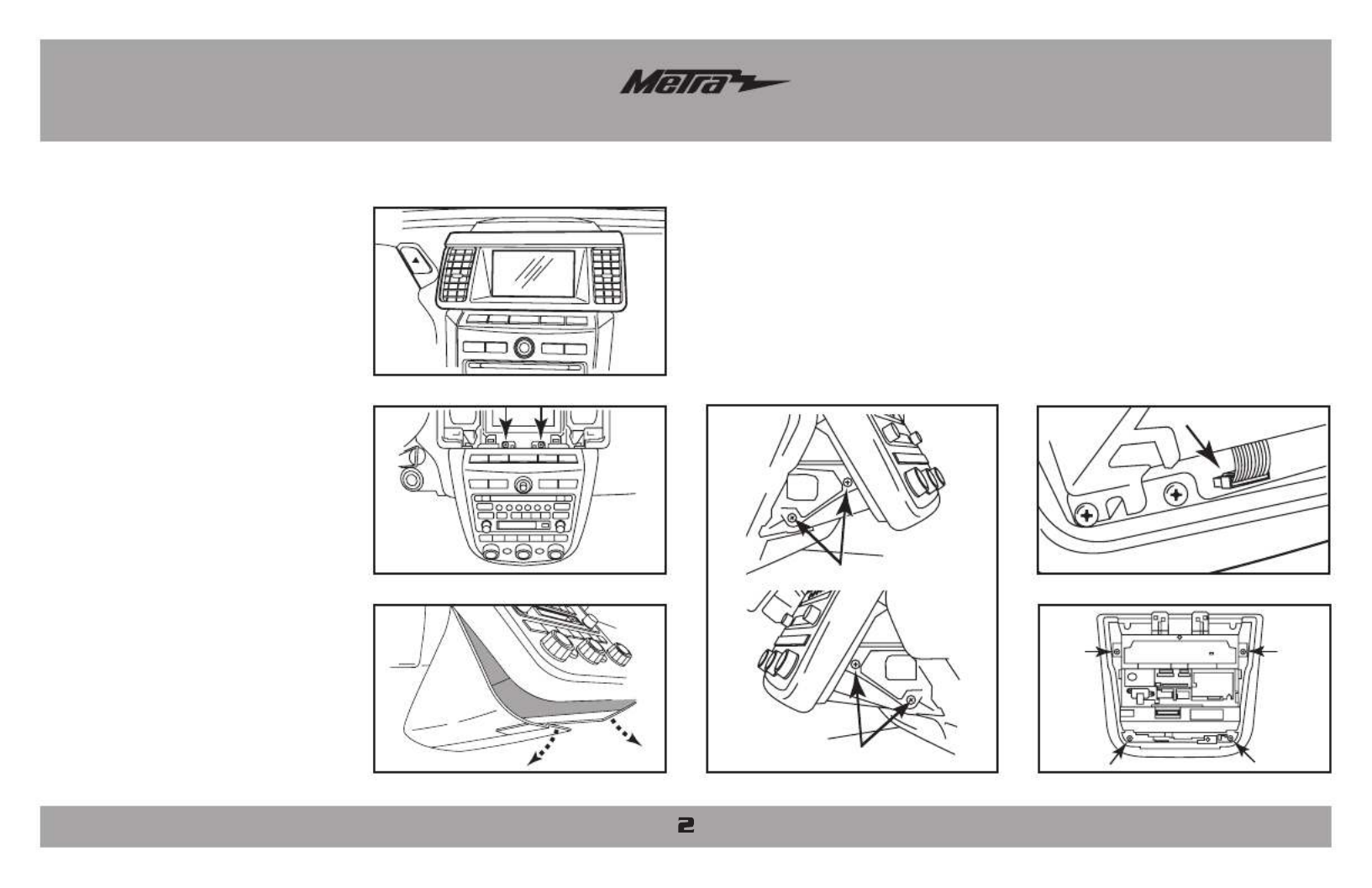

Dash Disassembly
– Nissan Murano 2003-2007 (without OE NAV)* ......2-3
*Note: This kit will work in NAV models, but you will lose the
OE NAV controls, and voice prompts.
Kit Assembly
– ISO DIN radio provision with pocket 3-4 ...................
– ISO DDIN radio provision 4-5 ...................................
Wiring Instructions ................................................ 5
99-7612
®
1. Unclip and remove the vent panel
above the radio. (Figure A)
2. Remove (2) Phillips screws
exposed behind the vent panel.
(Figure B)
3. Unclip and remove the lower trim
panel around the bottom of the
radio panel. (Figure C)
Dash Disassembly
(Figure A)
(Figure E)
(Figure B) (Figure F)
(Figure C) (Figure D)
4. Remove (2) Phillips screws on each
side of the radio chassis exposed
behind the lower trim panel.
(Figure D)
5. Remove radio/climate control
assembly from the sub dash.
6. Remove (4) Phillips screws securing
the radio chassis to the factory
radio trim panel. Lift up slightly and
proceed to step 7. (Figure E)
7. Unlock the connector on the switch
panel and remove the cable joining
the chassis and switch panel.
(Figure F)
Continued on next page
Left side
Right side
