METRA - The World’s best kits ®metraonline.com

REV. 11/14/2017 INST99-7803G

Installation instructions for part 99-7803G

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

U.S. PATENT # D756,348

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Retains all climate control systems including dual-zone

• Painted gray to match the factory finish

• A) Radio housing trim panel • B) Radio brackets • C) Pocket • D) Panel clip legs • E) (2) Panel clips

• F) (2) Speed clips • G) (2) #10 x ¾” Phillips screws • H) (4) #4 x 3/8” Phillips pan-head screws

• I) (8) #8 x 3/8” Phillips truss-head screws • Wiring harness (not shown)

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • Included with kit

Antenna Adapter: • Not Required

• Panel removal tool • Phillips screwdriver

TOOLS REQUIRED

AB C D E

F G H I

Dash Disassembly ................................................. 2

Kit Preparation ....................................................... 3

Kit Assembly

– ISO DIN radio provision with pocket 4 ......................

– ISO DDIN radio provision 5 ......................................

Axxess Interface Installation ................................ 6

Table of Contents

Note: The door on the factory pocket below the

radio will not function properly with the 99-7803G

installed. As an alternate solution, Metra offers the

88-00-7803 replacement pocket (sold separately).

99-7803G

Attention! For auto-climate control models only. Turn the fan speed all the way up, and

then turn the recirculation button off, prior to turning the vehicle off and removing the

radio/climate control assembly.

Unclip and remove the shift lever trim ring. (Figure A)

Unclip and remove the coin-tray/ashtray and then remove the (2) Phillips screws

exposed. (Figure B)

3. Remove the (2) Phillips screws from the bottom of pocket, then unclip and

remove. (Figure C)

4. Remove the (2) Phillips screws facing up, underneath the radio/climate control

assembly. (Figure D)

5. Push and hold the hazard button down. Carefully insert a small panel removal

tool into the slot below the button, and then push down to release the center clip.

(Figure E)

Unclip and remove the A/C vent panel, and then remove the (3) Phillips screws

exposed. (Figure F)

Note: You can use a hook tool to grasp the panel inside of the vent and pull

toward the rear of the vehicle. Be careful not to scratch the panel.

7. Unclip and remove the radio/climate control assembly.

Continue to Kit Preparation

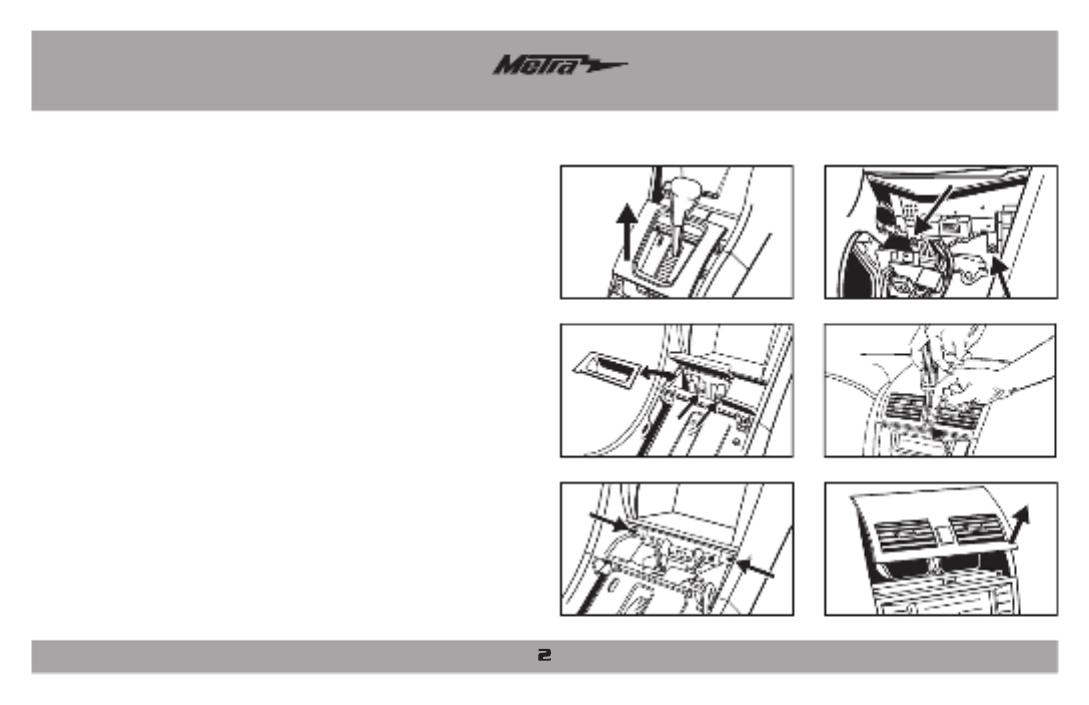

Dash Disassembly

(Figure A) (Figure D)

(Figure F)

(Figure B) (Figure E)

(Figure C)
