CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
The World’s best kits.® MetraOnline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 4/30/18 INST99-7809B
I N S TA L L AT I O N I N S T R U C T I O N S
99-7809B
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Climate control • D) Pocket • E) (8) #8 x 3/8” Phillips screws • F) (2) #10 x 3/4” Phillips screws
• G) (2) #8 Speed clips • H) (8) PC-7871B Panel clips• Wire harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 5/16” socket wrench • Rotary cutting tool
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-4
Kit Assembly
– ISO DIN radio provision with pocket .................5
– ISO DDIN radio provision ....................................6
Wiring Instructions ................................................7
Kit Programming ...................................................8
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included
Antenna Adapter: Not required
Steering wheel control interface: ASWC-1
(sold separately)
Acura TSX 2004-2008
A B C D E
F G H
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
Attention! Turn the fan speed all the way up,
and then turn the recirculation button off,
prior to turning the vehicle off and removing
the radio/climate control assembly.
1. Unclip and remove the (2) trim
panels on either side of the radio. The
driver side trim will have the cabin
temperature sensor attached to it
(Figures A, B)
Note:
Complete removal should not
be necessary. If you do remove this
trim it must be reconnected prior to
programming the new climate controls.
2. Remove (1) Phillips screw on either side
of the radio.
3. Unclip and remove the hazard button
above the factory radio, and remove (1)
Phillips screw exposed between the a/c
vents. (Figure C)
4. Unclip and remove the pocket below the
radio. (Figure D)
Continued on the next page

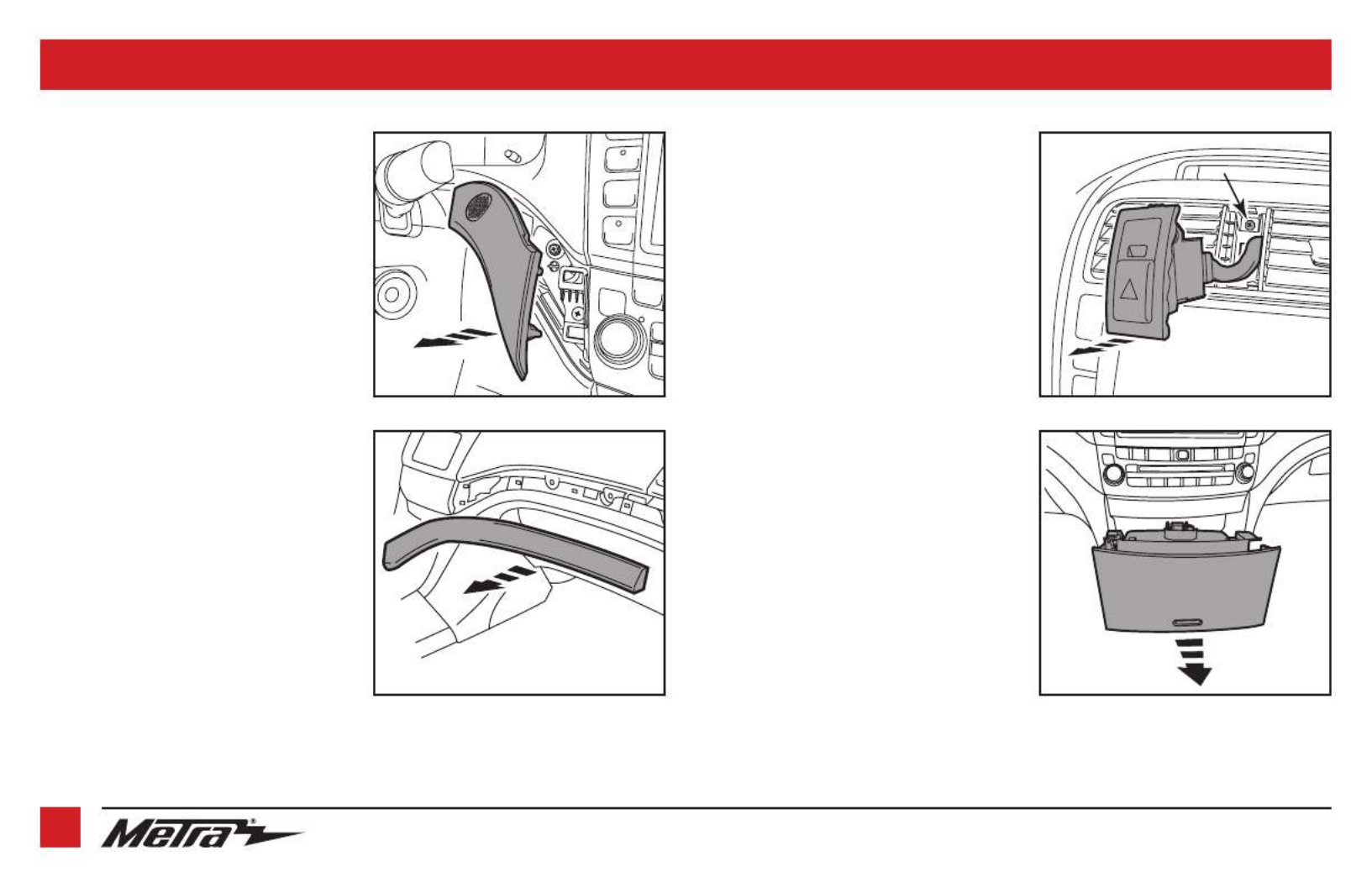

(Figure A) (Figure C)
(Figure B) (Figure D)
