AX-AB-LX2
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 7/15/20 INSTAX-AB-LX2
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Amplifier Location & Connections
-13 Speaker .............................................................2
-14 Speaker .............................................................3
Lexus IS 300 Amplifier Bypass Harness
2006-2009
Factory amp must stay plugged into vehicle in order for your factory
HVAC to work. When using the bypass harness only unplug connectors
that correspond with the amp bypass being used. All other remaining
plugs must stay plugged in with amp and remain in vehicle.
Refer to the following pages for the vehicle specific instructions for
wiring connections. Wiring connections vary per amplifier design.
There is a 13 speaker system, and a 14 speaker system.
If it’s uncertain whether the vehicle contains a specific speaker or not,
test the wires with a tone generator, or check to see if the factory
wires are populated on the vehicle side. Alternatively, the wires can
be tested for impedance with a multimeter.
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
2
AMPLIFIER LOCATION & CONNECTIONS
13 Speaker Amplifier:
Connector A:
Green/White -Subwoofer Coil 1 +
Yellow/Brown -Subwoofer Coil 2 +
Brown/White -Rear Right Door Tweeter/Midrange Speaker +
White -Front Left Door Woofer +
White/Red -Subwoofer Coil 1 -
Green/Purple -Subwoofer Coil 2 -
White/Blue -Rear Left Door Tweeter/Midrange Speaker -
Pink -Rear Left Door Tweeter/Midrange Speaker +
Blue/Pink -Rear Right Door Tweeter/Midrange Speaker -
White/Black -Front Left Door Woofer -
Connector B:
Gray -Front Right Door Woofer +
Yellow/Blue -Front Left Door Tweeter/Midrange Speaker +
Green/Orange -Rear Left Door Woofer +
Black/Yellow -Rear Right Door Woofer +
Gray/Black -Front Right Door Woofer -
Yellow/Black -Front Left Door Tweeter/Midrange Speaker -
Yellow/Orange -Front Right Door Tweeter/Midrange Speaker -
Yellow/Red -Front Right Door Tweeter/Midrange Speaker +
Green/Red -Rear Left Door Woofer -
Black/Green -Rear Right Door Woofer –

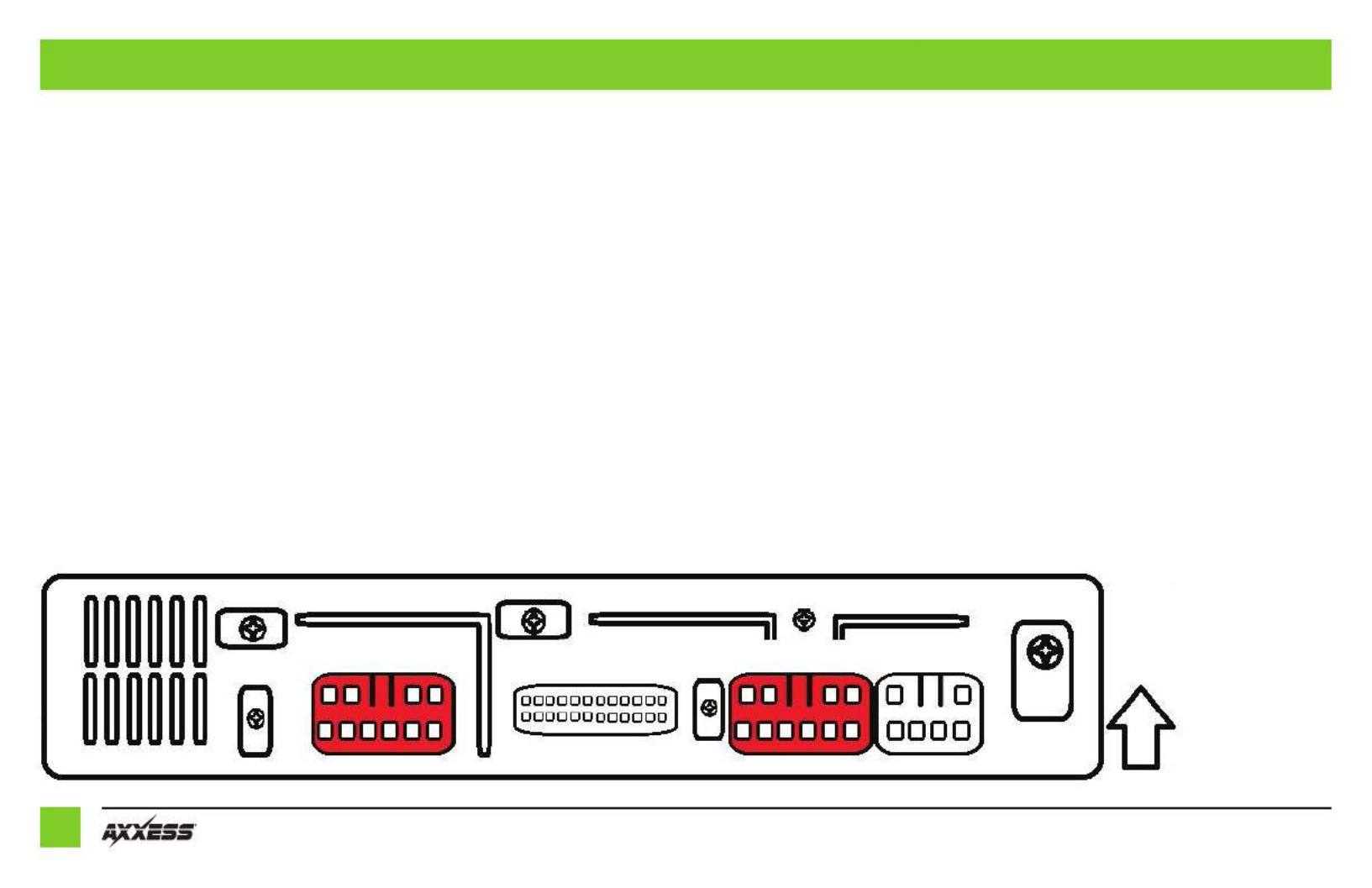

Amplifier Location: Right Rear of Trunk
Connector AConnector B
