Side 1/4

AX-DSPHNS

I N S TA L L A T I O N I N S T R U C T I O N S

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

TABLE OF CONTENTS

20-Pin Harness Pinout...........................................2

Additional Wiring & Notes ....................................3

AX-DSP T-Harness

The Axxess T-harness is a basic and simple plug-n-play harness for easy installation of the AX-DSP (sold separately) for vehicle

speciﬁc applications. Most T-harnesses created by Axxess will either have a 4-pin or 8-pin harness, with the speaker wires pinned.

If you are installing a 4-channel ampliﬁer with the AX-DSP, leave these connectors disconnected. The only reason for connecting

these harnesses together would be if the AX-DSP is being used for adding a subwoofer ampliﬁer only. Some T-harnesses require

additional wiring and/or installation steps. Refer to the following page for a pinout legend for the 20-pin harness, and also

additional wiring and notes.

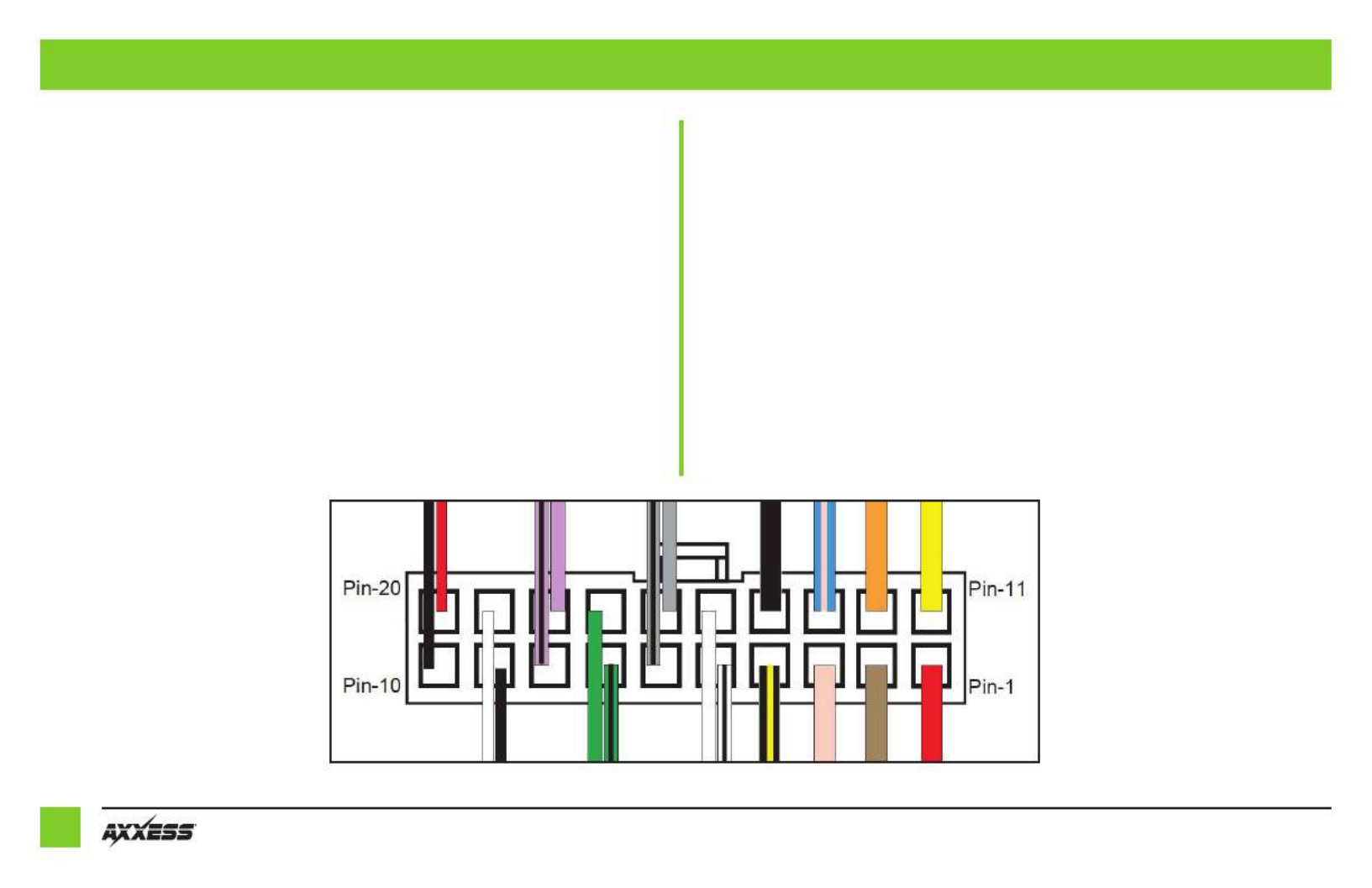

20-PIN HARNESS PINOUT

Pin-1 Accessory PowerRed

Pin-2 Brown Not Applicable

Pin-3 CAN-HI (CAN +)Pink

Pin-4 Black/Yellow Future Use

Pin-5 Front Left Speaker (-)White/Black

Pin-6 Gray/Black

Front Right Speaker (-)

Pin-7 Rear Left Speaker (-)Green/Black

Pin-8 Purple/Black

Rear Right Speaker (-)

Pin-9 RCA Input 5 (-)

Pin-10 RCA Input 6 (-)

Pin-11 Yellow Battery Power

Pin-12 Control Wire for the AX-BASSKNOBOrange

Pin-13 CAN-LO (CAN -)Blue/Pink

Pin-14 GroundBlack

Pin-15 Front Left Speaker (+)White

Pin-16 Front Right Speaker (+)Grey

Pin-17 Rear Left Speaker (+)Green

Pin-18 Rear Right Speaker (+)Purple

Pin-19 RCA Input 5 (+)

Pin-20 RCA Input 6 (+)

Wire View of Harness
