Installation Instructions for AX-TOYCAM3 Installation Instructions for AX-TOYCAM3

FEATURES

• Retains the factory back-up camera to an aftermarket radio

• Allows an aftermarket camera to be added to the factory radio screen*

* Display and navigation model radios only

INTERFACE COMPONENTS

• AX-TOYCAM3 harness

AX-TOYCAM3

Toyota Back-Up Camera Retain/Add-On

2013-2016

SCION

FRS 2016

iM 2016

tC 2016

TOYOTA

4-Runner 2014-2016

4-Runner (without NAV) 2013

Avalon 2015-2016

Camry 2014-2016

Corolla 2014-2016

Highlander 2014-2016

Prius C 2015

Prius V 2015

Rav-4 2015-2016

Rav-4 (after build

date Nov. 2013) 2014

Sienna 2015

Sequoia 2014-2016

Tacoma 2014-2016

Tundra 2014-2016

Venza 2015-2016

• Cutting tool • Tape • Crimping tool

• Connectors (example: butt connectors, bell caps, etc.)

APPLICATIONS

TOOLS REQUIRED

CAUTION!

All accessories, switches, climate controls panels, and especially air bag indicator lights

must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

K PNOWLEDGE IS OWER

Enhance your installation and fabrication skills by

enrolling in the most cognized and spected re re

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for mo information and take st eps re

toward a better tomorrow.

Metra recommends MECP

certified technicians

Connections to be made

The AX-TOYCAM3 can be connected two different ways

To retain the factory back-up camera to an aftermarket radio:

• Connect the wire to chassis ground.Black

• Connect the Yellow wire to accessory power. *

• Connect the male Yellow RCA jack to the rear camera input of the aftermarket radio.

•

Connect the reverse wire from the aftermarket radio, to the reverse signal in the vehicle.

• Disregard the loose

Green/Purple

wire, it will not be used in this application.

* It is highly recommended to use the AX-CAM6V (sold separately) to provide the camera

with the proper voltage.

To allow an aftermarket camera to be added to the OEM screen:

• Connect the wire to the ground wire of the aftermarket camera.Black

• Connect the power wire of the aftermarket camera to accessory power.

• Tape off and disregard the Yellow wire, it will not be used in this application.

• Connect the female Yellow RCA jack to the aftermarket camera.

The following (2) steps are only required if

a wire is present in the factory harnessnot

•

If a wire is not present in pin-2 of the 28-

pin connector of the factory radio, unplug

the connector, then insert the metal pin

of the loose wire into it. Green/Purple

Connect the harness back into the radio

• Connect the other end of the loose

Green/Purple wire to the reverse

wire of the vehicle.

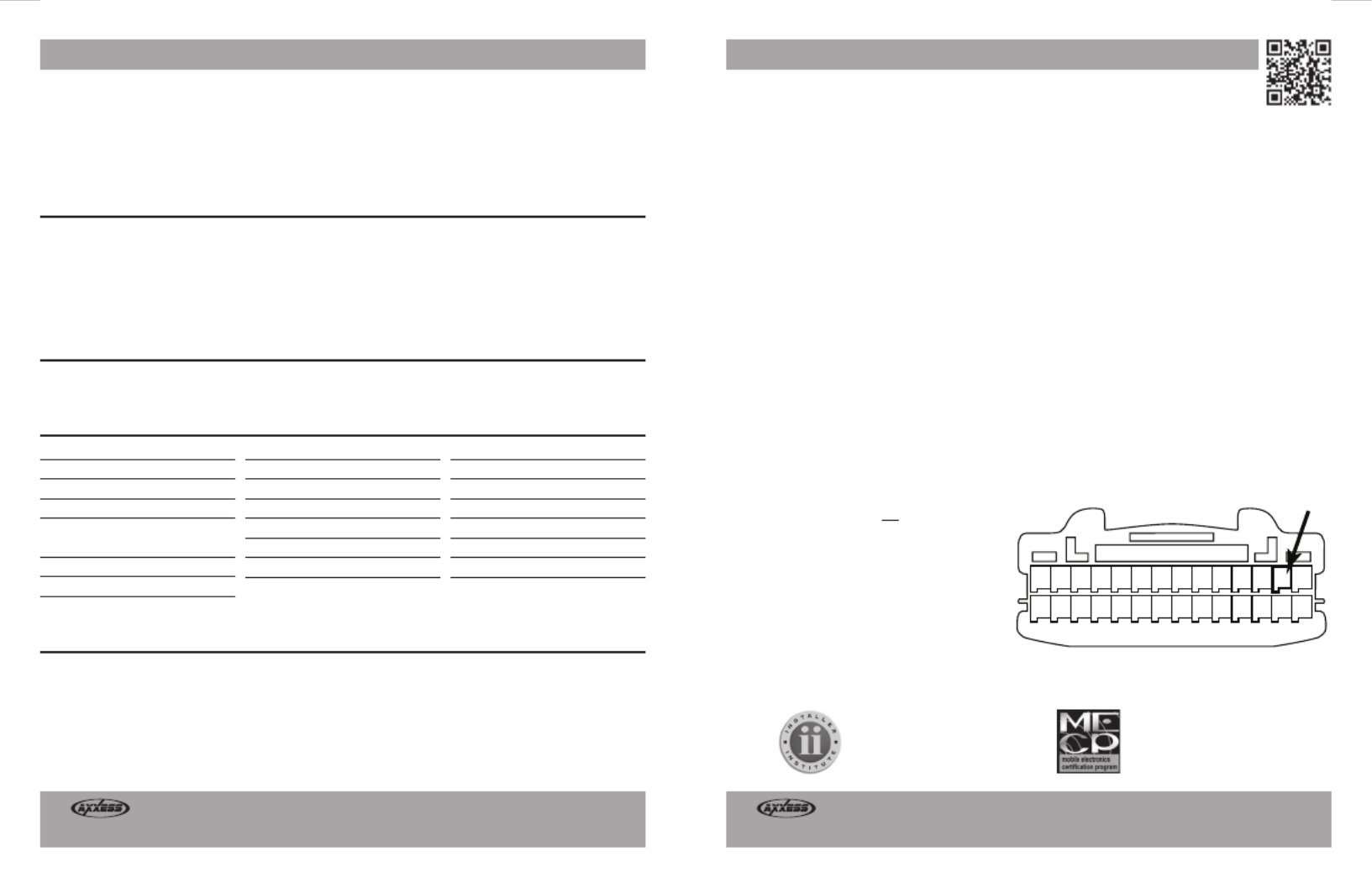

14 13 12 11 10 9 8 7 6 5 3 2 4 1

28 27 26 25 24 23 22 21 20 19 18 17 16 15

This is the wire view of the connector in the vehicle

28 Pin Harness
