CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

AXABH-CH3

I N S TA L L AT I O N I N S T R U C T I O N S

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Connections

Fiat 500X 2015-2017 2 .............................................

Jeep Renegade 2015-Up 2 ......................................

APPLICATIONS

Fiat

500X 2015-2017 ................................

Jeep

Renegade 2015-2020 ......................

Refer to the following pages for the vehicle specific instructions for wiring connections. Wiring connections vary per vehicle. Please note that

there are (2) different wiring harnesses included, and the instructions for each harness will be listed.

If it’s uncertain whether the vehicle contains a specific speaker or not, test the wires with a tone generator, or check to see if the factory wires

are populated on the vehicle side. Alternatively, the wires can be tested for impedance with a multimeter.

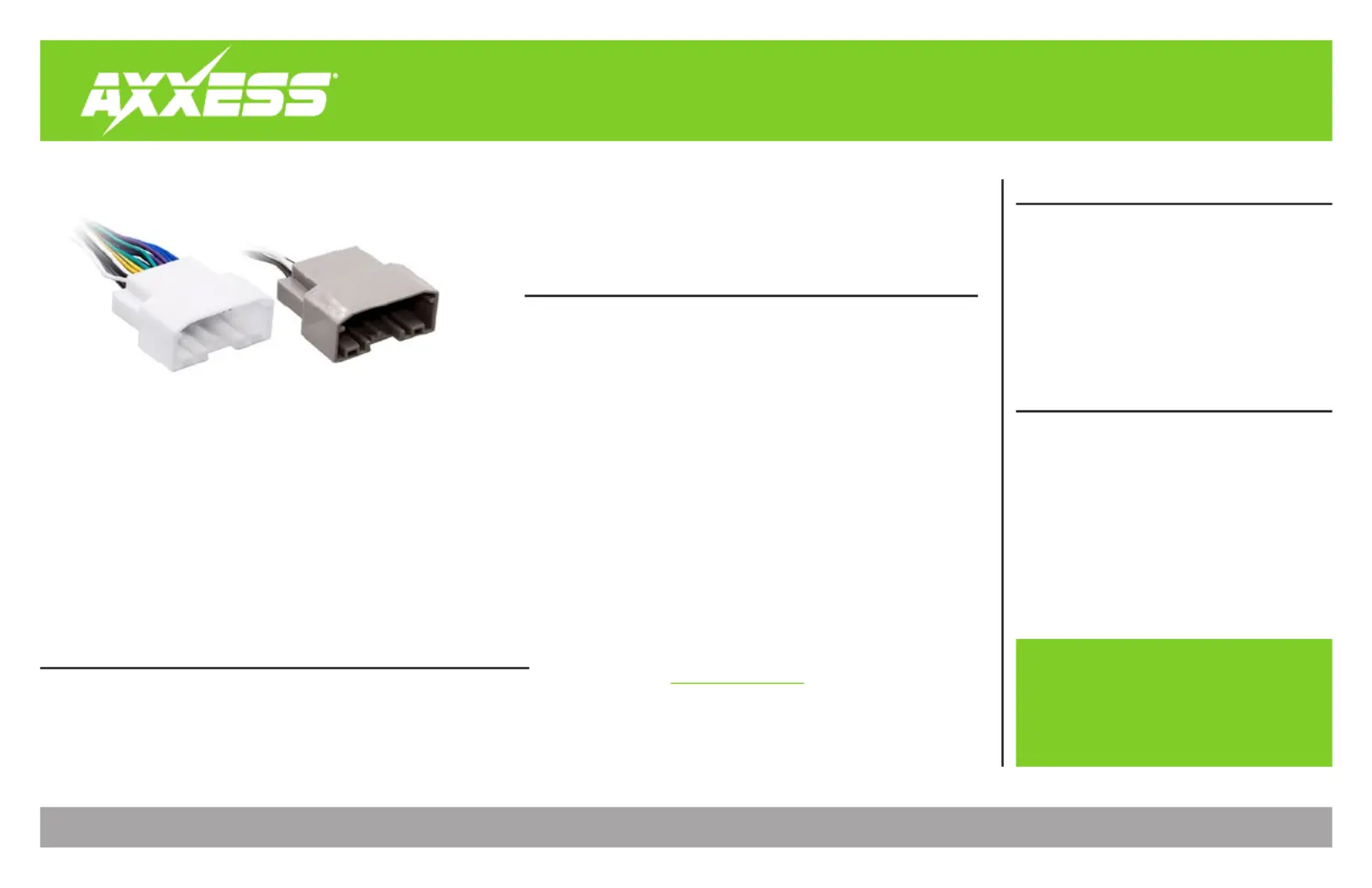

Amplifier Bypass Harness

Fits Select Fiat/Jeep Models 2015-2020

FEATURES

• Vehicle-specific harness to bypass the factory amplifier

• Saves the installer unnecessary labor and wire

• 20 gauge wires

• Wire Length: 12”

Visit for more detailed AxxessInterfaces.com

information about the product and up-to-date

vehicle specific applications.

I N S TA L L AT I O N I N S T R U C T I O N S

AXABH-CH3

Having difficulties? We’re here to help.

Contact our Tech Support line at:

386-257-1187

Or via email at:

techsupport@metra-autosound.com

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 5:00 PM

Sunday: 10:00 AM - 4:00 PM

Metra recommends MECP

certified technicians

Black 16-Pin harness:Gray 16-Pin harness:

Gray N/A

Gray/Black N/A

White N/A

White/Black N/A

Orange N/A

Orange/Black N/A

Red N/A

Red/Black N/A

Brown To Front Left Twiddler Speaker +

Brown/Black To Front Left Twiddler Speaker –

Black

To Front Right Twiddler Speaker +

Black/White

To Front Right Twiddler Speaker -

Gray To Passenger Door Speaker +

Gray/Black To Passenger Door Speaker –

Blue To Subwoofer Coil 1 +

Blue/Black To Subwoofer Coil 1 -

Purple To Subwoofer Coil 2 +

Purple/Black To Subwoofer Coil 2 –

Green To Left Rear Twiddler Speaker +

Green/Black To Left Rear Twiddler Speaker -

Yellow

To Right Rear Twiddler Speaker +

Yellow/Black

To Right Rear Twiddler Speaker –

White To Driver Door Speaker +

White/Black To Driver Door Speaker -

Fiat

500X 2015-2017

Jeep

Renegade 2015-2020
