AXAC-CH7

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights,

are plugged in before reconnecting the battery or

cycling the ignition to test this product.

NOTE:

Refer also to the instructions included with the

aftermarket accessory before installing this device.

INTERFACE FEATURES

TOOLS REQUIRED

REQUIRED ITEMS

TABLE OF CONTENTS

Introduction 2 ...........................................................

Configuration 2-4 .....................................................

Connections 4-5 ........................................................

Installation 5-6 .........................................................

Programming 7 .........................................................

Rebooting the U-Connect Radio 7 ..........................

• (4) Camera inputs

• (1) Programmable camera control wire

• Micro-B USB updatable

• Reverse signal trigger generated via CAN bus communication of

the vehicle

• Turn signal trigger generated via CAN bus communication of the

vehicle

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip-ties

• AXAC-CH7 interface

• AXAC-CH7 interface harness

• AXAC-CH7 vehicle harness

Update Cable: AXUSB-MCBL (sold separately)

Axxess Updater Program

Jeep/Ram* Camera Interface With Pre-

Wired Harness 2018.5-2023

APPLICATIONS

Jeep

Wrangler JL 2018.5-2023 .............................................

Jeep Gladiator JT 2020-2023 .......................................

Ram

1500 (DT) (with 8.4" U-Connect) 2019-2021 ...............

1500 Classic (with 8.4" U-Connect) 2019-2023 ...........

Note: Only compatible with NTSC cameras.

Visit for more detailed information

AxxessInterfaces.com

about the product and up-to-date vehicle specific applications

INTERFACE COMPONENTS

* With 8.4-inch U-Connect radio

CONFIGURATION

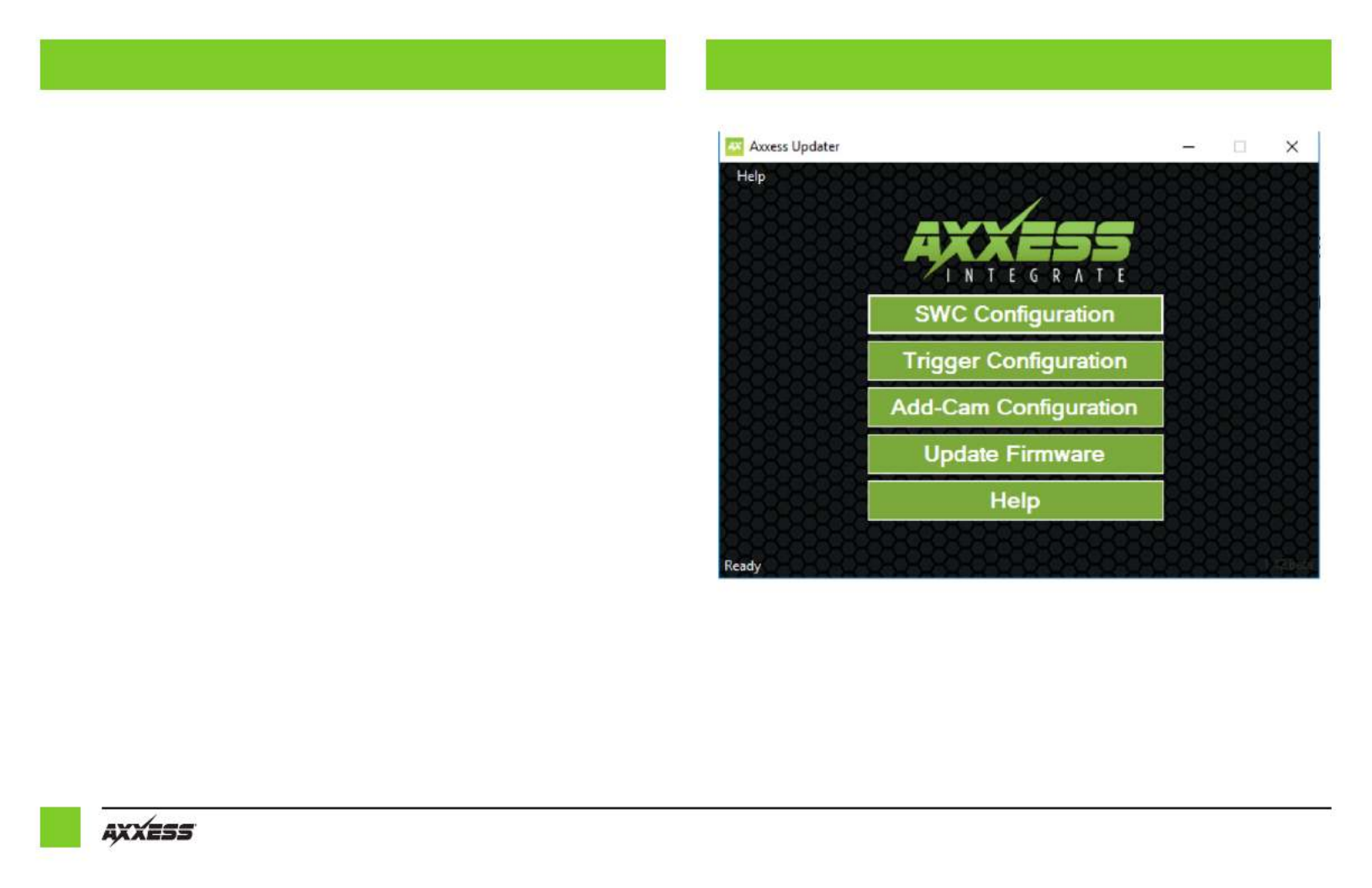

• Download and install the Axxess Updater available at: AxxessInterfaces.com

• Connect the update cable (sold separately) between the interface and the computer. AXUSB-MCBL

The cable will connect into the micro-B USB port in the interface.

• Open the Axxess Updater and wait until the word is listed in the bottom left of the screen.Ready

• Select Add-Cam Configuration.

Continued on the next page

INTRODUCTION

The is a camera switching interface that provides: AXAC-CH7

• A front camera, and/or side cameras that an be added to the factory radio.

• Up to (3) additional camera inputs to the factory radio, while still retaining the factory camera.

• Automatic camera function, no human interaction is required, unless desired.

• Up to (4) cameras, if the vehicle doesn’t come equipped with a backup camera.

Note: iBEAM Axxess recommends cameras from the product line for best results.
