AXAC-GM1

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

INTERFACE FEATURES REQUIRED ITEMS

TABLE OF CONTENTS

Conﬁguration .........................................................2

Add-Cam Conﬁguration from AXXESS Updater ...3

Connections ............................................................4

LD-GMLVDS-AC........................................................5

Layout .....................................................................6

• (4) Camera inputs

• Reverse signal trigger generated via CAN bus communication of the vehicle

•

Turn signal trigger generated via CAN bus communication of the vehicle

• (1) Programmable camera control wires

• Micro-B USB updatable

Update Cable: AXUSB-MCBL (sold separately)

Axxess Updater Program

†

Intended for 8" inch screens, the GM LVDS interface will allow your factory screen to enable a

Camera or add multiple cameras to your factory screen. It can also be used as a “Baby Monitor”

or “Monitor” for your Trailer Hitch”

GM† LVDS Camera

2014-2019

APPLICATIONS (LD-GMLVDS1-AC - 8 inch (IO5/IO6))

Chevrolet

Colorado 2015-2019

Silverado 2014-2019

Silverado 2500/3500 2019

Suburban 2015-2019

Tahoe 2015-2019

GMC

Canyon 2015-2018

Sierra 2014-2018

Sierra Limited 2019

Yukon/XL 2015-2019

Note: Only compatible with NTSC cameras.

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle speciﬁc applications.

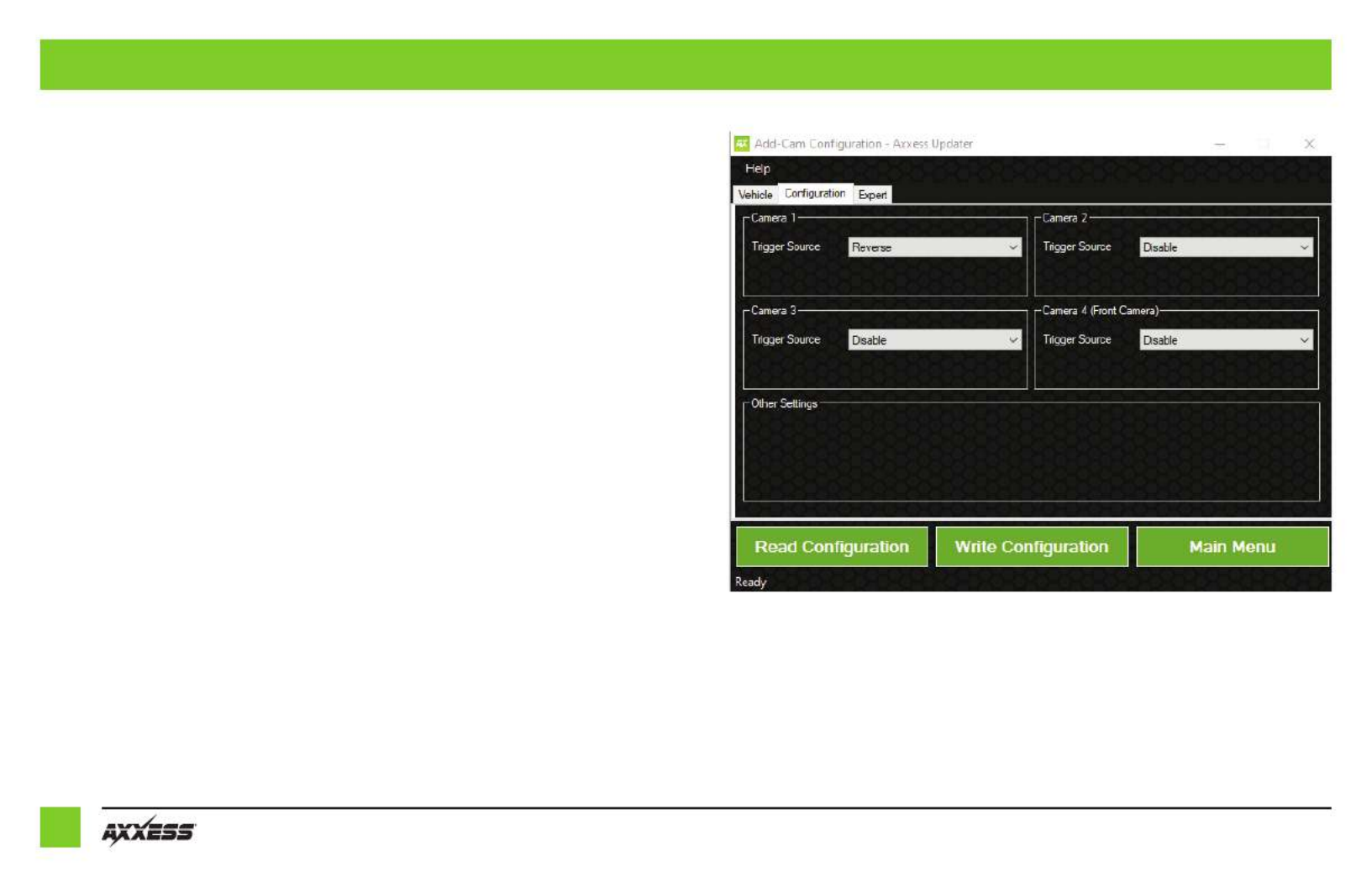

CONFIGURATION

Camera 1

• Turn off input Disable:

•

Reverse: Activates when the vehicle is in reverse

• Activates Input when your left Left Blinker:

turn signal is activated

• Activates input when your right Right Blinker:

turn signal is activated

• * Control 1 Positive: Allows you to trigger that

input by applying 12V

• * Control 1 Negative: Allows you to trigger that

input by applying a ground. (Reverse can only

be conﬁgured on Camera 1)

Camera 2

• Turn off inputDisable:

• Activates input when your left Left Blinker:

turn signal is activated

• Activates input when your right Right Blinker:

turn signal is activated

• *Control 1 Positive: Allows you to trigger that

input by applying 12V

• *Control 1 Negative: Allows you to trigger that

input by applying a ground

Camera 3

• Turn off inputDisable:

• Activates input when your left Left Blinker:

turn signal is activated

• Activates input when your right Right Blinker:

turn signal is activated

•

RVA (Rear Video Assistant) Positive or Negative

trigger: Allows you to monitor a

child or view your Trailer Hitch

Camera 4

• Turn off inputDisable:

• Activates input when your left Left Blinker:

turn signal is activated

• Activates input when your right Right Blinker:

turn signal is activated

• *Control 1 Positive: Allows you to trigger that

input by applying 12V

• *Control 1 Negative: Allows you to trigger that

input by applying a ground

• Auto (Reverse to Drive): Activates once it sees

a sequence of reverse then drive

* Not available if RVA is selected as a trigger source for input 3

The Note: AXAC-GM1 monitors the vehicle’s speed, preventing the use of the Cameras when vehicle

is in motion. When approaching a stop/light and your turn signal is active, your conﬁgured Example:

camera input that uses a turn signal will not activate unless the vehicle is moving at 3mph-cut off

point. (Cut off point is from 8-15mph)

The following options can be chosen for each input
