CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AXAC-MZ1
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 1/31/23 INSTAXAC-MZ1
INTERFACE FEATURES
TOOLS REQUIRED
INTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction............................................................2
Configuration .....................................................2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................6
• (4) Camera inputs
•
Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires
• Micro-B USB updatable
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
• AXAC-MZ1 interface
• AXAC-MZ1 interface harness
• AXAC-MZ1 vehicle harness (qty. 2)
• 24-pin T-harness
• 4-pin T-harness (cam harness)
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
† With full color LCD screen
Mazda† Camera Interface With Pre-Wired Harness
2007-2015
APPLICATIONS
Mazda
CX-5 2013-2015
CX-9 2013-2015
CX-9 (with NAV) 2007-2012
Note: Only compatible with NTSC cameras.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
2
CONFIGURATION

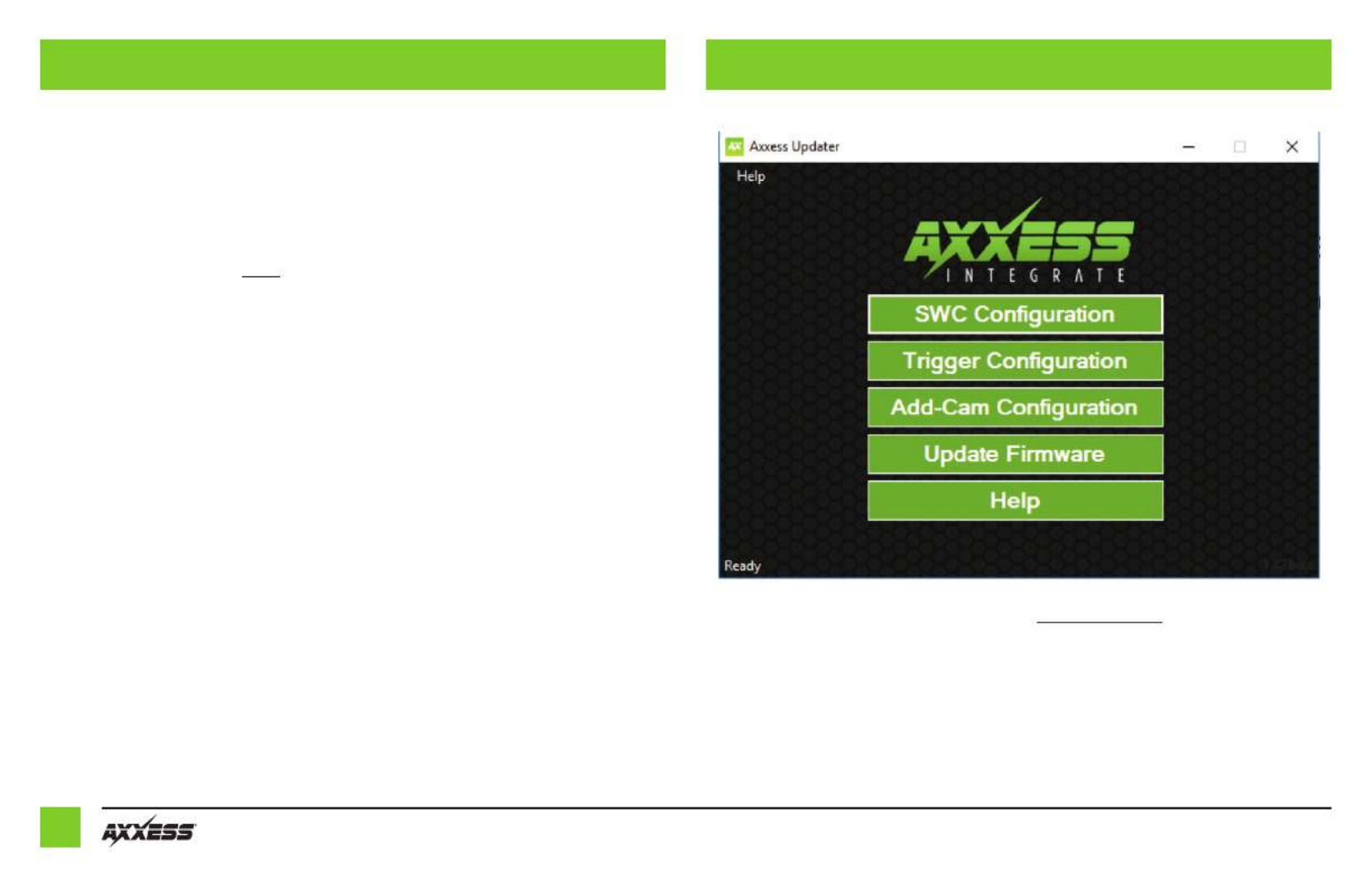

• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.
• Open the Axxess Updater and wait until the word is listed in the bottom left of the screen.Ready
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-MZ1 is a camera switching interface that provides up to (3) additional camera inputs
to the factory radio, while still retaining the factory camera. With this interface a front camera,
and/or side cameras, can be added to the factory radio. The cameras function automatically, no
human interaction required, unless desired to do so. The interface can also be used if the vehicle
doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess
recommends cameras from the iBEAM product line for best results.
