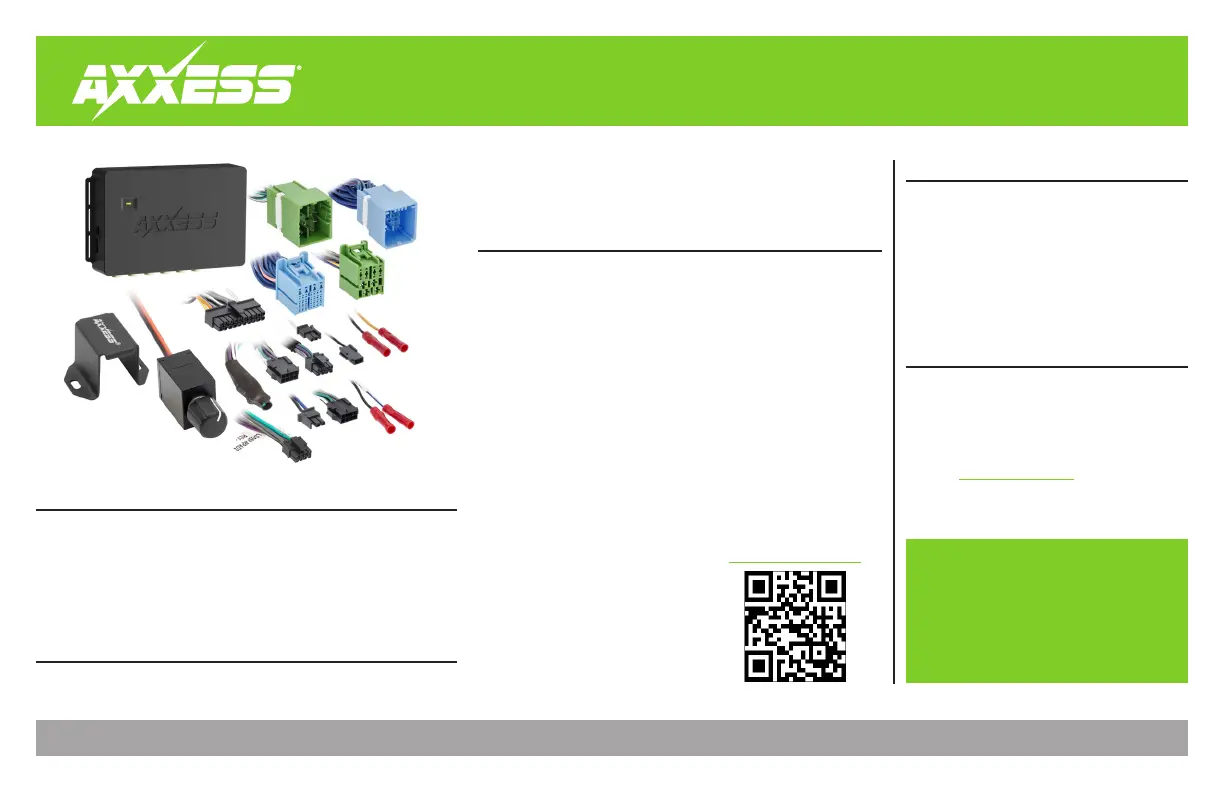

AXAMP-CH8

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties • Multimeter

TABLE OF CONTENTS

Installation & Installation Options ........................2

Adding Amp/Amps to a Factory System

Non-amplified ......................................................3

Amplified .............................................................. 4

Rebooting the U-Connect Radio ..........................5

Troubleshooting: LED Feedback ...........................6

APPLICATIONS

Visit AxxessInterfaces.com for current application list

INTERFACE COMPONENTS

• AXAMP-CH8 Amplifier Integration interface

• AXAMP-CH8 vehicle T-harness

• Bass knob

Amplifier Integration Interface

Fits Chrysler Select Models

2021-Up

www.MetraOnline.com

• Designed for both amplified and non-amplified models

• Provides 6 channels of 5-volt RMS audio

• Channels 5 & 6 are non-fading full range output

• Includes plug-n-play harnessing

• Simple behind the radio installation

• Dual colored LED feedback

• Input Power handling 50 Watts per channel

• Amp on turn-on output is rated at 250mA

• 2 channel S/PDIF out (Fronts)

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

• LD-DSP-RPAD2

For Dash Disassembly Instructions, refer

to metraonline.com. Enter the year, make,

and model of the vehicle in the Vehicle Fit

Guide for Radio Install kits.

Visit AxxessInterfaces.com for more detailed

information about the product and up-to-date

vehicle specific applications.

Adding a full-range amp and subwoofer to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system, whether

amplified*or non-amplified. (Refer to Page 3)

* For amplified models the amp must be bypassed/unplugged. Refer to www.MetraOnline.com for

the vehicle specific amplifier bypass harness.

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*

2. Install the AXAMP-CH8 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. Plug the AXAMP-CH8 vehicle T-harness to the AXAMP-CH8 interface.

4. Plug the AXAMP-CH8 interface harness to the AXAMP-CH8 interface.

5. Connect the amp turn-on wire.

6. Adjust your aftermarket amplifier to a desired listening level.

7. The Bassknob is used to adjust the output of channels 5 & 6 of the AXAMP.

Adjustment is as follows:

Counterclockwise turn lowers the volume of channels 5 & 6.

Clockwise turn raises the volume of channels 5 & 6.

* For dash disassembly instructions, refer to www.MetraOnline.com. Enter the year,

make, and model of the vehicle in the Vehicle Fit Guide and find instructions under

Metra Radio Install kits.

INSTALLATION OPTIONS INSTALLATION
