Side 1/5

axxessinterfaces.com • metraonline.com

Axxess Integrate

REV. 1/28/20

Installation Instructions for AXBUCH-T36V

INTERFACE FEATURES

• Retains the factory backup camera to an aftermarket radio

• Allows an aftermarket camera to be added to the factory screen*

• Includes the AXCSD-6V 12-volt to 6-volt converter

* Display and navigation model radios only

INTERFACE COMPONENTS

• AXBUCH-T36V harness • AXCSD-6V 12-volt to 6-volt converter

AXBUCH-T36V

Toyota Backup Camera Retain/Add-On

2013-2016

SCION

FR-S 2016

iM 2016

tC 2016

TOYOTA

4-Runner 2014-2016

4-Runner (without NAV) 2013

Avalon 2015-2016

Camry 2014-2016

Corolla 2014-2016

Highlander 2014-2016

Prius C 2015

Prius V 2015

Rav-4 2015-2016

Rav-4 (after build

date Nov. 2013) 2014

Sienna 2015

Sequoia 2014-2016

Tacoma 2014-2016

Tundra 2014-2016

Venza 2015-2016

• Cutting tool • Tape • Crimping tool

• Connectors (example: butt connectors, bell caps, etc.)

APPLICATIONS

TOOLS REQUIRED

CAUTION!

All accessories, switches, climate controls panels, and especially air bag indicator lights

must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

axxessinterfaces.com • metraonline.com

Axxess Integrate

REV. 1/28/20

Installation Instructions for AXBUCH-T36V

K PNOWLEDGE IS OWER

Enhance your installat ion and fabrica tion skills by

enrolling in the most recogniz ed and spected re

mobile elect nics school in our indust ry.ro

Log ont o www.installerinstit ute.com or call

800-354-6782 for mo information a nd t ake st eps re

toward a bett er t omorrow.

Metra r ecommends MECP

certified technicians

Connections to be made

The AXBUCH-T36V can be connected two different ways

To retain the factory backup camera to an aftermarket radio:

•

Connect the wire to chassis ground and also to the wire of the AXCSD-6VBlack Black

• Connect the Yellow Blue/Red wire to the wire of the AXCSD-6V.

• Connect the reverse wire from the aftermarket radio, to the reverse signal in the

vehicle, and also to the wire of the AXCSD-6V.Blue/White

• Connect the male Yellow RCA jack to the rear camera input of the aftermarket radio.

• Disregard the loose wire, it will not be used in this application.Green/Purple

To allow an aftermarket camera to be added to the OEM screen:

• Connect the wire to the ground wire of the aftermarket camera.Black

• Connect the power wire of the aftermarket camera to accessory power.

• Tape off and disregard the Yellow wire, it will not be used in this application.

• Connect the female Yellow RCA jack to the aftermarket camera.

• The AXCSD-6V 12-volt to 6-volt converter will not be used in this application.

The following (2) steps are only required if

a wire is present in the factory harnessnot

•

If a wire is not present in pin-2 of the 28-

pin connector of the factory radio, unplug

the connector, then insert the metal pin

of the loose wire into it. Green/Purple

Connect the harness back into the radio

• Connect the other end of the loose

Green/Purple wire to the reverse

wire of the vehicle.

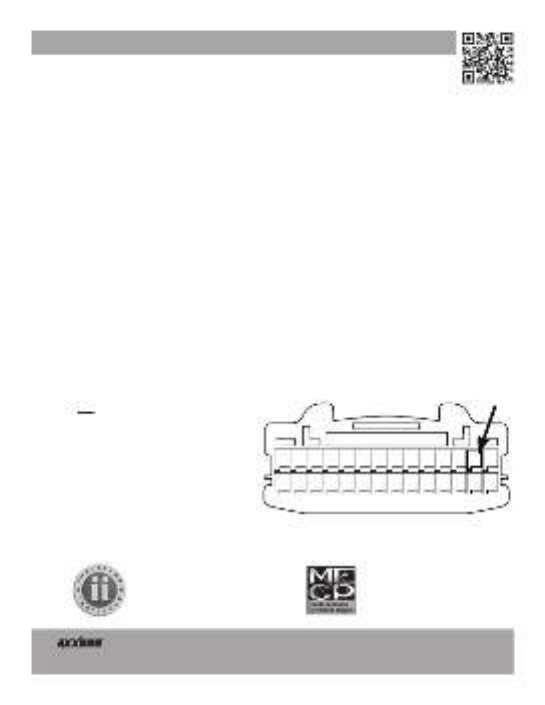

14 13 12 11 10 9 8 7 6 5 3 2 4 1

28 27 26 25 24 23 22 21 20 19 18 17 16 15

This is the wire view of the connector in the vehicle

28 Pin Harness
