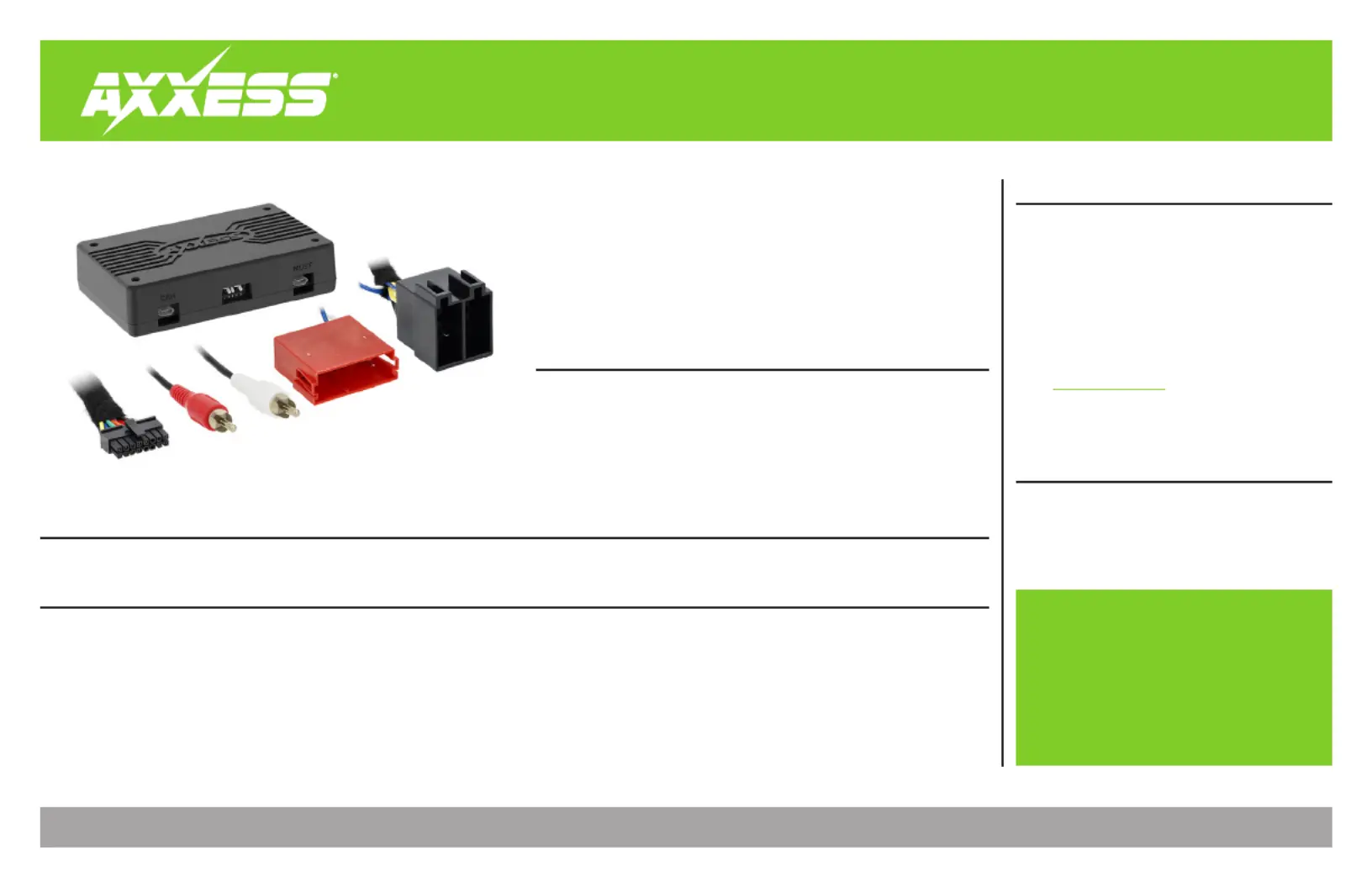

AXDI-PO4

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun • Tape

• Connectors (example: butt-connectors, bell

caps, etc.)

TABLE OF CONTENTS

Connections: BLK-AXDI-PO4 Harness 2 ...................

Applicable Radios 3 ..................................................

Installation 3 .............................................................

Installing the Fiber Optic Cable.............................3

Tips 4 ..........................................................................

Porsche (with MOST*25 amplifier)

Data Interface 2004-2013

* Media Oriented System Transport

INTERFACE FEATURES

INTERFACE COMPONENTS

• Designed for MOST25 amplified systems

• Provides accessory power (12-volt)

• Provides NAV outputs (parking brake, reverse, and speed sense)

• Micro B USB updatable

• AXDI-PO4 interface • AXDI-PO4 harness

APPLICATIONS

US Applications

Porsche

911 (997) 2004-2008 ..........................................

Boxster (987) 2005-2009 ..................................

Cayman (987) 2005-2009 ................................

World Applications

Porsche

911 (997) 2004-2012 ...........................................

Boxster (987) 2005-2012 ...................................

Cayman (987) 2005-2013 .................................

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications

CONNECTIONS: BLK-AXDI-PO4 HARNESS

Front

Rear

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Reverse

Orange - Illumination

Blue - AMP Turn On

Purple - E-Brake

Pink - VSS

16-Pin

Vehicle Connector

Radio Connections

BLK-AXDI-PO4

Plastic Housing

Installing the Fiber Optic Cable:

1. Remove the for the factory RadioOE Fiber Optic Cable

Factory Fiber

Optic Connector

Refer to

Installing the Fiber Optic Cable

section on the next page

Interface
