AXDI-VW2

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections: LD-XSVI-9006NAV 2 ...........................

Installation 3 .............................................................

Programming 3 .........................................................

Volkswagen Data Interface 2015-Up

APPLICATIONS

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Provides NAV outputs (parking brake, reverse, speed sense)

•

For use in non-amplified systems, or when replacing an amplified system

• 48-inch leads for remote tuner location

• Pre-wired AXSWC harness (AXSWC sold separately)

• Retains the factory backup camera

• Retains balance and fade

• Micro-B USB updatable

Volkswagen

Beetle 2016-2019 ................................................

Golf Series 2015-Up ...........................................

Jetta 2016-2019 ..................................................

Jetta GLI 2016-2018 ............................................

Passat...................................................2016-Up

Tiguan 2016-2017 ...............................................

• AXDI-VW2 interface

• LD-XSVI-9006NAV harness

Visit for more detailed information about the product and up-to-date

AxxessInterfaces.com

vehicle specific applications

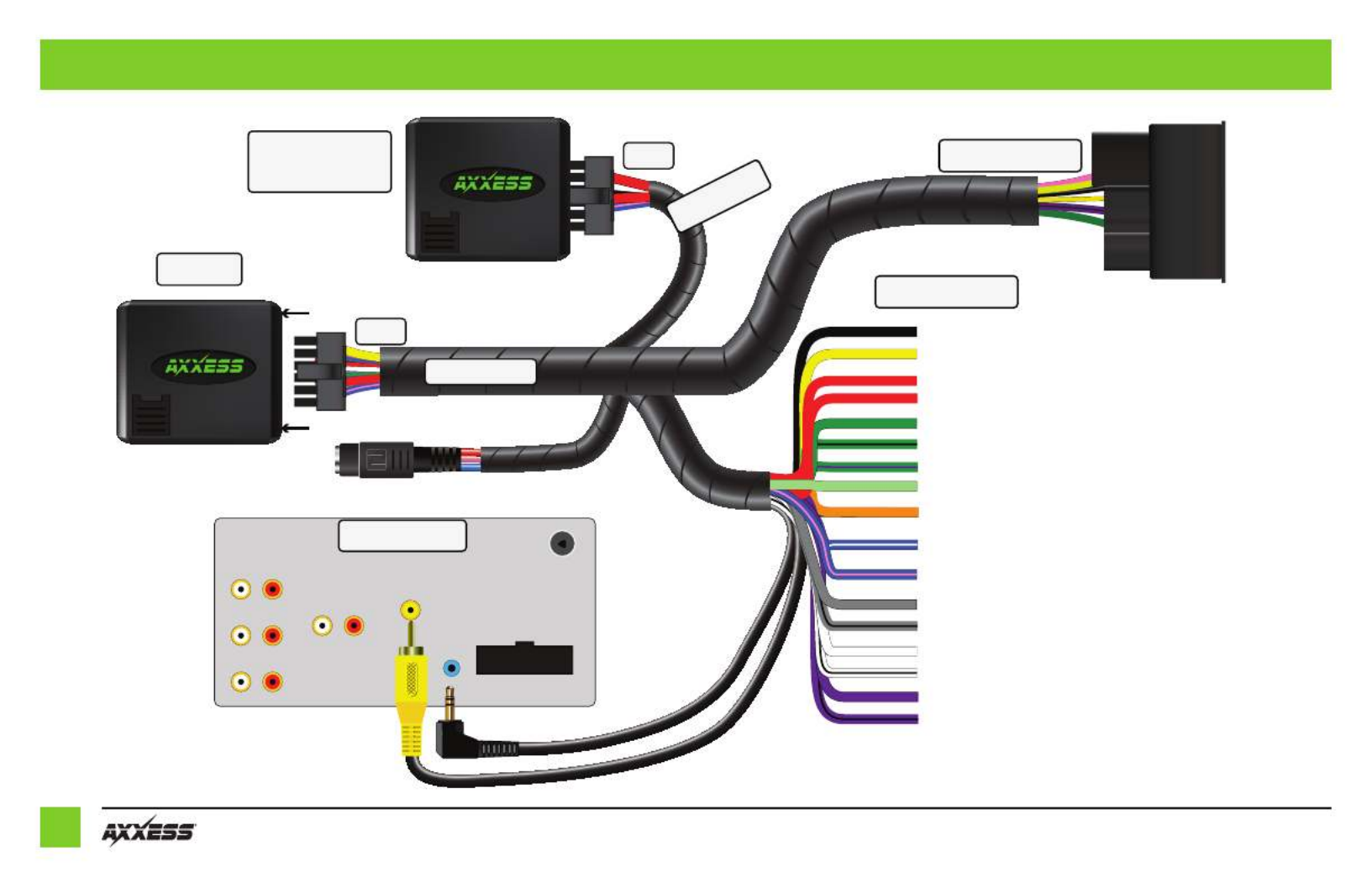

CONNECTIONS: LD-XSVI-9006NAV

Steering Wheel

Control (AXSWC)

(Sold Separately)

Front

Rear

Sub

AUX-IN

Rear ewVi

SWC

Aftermarket Radio

(Your radio’s features may vary)

LD-XSVI-9006NAV

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple

- Reverse backup camera

Light Green - Parking brake

Orange - Illumination

Blue/White Amp turn on

Blue/Pink - VSS/Speed-Sense

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

12-Pin

Vehicle Connector

Radio Connections

Interface

12-Pin

SWC Harness
