AXDIS-GM13

I N S TA L L AT I O N I N S T R U C T I O N S

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape

• Wire cutter • Zip-ties

TABLE OF CONTENTS

Connections 2-3 ........................................................

Installation 3 .............................................................

Programming 4 .........................................................

Adjusting the AXDIS-GM13 4 ....................................

Steering wheel control settings 5-7 .......................

- L.E.D. feedback 5 ....................................................

- Changing radio type 5 ...........................................

- Remapping 6 ..........................................................

- Dual assignment instructions 7 ............................

Troubleshooting.....................................................8

GM Data Interface with SWC 2005-2011

• Designed for amplified models

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Retains OnStar®

• Retains balance and fade

• Micro-B USB updatable

INTERFACE COMPONENTS

• AXDIS-GM13 interface

• AXDIS-GM13 harness

• 16-pin harness

• 3.5mm adapter

CADILLAC

STS 2005-2011 ..............................................................

Visit for up-to-date

AxxessInterfaces.com

vehicle specific applications.

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

Product Info

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

Vehicle Connectors

Interface

22-Pin

16-Pin

Red - Accessory power

Orange/White - Illumination

Blue/Pink - VSS/Speed-Sense

Green/Purple - Reverse signal

Light Green - Parking brake

Gray - Front right speaker +

Gray/Black - Front right speaker -

White - Front left speaker +

White/Black - Front left speaker -

Green (NOT USED) -

Green/Black (NOT USED) -

Purple (NOT USED) -

Purple/Black (NOT USED) -

Blue/White - Amp turn on from radio

Brown (NOT USED) -

Radio Connections

Yellow wire to the battery wire

Black wire to the ground wire

Blue wire to the power antenna wire

From the AXDIS-GM13 harness to the aftermarket radio

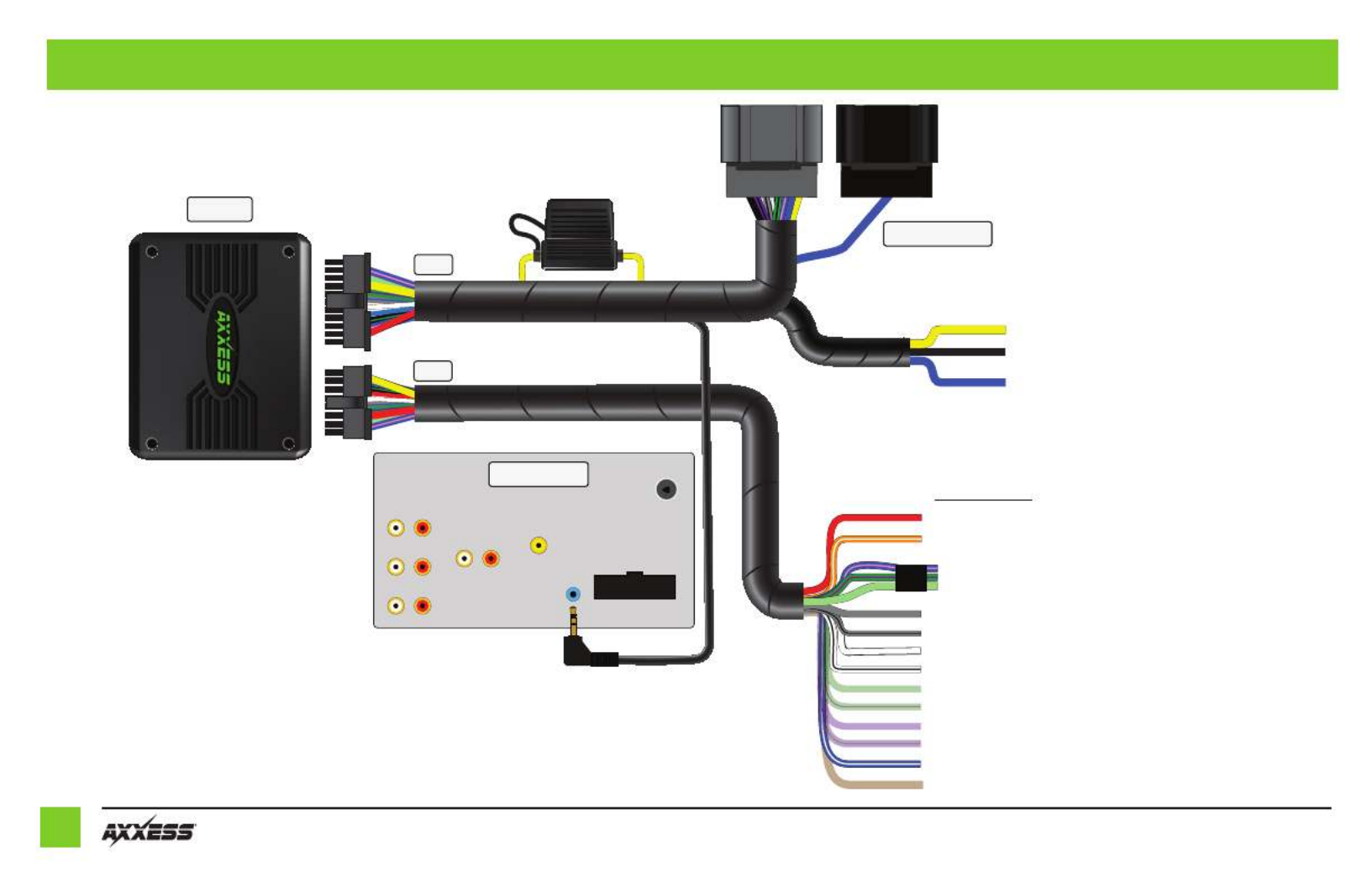

CONNECTIONS
