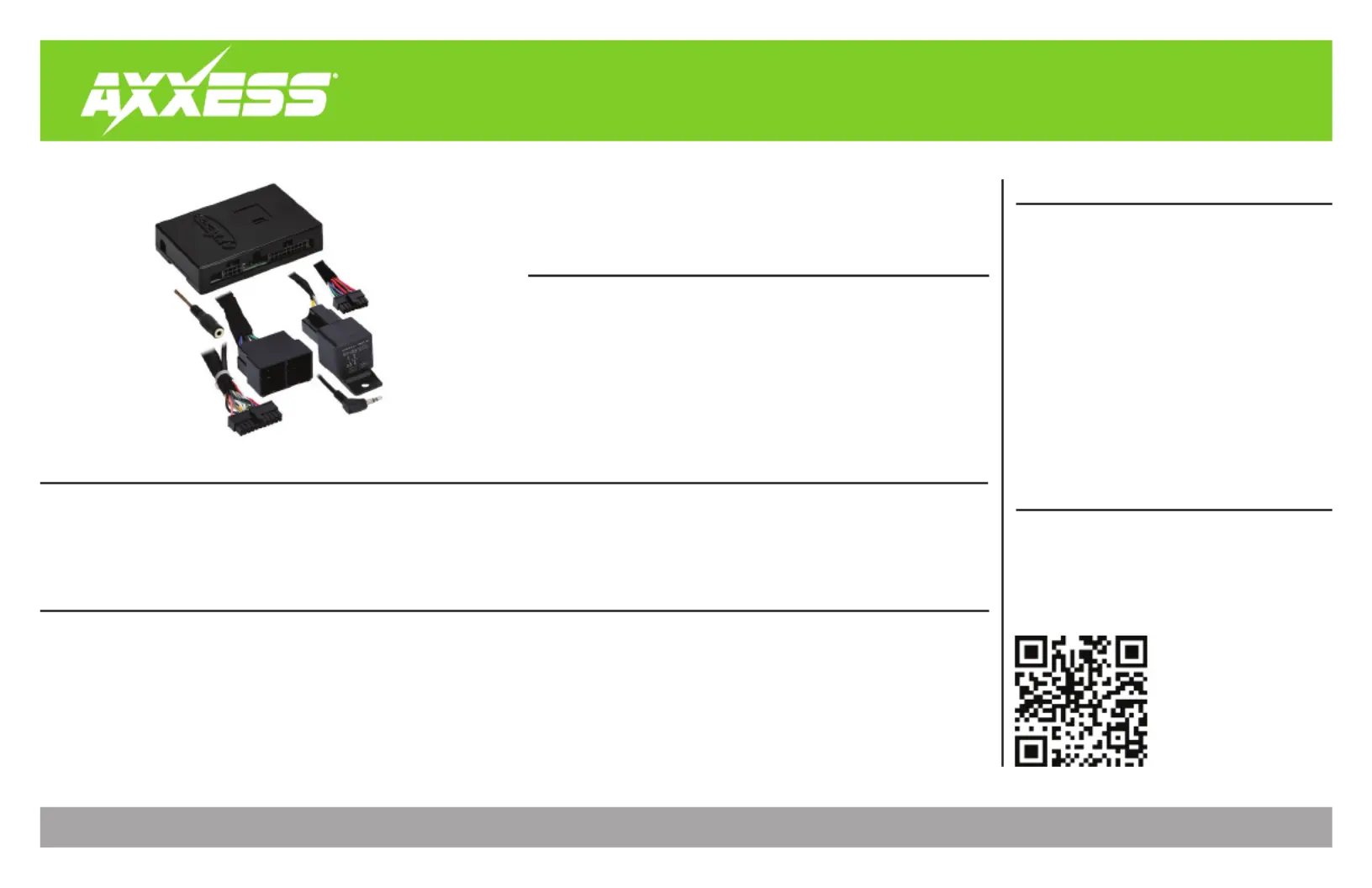

AXDIS-GMLN30

I N S TA L L A T I O N I N S T R U C T I O N S

Product Info

INTERFACE FEATURES

INTERFACE COMPONENTS

TABLE OF CONTENTS

Connections to be made ....................................2-3

- 3.5mm jack steering wheel control retention 3 ..

Installing the AXDIS-GMLN30 ................................3

Programming the AXDIS-GMLN30 ........................4

Steering wheel control settings ........................5-7

- L.E.D. feedback ....................................................5

- Changing radio type ...........................................5

- Remapping the steering wheel control buttons .. 6

- Dual assignment instructions ............................7

Troubleshooting .....................................................8

GM Data Interface with SWC 2019-Up

• Provides accessory power

(12-volt 10-amp)

• Retains R.A.P. (retained

accessory power)

• Provides NAV outputs (parking

brake, reverse, speed sense)

• Retains audio controls on the

steering wheel

•

Non-ampliﬁed models only

• Retains balance and fade

• Micro-B USB updatable

• AXDIS-GMLN30 interface • AXDIS-GMLN30 harness

• 16-pin harness with stripped leads

• Female 3.5mm connector with stripped leads

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun • Tape

• Connectors (example: butt-connectors, bell

caps, etc.) • Small ﬂat-blade screwdriver

APPLICATIONS

Chevrolet

Blazer (IOT, IOU) ** 2019-Up

Camaro (IOS, IOT) ** 2019-Up

Cheyenne (IOS, IOT) ** 2019-2021

Colorado (IOS, IOT) 2019-Up

Equinox (IOS, IOT) ** 2019-Up

Malibu (IOU, IOS) ** 2019-Up

Silverado (IOS, IOT) ** 2019-2021

Volt 2019-Up

GMC

Acadia (IOU) ** 2019-Up

Canyon (IOS, IOT) 2019-Up

Sierra 1500 (IOS, IOT) ** 2019-2021

Terrain (IOS, IOT, IOU) ** 2019-Up

** For extension, use AXEXH-GM30

CONNECTIONS TO BE MADE

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the wire to the accessory wire.Red

• If the aftermarket radio has an illumination wire, connect the wire to it.Orange/White

• Connect the wire to the right front positive speaker output.Gray

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the wire to the VSS/speed sense wire.Blue/Pink

• Connect the wire to the reverse wire.Green/Purple

• Connect the Light Green wire to the parking brake wire

• Tape off and disregard the following (5) wires, they will not be used in this application:

Blue/White Green Green/Black Purple Purple/Black, , , and .

From the AXDIS-GMLN30 harness to the aftermarket radio:

• Connect the wire to the ground wire.Black

• Connect the Yellow wire to the battery wire.

• Connect the wire to the left rear positive speaker output.Green

• Connect the wire to the left rear negative speaker output.Green/Black

• Connect the wire to the right rear positive speaker output.Purple

• Connect the wire to the right rear negative speaker output.Purple/Black

Note:

The relay attached to the harness is only for audible turn signal clicks. No extra steps

are required to retain this feature, so leave the relay as-is.

Continue to 3.5mm jack steering wheel control retention
