Side 1/8

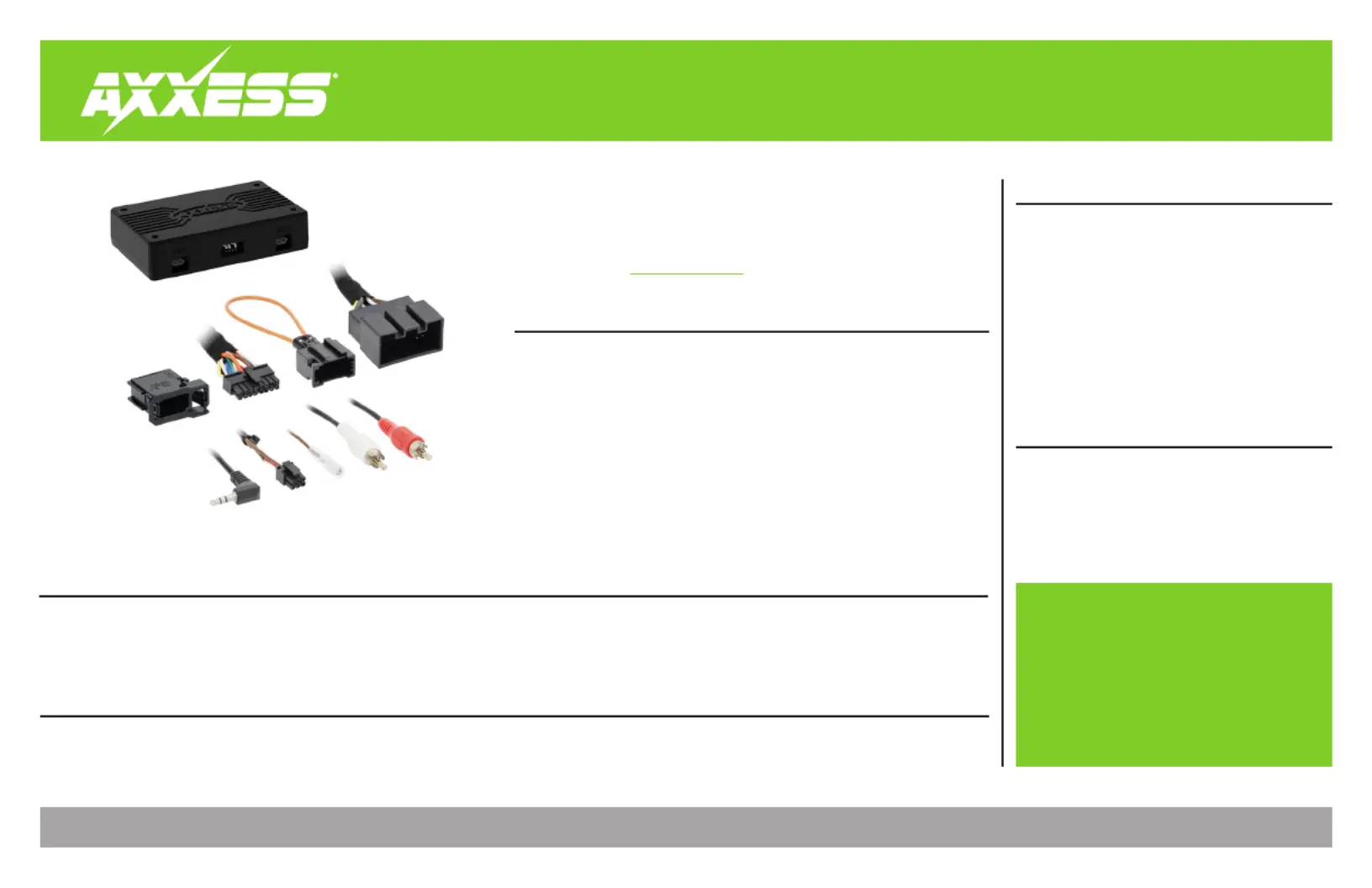

AXDIS-LR82

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

INTERFACE FEATURES

INTERFACE COMPONENTS

TABLE OF CONTENTS

Connections: BLK-AXDIS-LR82 harness 2 ................

Applicable Radios 3 ..................................................

Steering Wheel Control Chart (SWC) 3 ...................

Installing the Fiber Optic Cable.............................4

Installing the AXDIS-LR82 interface 4 .....................

Land Rover Range Rover Vogue (with MOST25

amplifier) Data Interface with SWC 2002-2012

• Designed for MOST*25 amplified systems

• Provides accessory power (12-volt)

• Retains audio controls on the steering wheel controls

• Easy to set Dipswitches for SWC configuration

• Provides NAV outputs (parking brake, reverse, and speed sense)

• Micro B USB updatable

Note: Backup Camera not retained if equipped.

* Media Oriented System Transport

• AXDIS-LR82 harness

• AXDIS-LR82 interface

• MOST jumper harness

• SWC harness

TOOLS REQUIRED

• Wire cutter

• Crimp tool and connectors

(example: butt-connectors, bell caps, etc.) or

• Solder gun, solder, heat shrink

• Tape • Zip-ties

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications

APPLICATIONS

US Applications: Range Rover

Vogue (L322) 2007-2012 ...................................................................

World Applications: Range Rover

Vogue (L322) 2002-2012 ...................................................................

CONNECTIONS: BLK-AXDIS-LR82 HARNESS

Front

Rear

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Reverse

Orange - Illumination

Blue - AMP Turn On

Purple - E-Brake

Pink - VSS

6-Pin

16-Pin

Vehicle Connector

Radio Connections

BLK-AXDIS-LR82

Brown - Wired SWC

“Kenwood/JVC”

NOTE: This loop is to be placed

at the factory screen location.
