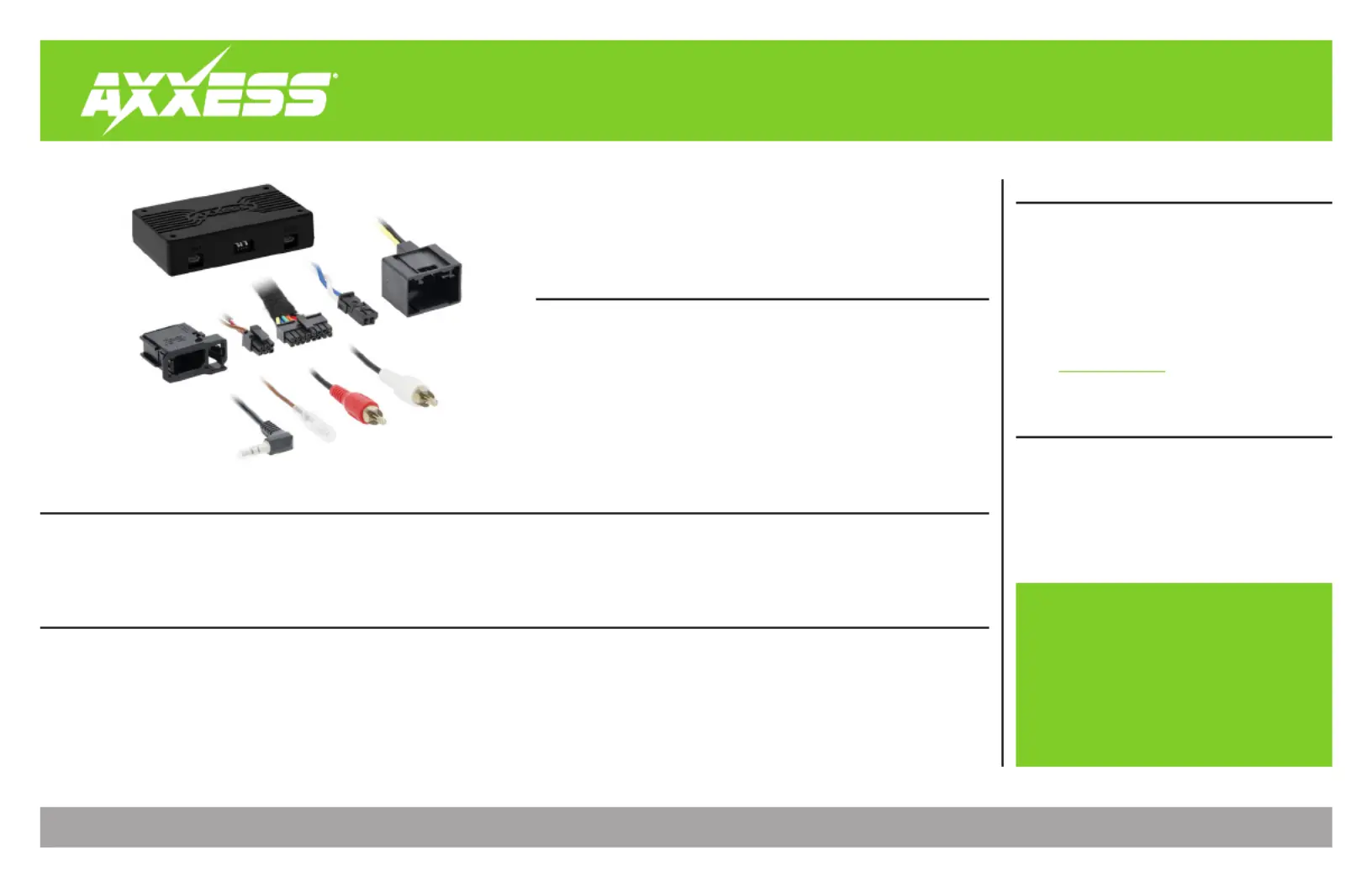

AXDIS-MB132

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

TOOLS REQUIRED

• Wire cutter

• Crimp tool and connectors (example: butt

connectors, bellcaps, etc.)

• Solder gun, solder, heat shrink

• Tape • Zip-ties

TABLE OF CONTENTS

Connections: BLK-AXDIS-MB132 Harness 2 .............

Steering Wheel Control Chart (SWC) 3 ...................

Installing the Fiber Optic Cable.............................4

Installing the AXDIS-MB132 Interface 5 ...................

Mercedes (with MOST 25 amplifier)

Data Interface with SWC 2002-2011

INTERFACE FEATURES

• Designed for MOST*25 amplified systems

• Provides accessory power (12-volt)

• Retains audio controls on the steering wheel controls

• Easy to set Dipswitches for SWC configuration

•

Provides NAV outputs (parking brake, reverse, and speed sense)

• Micro B USB updatable

Note: Backup Camera not retained if equipped.

* Media Oriented System Transport

APPLICATIONS

US Applications: Mercedes

E Class (W211) 2003-2008 .........................................................................

CLS (W219) 2006-2011 ...............................................................................

SLK (R171) 2005-2011 .................................................................................

World Applications: Mercedes

E Class (W211) 2002-2009 ..........................................................................

CLS (W219) 2004-2010 ...............................................................................

SLK (R171) 2004-2010 .................................................................................

With OEM Navigation

• AXDIS-MB132 interface

• BLK-AXDIS-MB132 harness

• Steering wheel control harness

INTERFACE COMPONENTS

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications
