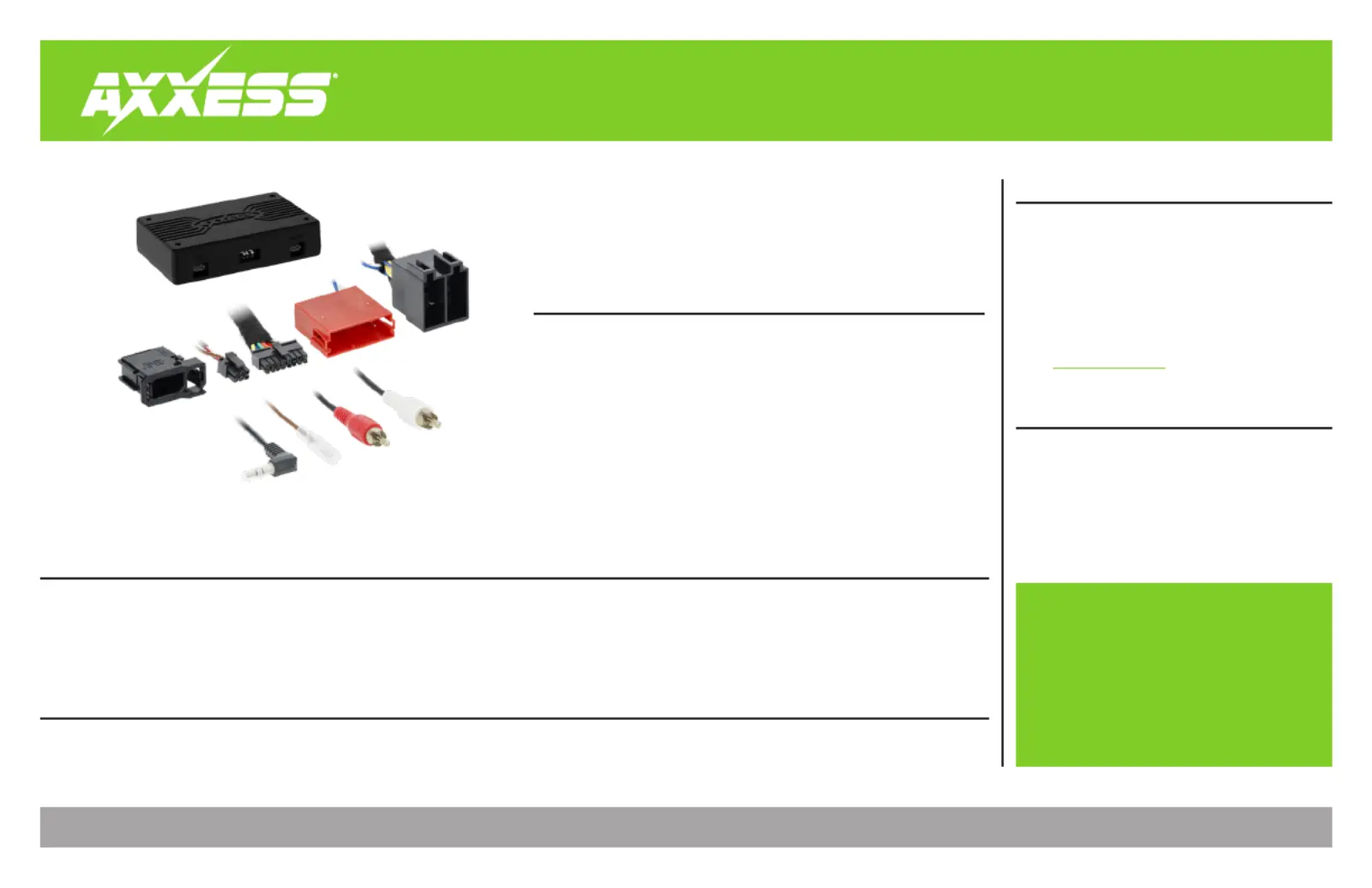

AXDIS-PO32
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/15/24 INSTAXDIS-PO32
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter
• Crimp tool and connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip ties
TABLE OF CONTENTS
Connections: BLK-AXDIS-PO32 harness 2 ...............
Applicable Radios 3 ..................................................
Steering Wheel Control (SWC) Chart 4 ...................
Installing the AXDIS-PO32 interface 5 .....................
Installing the Fiber Optic Cable.........................5-6
Porsche Cayenne (9PA)
(with MOST 25 amplifier)
Data Interface with SWC 2002-2007*
• AXDIS-PO32 interface
• AXDIS-PO32 harness
• Designed for MOST
*
25 amplified systems
• Provides accessory power (12-volt)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Micro B USB updatable
Note: Backup Camera not retained if equipped.
* Media Oriented System Transport
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
APPLICATIONS
US Applications: Porsche
Cayenne (9PA) 2003-2007 .......................................
World Applications: Porsche
Cayenne (9PA) 2002-2007 ........................................
* PCM 3.0 touchscreen NAV
2
CONNECTIONS: BLK-AXDIS-PO32 HARNESS
Front
Rear
u
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Reverse
Orange - Illumination
Blue - AMP Turn On
Purple - E-Brake
Pink - VSS
6-Pin
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDIS-PO32
Brown - Wired SWC
“Kenwood/JVC”
