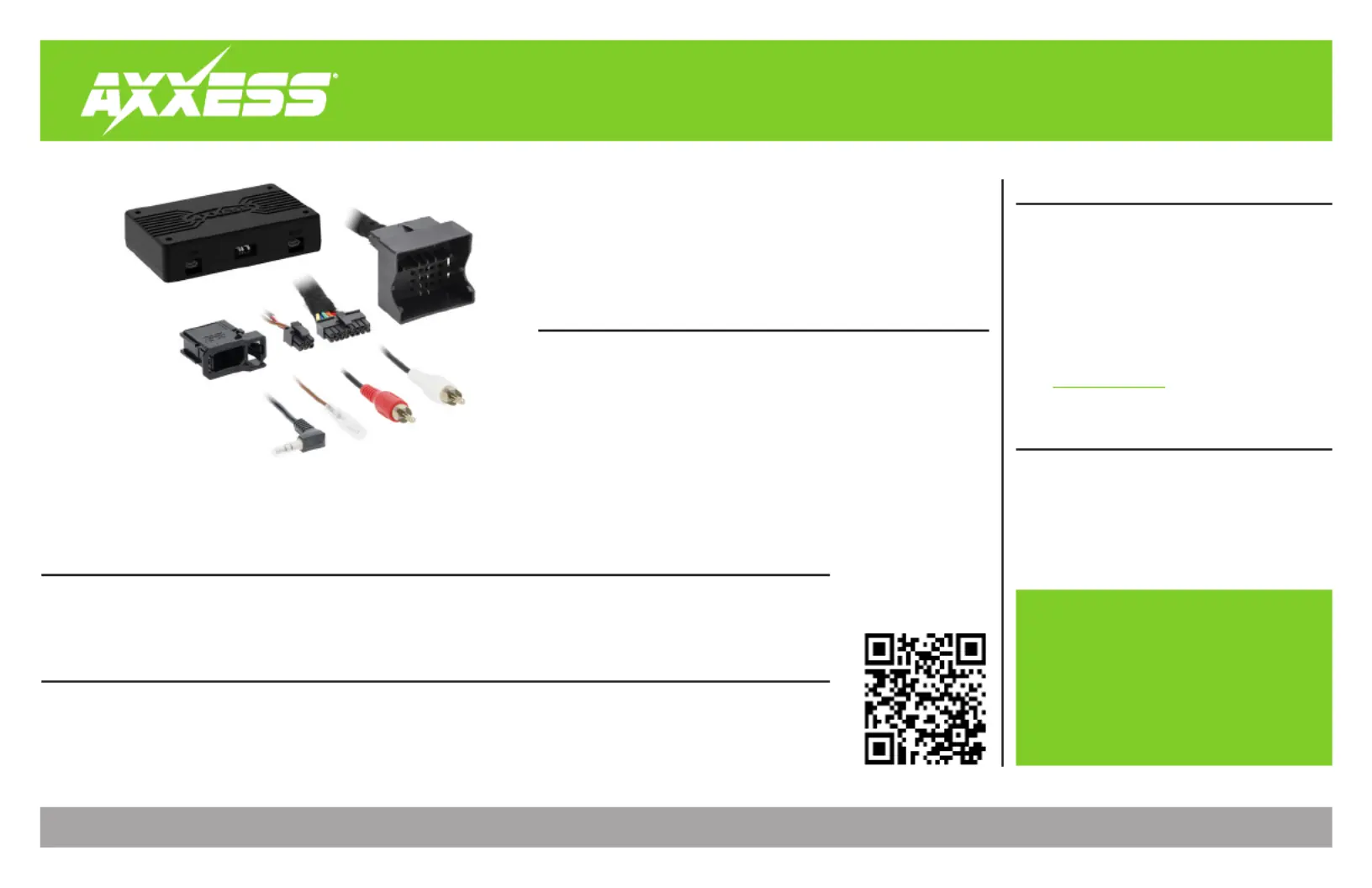

AXDIS-PO42

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

Porsche Cayenne/911 (with MOST 25 amplifier)

Data Interface with SWC 2007-2010*

INTERFACE COMPONENTS

• AXDIS-PO42 harness

• AXDIS-PO42 interface

* PCM 3.0 touchscreen NAV

TOOLS REQUIRED

• Wire cutter

• Crimp tool and connectors

(example: butt-connectors, bell caps, etc.) or

• Solder gun, solder, heat shrink

• Tape • Zip ties

TABLE OF CONTENTS

Connections: BLK-AXDIS-PO42 Harness 2 ...............

Applicable Radio 3 ....................................................

SWC Chart (Steering Wheel Control) 3 ...................

Installing the AXDIS-PO42 interface 4 ....................

Installing the Fiber Optic Cable.........................4-5

Product Info

APPLICATIONS

US Applications: Porsche

Cayenne (9PA) 2008-2010 ........................................

World Applications: Porsche

Cayenne (9PA) 2007-2010 .........................................

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications

INTERFACE FEATURES

• Designed for MOST* 25 amplified systems

• Provides accessory power (12-volt)

• Retains audio controls on the steering wheel controls

• Easy to set Dipswitches for SWC configuration

• Provides NAV outputs (parking brake, reverse, and speed sense)

• Micro B USB updatable

Note: Backup Camera not retained if equipped.

* Media Oriented System Transport

CONNECTIONS: BLK-AXDIS-PO42 HARNESS

Front

Rear

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Reverse

Orange - Illumination

Blue - AMP Turn On

Purple - E-Brake

Pink - VSS

6-Pin

16-Pin

Vehicle Connector

Radio Connections

BLK-AXDIS-PO42

Brown - Wired SWC

“Kenwood/JVC”
