Side 1/16
AXDIS-PO72
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/24/24 INSTAXDIS-PO72
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
• Designed for MOST*25 amplified systems
• Provides accessory power (12-volt)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Retains audio controls on the steering wheel controls
• Easy to set Dipswitches for SWC configuration
• Micro B USB updatable
• Retains USB and AUX inputs
Note: Backup Camera retained if equipped.
* Media Oriented System Transport
TOOLS REQUIRED
• Wire cutter • Crimp tool and connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip ties
TABLE OF CONTENTS
Connections: BLK-AXDIS-PO72 Harness 2 ...............
Applicable Radio 3 ....................................................
SWC Chart Dipswitch Table 4 ...................................
Installing the AXDIS-PO72 Interface 5 .....................
Installing the Fiber Optic Cable.............................5
Installation Tips 6 ......................................................
Porsche (with MOST 25 amplifier)
Data Interface with SWC 2010-2016*
INTERFACE FEATURES
INTERFACE COMPONENTS
• AXDIS-PO72 interface • AXDIS-PO72 harness
APPLICATIONS (Refer to radio image on Page 3 for Proper Vehicle Coverage) Product Info
Visit for more detailed information AxxessInterfaces.com
about the product and up-to-date vehicle specific applications
* PCM 3.1 touchscreen NAV
US Applications: Porsche
911 (991) 2012-2016 .....................................................
Cayenne (92A Gen2) 2011-2016 ..................................
Macan (95B) 2015-2016 ..............................................
Panamera (970) 2010-2016 ........................................
World Applications: Porsche
911 (991) 2011-2016 ......................................................
Cayenne (92A Gen2) 2010-2016 .................................
Macan (95B ) 2014-2016 .............................................
Panamera (970) 2009-2016 .......................................
2

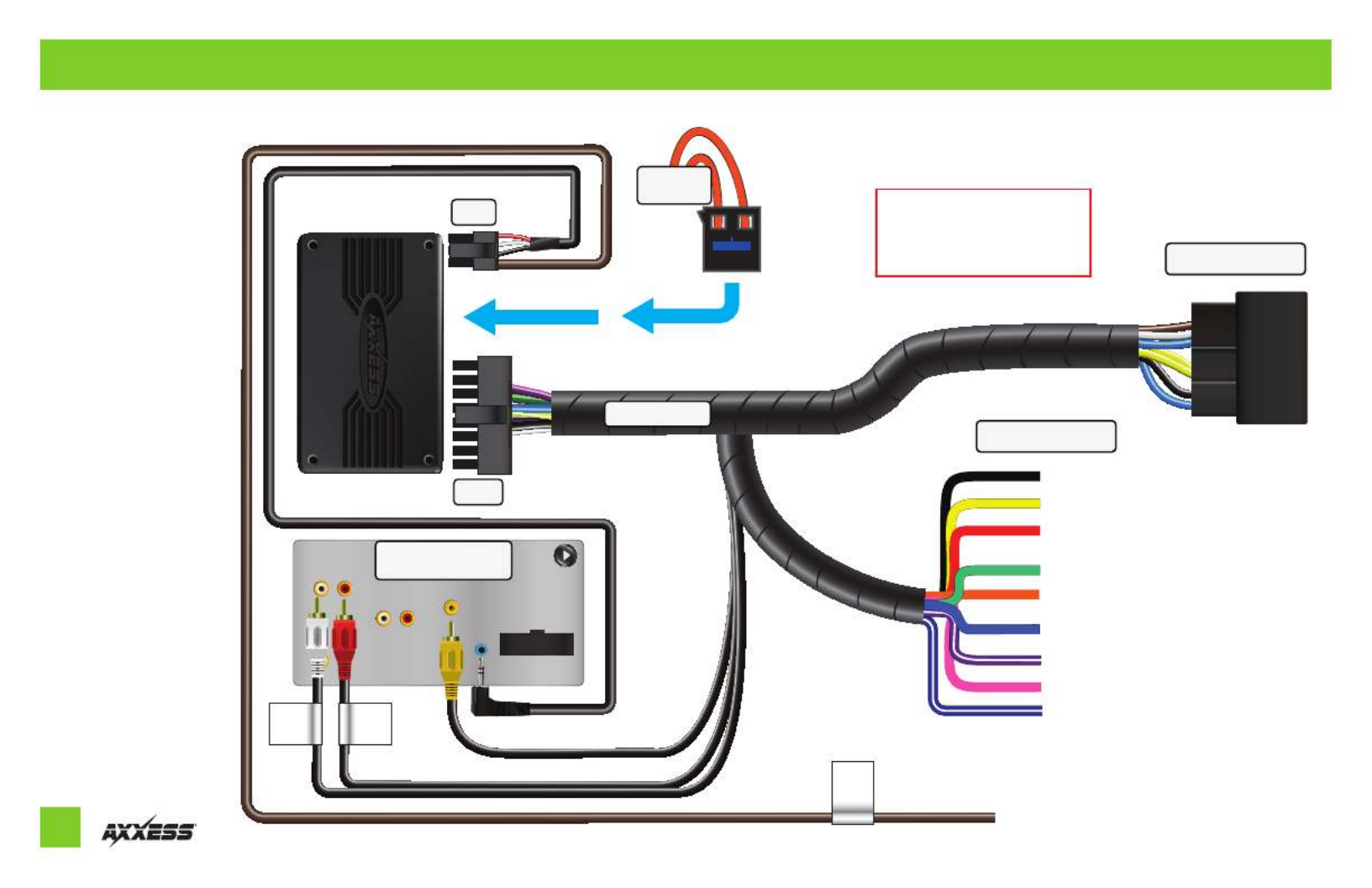

CONNECTIONS: BLK-AXDIS-PO72 HARNESS
Black - Ground wire
Yellow - Battery wire +
Red - Accessory power
Light Green - Brake
Orange - Illumination
Blue - AMP CON
Purple/White - Reverse
Pink - Speed
6-Pin
IR
Front
Right
Front
Left
Blue/White - ANT CON
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDIS-PO72
Brown - Wired SWC
“Kenwood/JVC”
Installing the Fiber Optic Cable:
1.
Remove the for the factory RadioOE Fiber Optic Cable
Factory Fiber
Optic Connector
Refer to
Installing the Fiber Optic Cable
section on the next page
Aftermarket Radio
(Your radio’s features may vary)
*BACK*
Front
Rear
Sub
AUX-IN
Rear View
SWC
