AXDSPL-HK4
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/15/24 INSTAXDSPL-HK4
Google Play Store Apple App Store
iOS 12.1 or higher
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Connections 2 ............................................................
Installation 3 .............................................................
AXDSPL-BT Installation...........................................4
AXDSPL-SP Installation...........................................5
Mobile App 6-7 .........................................................
Specifications /Speaker Assignment QR code......8
Hyundai/Kia DSP Interface With Amy Bypass
Harness
2017-Up
• Includes a DSP (Digital Signal Processor)
• 15 Band graphic EQ
• 4 inputs and 6 individually assignable outputs
• Independent equalization for front, rear, and sub
• Selectable low pass, band pass, and high pass filters
• Selectable crossover slopes; 12db, 24db, 36db, 48db
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains BlueLink/UVO voice prompts, with adjustable level
• Designed for SPDIF amplified models
• Includes an amp bypass harness
• Internal header port for adding interface modules
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable

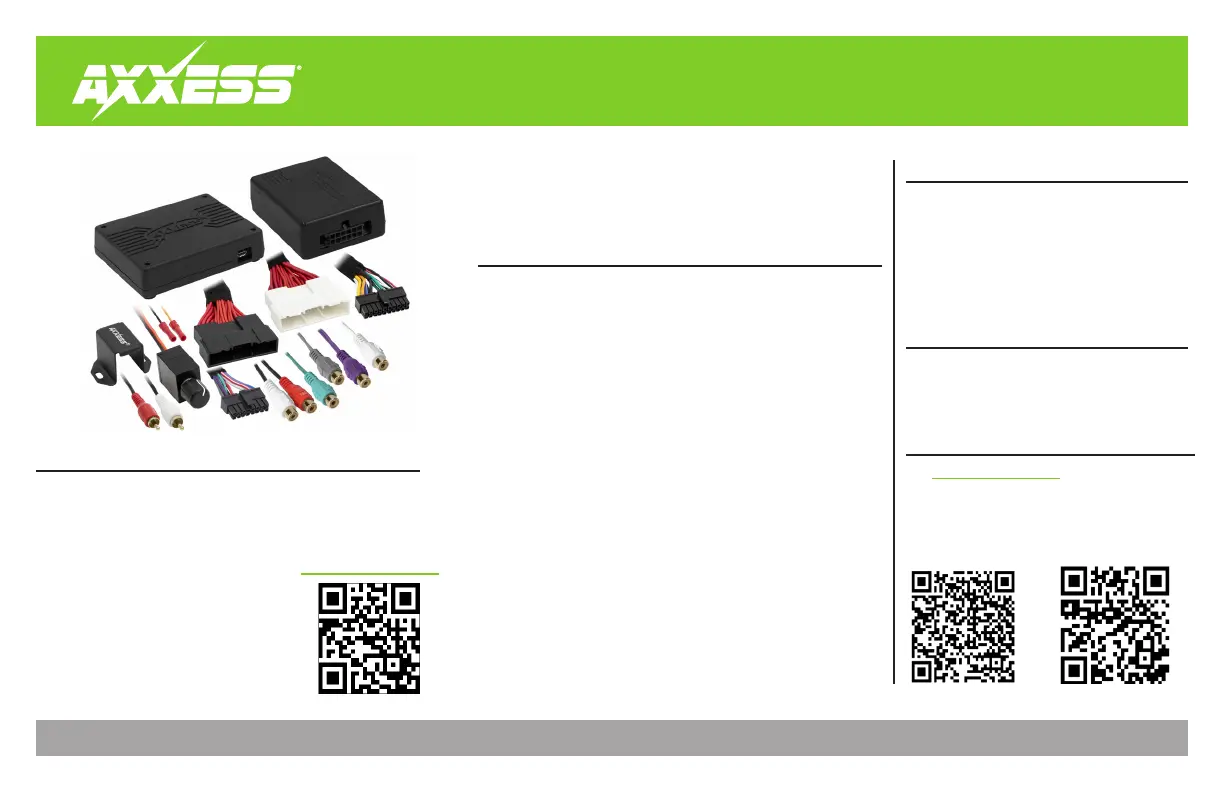

• AXDSPL-HK4 interface
• LD-DSP-HYKIA4 harness
• Amplifier bypass harness (integrated)
• AXBK-1 (bass knob)
APPLICATIONS
Visit
AxxessInterfaces.com
for current application list
