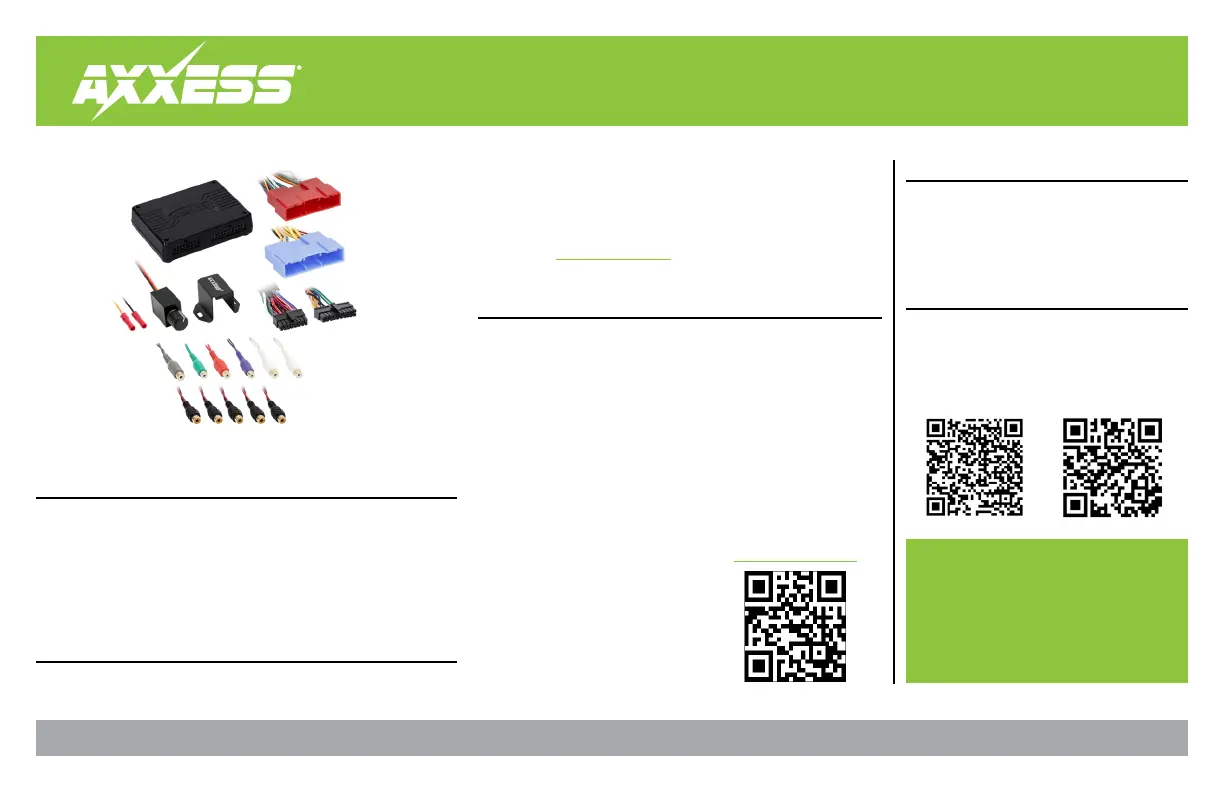

AXDSPX-HK5
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 2/7/25 INSTAXDSPX-HK5
Data Interface with Amplifier Bypass
Harness & DSP Fits Hyundai/Kia 2020-Up
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties • Tone generator
TABLE OF CONTENTS
Connections ............................................................2
Mobile App: Quick Setup ................................... 3-4
Specifications /Speaker Assignment QR code.....5
APPLICATIONS
Visit AxxessInterfaces.com for current application list
INTERFACE COMPONENTS
• AXDSP-X Interface
• AXBK-1 (Bass Knob)
• LD-DSP-HYKIA5 harness
• Amplifier bypass harness (integrated)
www.MetraOnline.com
MetraOnline.com may be used to assist
with dash assembly instructions. Simply
enter your Year, Make, Model vehicle
into the Vehicle Fit Guide and look for the
Dash Kit Installation Instructions.
• Designed for SPDIF amplified sound systems
• Includes an amplifier bypass harness
• Retains BlueLink
®
/UVO voice prompts
• All chimes/voice prompts go through the aftermarket amp
• Micro-B USB updatable
Google Play Store Apple App Store
iOS 12.1 or higher
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications.
Android 9 or higher
2
AXDSP-X
An SPDT relay, Metra part number
E-123, must be used if the amp turn-on
current of all amps exceed 1-amp.
SUB
Factory Amp
(must be removed)
RCA Jacks
(sold separately)
AXBK-1
Blue/White - Amp Turn-On Wire
Red/White - Do Not Use
Additionable Outputs
For Optional Amps
Update Port
CH 6
CH 10
CH 7
CH 8
CH 9
Factory Amp Harness
AXBK-1
LD-DSP-HYKIA5
LD-DSP-HYKIA5
Note:
Refer to wiring
Amplified Legend Types
chart on page 5
Note:
Refer to wiring
Amplified Legend Types
chart on page 5
Note:
Refer to wiring
Amplified Legend Types
chart on page 5

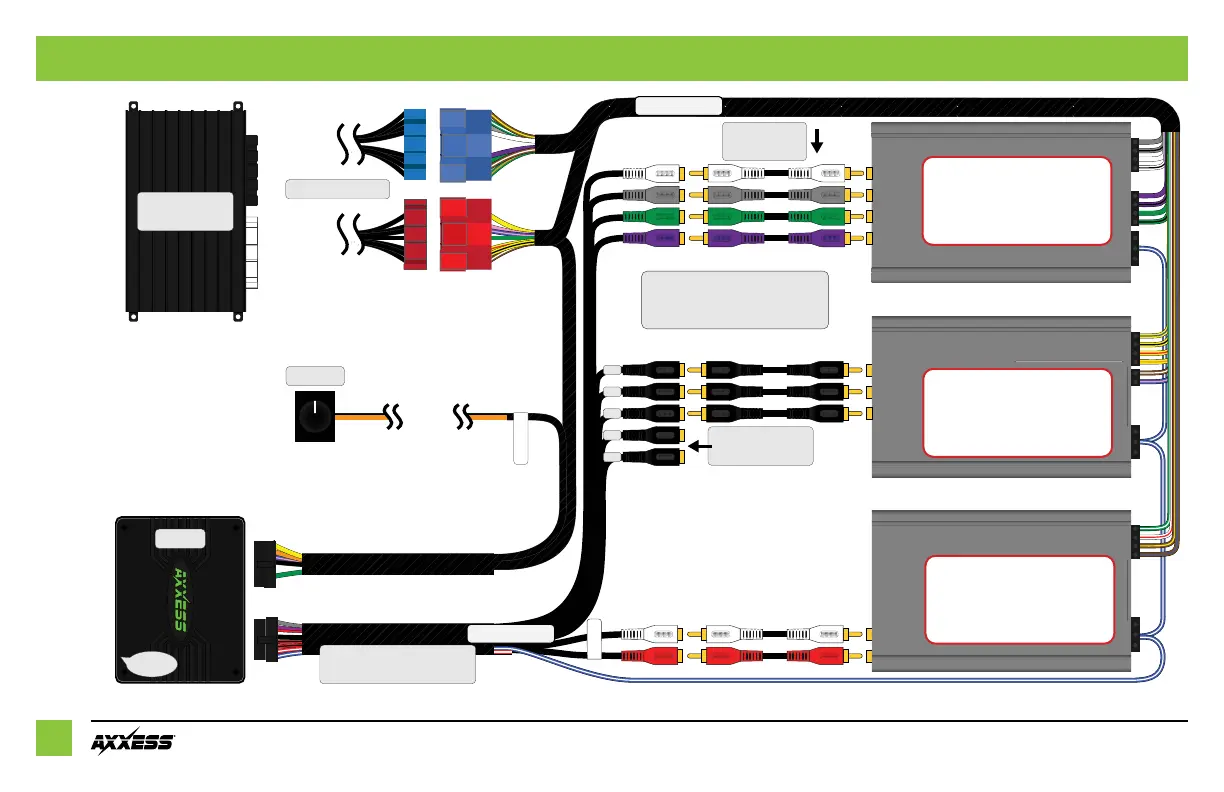

CONNECTIONS: LD-DSP-HYKIA5
Note: Refer to wiring
Amplified Legend Types
chart on page 5
Please see Speaker
Assignment QR Code located
on page 5 of instructions
Please see Speaker
Assignment QR Code located
on page 5 of instructions
Please see Speaker
Assignment QR Code located
on page 5 of instructions
