AXESS AXDSPX-TY1 Manual

AXESS Processor AXDSPX-TY1

Læs gratis den danske manual til AXESS AXDSPX-TY1 (16 sider) i kategorien Processor. Denne vejledning er vurderet som hjælpsom af 3 personer og har en gennemsnitlig bedømmelse på 3.7 stjerner ud af 2 anmeldelser. Har du et spørgsmål om AXESS AXDSPX-TY1, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/16

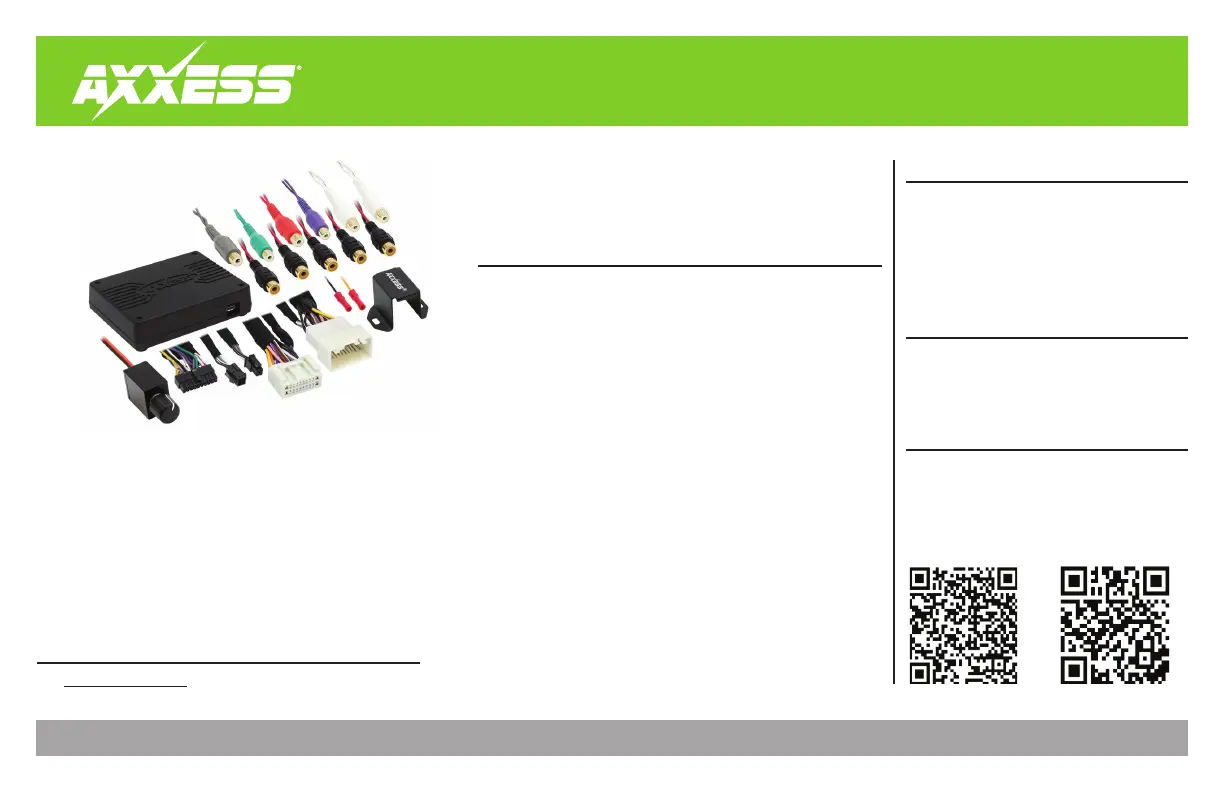

AXDSPX-TY1

INSTALLATION INSTRUCTIONS

Google Play Store

Apple App Store

iOS 12.1 or higher

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

TABLE OF CONTENTS

Installation Options ...............................................2

Installation .............................................................2

Connections ........................................................3-4

Mobile App ........................................................5-13

Specifications ....................................................... 14

Toyota DSP Interface With Pre-Wired Harness

2010-Up

• Designed for amplified models

• Includes a DSP (Digital Signal Processor)

• 31 Band graphic EQ

• 10 individually assignable outputs

• Independent equalization on each of the 10 outputs

• Independent high pass, low pass, and bandpass filters

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• Easy behind the radio installation with pre-wired harness

• Bass knob included for level control of subwoofer amp

• Settings adjusted via Bluetooth

in a smart device application (tablet

or mobile phone), compatible with both Android and Apple devices

• Read, write, and store configurations for future recall

• Password protect feature available in the mobile app

• Micro-B USB updatable

• AXDSPX-TY1 interface

• AXDSPX-TY1 interface harness

• AXDSPX-TY1 vehicle T-harness • Bass knob

APPLICATIONS

Visit axxessinterfaces.com for current application list

Adding a sub to a factory system:

This feature offers the ability to add a subwoofer to a factory system. (refer to page 3)

Adding a full-range amp & sub to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system

†

. (refer to page 4)

†

The factory amp must be bypassed/unplugged.

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Remove the factory radio †, then unplug all connectors.

2. Install the AX-DSPX-TY1 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. Plug the AX-DSPX-TY1 vehicle T-harness to the AX-DSPX-TY1 interface.

4. Plug the AX-DSPX-TY1 interface harness to the AX-DSPX-TY1 interface.

Download and install the AXDSP-X app from the Google Play Store or Apple App Store.

6. Open the app then select the Bluetooth Connection tab. Follow the instructions to

pair the mobile device to the interface. Refer to page 6 for more information.

7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down ‡

button to save the configuration. Refer to page 7 for more information.

8. Connect the amp turn-on wire.

9. Adjust the settings in the app as desired. Press the Lock Down ‡ button to save any

new configurations.

† Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle,

disassembly will be within those instructions.

‡ Anytime the interface is locked down the key must be cycled off then back on

INSTALLATION OPTIONS I N S TALLATIO N
